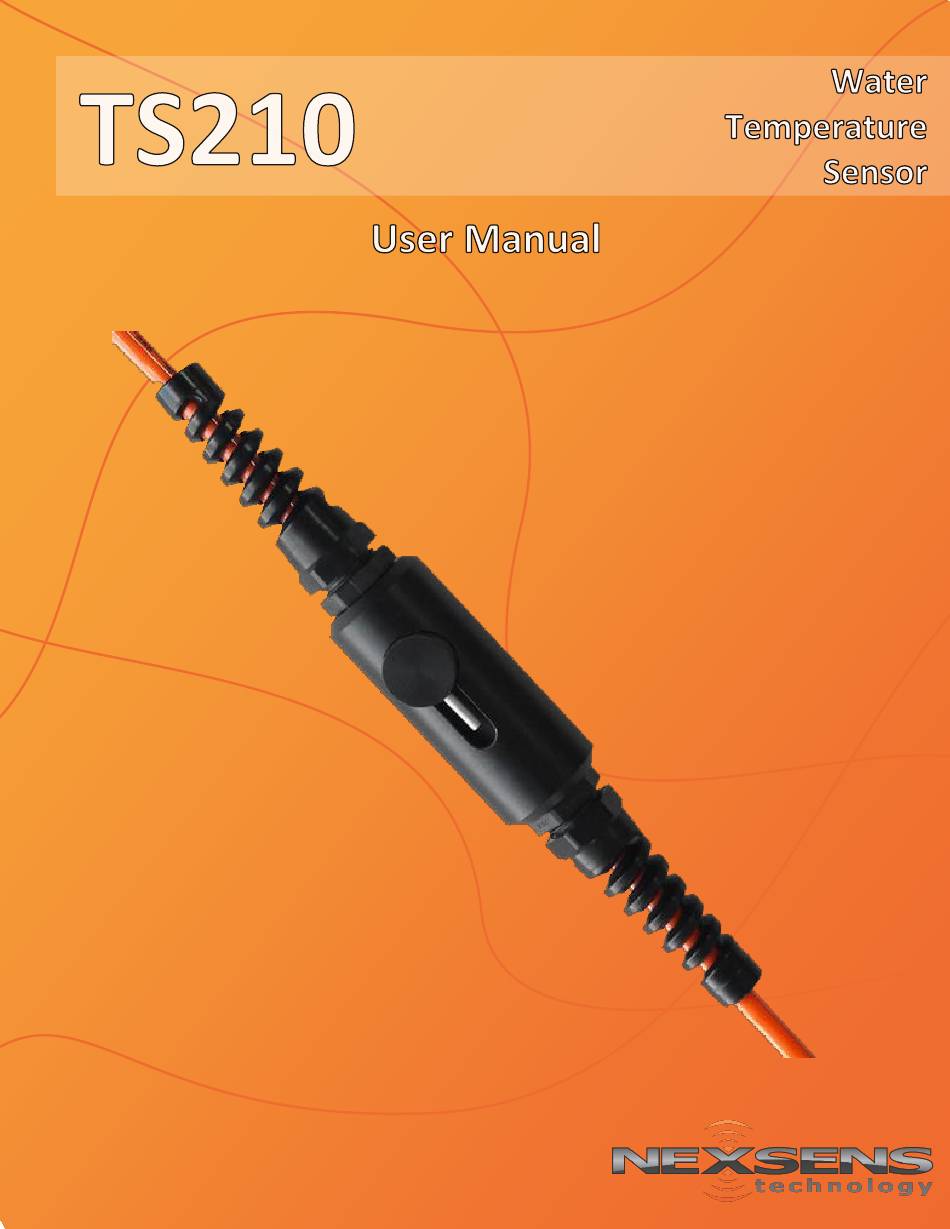

- Page 1 Title Page...
- Page 2 About NexSens NexSens is a US-based company specializing in the design and manufacture of real-time environmental measurement systems. Recent data logger, sensor and web developments simplify collecting and sharing project data. Environmental measurement systems are constructed with standard components. Data is transmitted by WiFi, cellular, satellite or radio and shared on a real-time datacenter.
-
Page 3: Table Of Contents
Table of Contents Overview ..............1 What’s Included ............2 Common Accessories ..................2 Specifications ..............3 General ......................3 Temperature ....................3 Getting Started .............4 Multi-Point Temperature String Assembly ........... 4 Connecting to an SDL500 Data Logger............6 Connecting to an iSIC Data Logger ..............7 Connecting to an RS485 Modbus RTU Device .......... -
Page 4: Overview
4-28 VDC for operation on a 12 or 24 VDC power supply. TS210 strings are available standard with 1m spacing or at custom intervals to meet project requirements. Cable lengths are available up to 1,219 meters (4,000 feet) with a maximum 250 nodes. -
Page 5: What's Included
Each TS210 Water Temperature Sensor includes the UW underwater plugs required for temperature string terminations and O-rings for preventing leakage at these connections. Common Accessories Table 1: Accessories commonly used with TS210 temperature sensors NOTE Part Number Description Details TS210 sensors use... -
Page 6: Specifications
Specifications Specifications General Table 2: NexSens TS210 temperature sensor general specifications Length 3.0 in (76.2 mm) Diameter (OD) 1.4 in (35.6 mm) Weight 0.3 lbs Acetal Copolymer Housing Polyvinylchloride (PVC) Operating Temp Range 0 to 45ºC Operating Depth Range 4000 ft... -
Page 7: Getting Started
Parameters list. TS210 strings typically begin with Temp00 as the All o-rings must be clean and dry before first node. Click Add to add the number of TS210 devices that are being used to secure included in the string. Enter the correct Modbus address of the first watertight connections. - Page 8 Getting Started Figure 3: Typical temperature data display in iChart...
-
Page 9: Connecting To An Sdl500 Data Logger
T, P1, P0, A and D. Figure 4: SDL500 sensor bulkhead TS210 sensors and strings can be connected to Ports P0, P1, T, or D. It is recommended to connect to port P1 or T to allow for power to be removed from the TS210 sensors between readings. -
Page 10: Connecting To An Isic Data Logger
Getting Started Connecting to an iSIC Data Logger TS210 sensors can be connected to any iSIC data logger using a UW receptacle to flying lead cable assembly. Figure 5: UW Receptacle to Flying Lead Cable First, plug the temperature string into the adapter’s UW connector. -
Page 11: Connecting To An Rs485 Modbus Rtu Device
Getting Started Connecting to an RS485 Modbus RTU Device TS210 devices can also be connected to any device capable of reading RS485 Modbus RTU by utilizing a UW-R FL Cable. UW-R FL Cable Connections The following shows the necessary connections for the TS210 using a UW-R FL cable. -
Page 12: Sensor Information
Changes the Modbus register Address of the TS210 to the send data Ex. FB, 10, 10, 00, 00, 01, 02, 00, 05, 0D, 36 Changes a TS210 at the universal Modbus address of 251 to a new address of 5. -
Page 13: Universal Address
Getting Started Universal Address The TS210 is programmed such that any sensor will respond to Modbus address 251. This is implemented for the event that the sensor’s current address is unknown. This address should only be queried with one sensor connected to the data line. If more than one sensor is connected, both will respond and a bad message is likely. -
Page 14: Pre-Deployment Check
Getting Started Pre-Deployment Check It is recommended that field deployments be carefully planned, and it is best to completely configure the system on a lab bench and test it for a period of time prior to taking it to the field. This will ensure a successful deployment and quality data collection. - Page 15 With the temperature string laid out on a flat surface, secure each TS210 to the sensor mooring line using TS-Clamp sensor mooring clamps. Figure 9: Stainless steel mooring line...
-
Page 16: Connector Signals
Connector Signals TS210 sensors require four signals for operation: +5-16 VDC, Ground, RS485A and RS485B. The sensorBUS protocol used by TS210 strings can also carry 5VDC, SDI-12 and RS-232 signals, which are available for connecting other sensors along a sensor string. -
Page 17: Maintenance
Maintenance Maintenance There is very little maintenance required for TS210 temperature strings because they are designed for long-term deployments in submersible applications. Cleaning Any bio-fouling that accumulates on T-Node temperature strings during deployments should be cleaned using a soft cloth or soft- bristled brush along with soap and water. -
Page 18: Troubleshooting
Troubleshooting Troubleshooting Follow the procedure below to isolate and resolve sensor interface problems. Table 9: TS210 temperature sensor troubleshooting guide Symptom Possible Cause Corrective Action Temperature data is Leakage into a Check each displayed as a value connector underwater between -99999 and... -
Page 19: Warranty And Service
This warranty is limited to the replacement or repair of such defects, without charge, when the product is returned to NexSens Technology, Inc. Damage due to accidents, misuse, tampering, lack of reasonable care, loss of parts, failure to perform prescribed maintenance, or accidents of nature are not covered.
