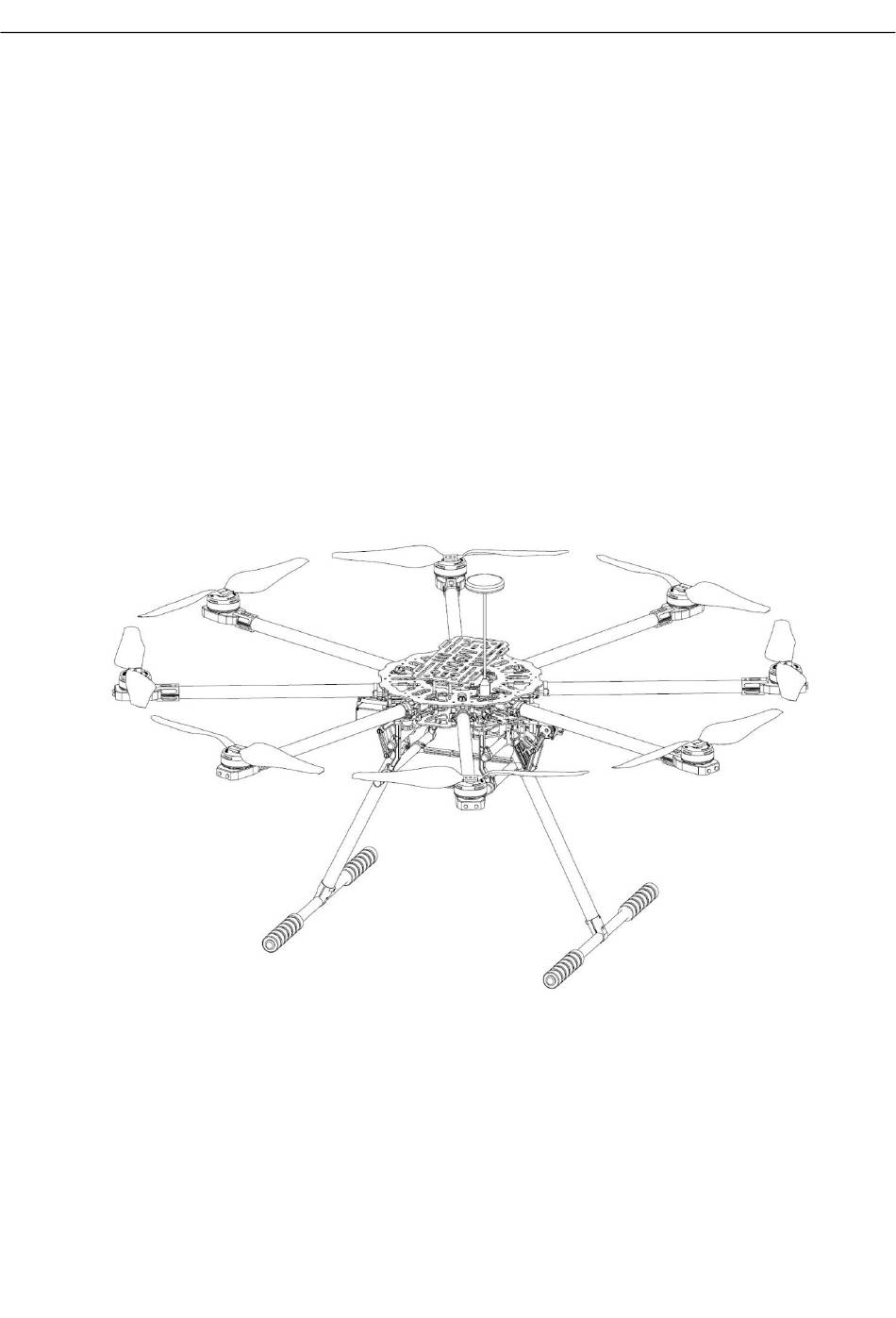

  • Page 1 SkyhawkRC user manual F900 V1.0 2014-07-28 http://www.SkyhawkRC.com...
  • Page 2: Operation Requirements

    Declaration Thanks for using SkyhawkRC F900 aircraft. Please read manual carefully before operation, it will help you understand the product deeply and make sure to operate it safely and correctly. Please operate the product according to manual strictly, all product has finished outdoor tests and adjustment to ensure user can operate it quickly and successfully while received.
  • Page 3 Other Characteristic: 1). F/S (Auto back landing while losing signal), black box. 2). LED indicator 3). Fuselage direction LED indicator 4). Remote control/android mobile GCS/PC GCS 5). Android mobile/PC GCS parameters adjustment. 6). Common receiver/ S-BUS receiver Accessories Details...
  • Page 4 1 PC Aluminum case Assemble and Flight Notice The propellers of F900 aircraft have huge damage during working, please take care of safety at all times to avoid accident harm and loss. Assemble Notice 1). Fuselage moving parts are marked as red and safety sign, while holding these parts, please note their moving scope to avoid injury.
  • Page 5: Landing Gear Installation

    Please pay attention to their movement scope to avoid clipping fingers. 2) F900 adopts “X” type structure, the front is two red motor base. To put fuselage on landing gear horizontally and insert quick release key and turn 90 degree in clockwise, it will be locked automatically.
  • Page 6: Propellers Installation

    M2, M4, M6 and M8 rotate in clockwise direction. Power Distribution Unit(PDU) F900 fuselage integrates XT60 power distribution port can output two way power, its voltage is equal to battery voltage. Bottom two XT60 ports are for aircraft F900.
  • Page 7: Technical Parameters

    Power port can accept two batteries connected for aircraft. (to use two batteries connected together, the voltage of them must be same). Gimbal Mount Size Technical Parameters Fuselage Diagonal Motor Wheelbase Arm Length Center Board Diameter Max Spread Size...
  • Page 8: Flight Mode

    Landing Gear Size(gear down) 348 x 400 x 350 Landing Gear Weight Power Motor C3510 KV580 Propeller 1355 3K carbon fiber 3~6S 25A, refresh rate 30~450Hz, driver frequency 8KHz/24KHz Flight Aircraft Weight 3.35Kg Take Off Weight ≤7.7Kg Battery LiPo 6S 10000mAh~20000mAh 10~25C Flight Time(no payload) 31min (6S 15000mAh LiPo take off weight 5.05Kg)
  • Page 9: Led Indicator

    F900 aircraft has 4 flight modes, they realize switch through channel 5 and channel 6 on remote control. Flight Mode Manual X (any position) Auto Hovering Auto Navigation Auto Back Landing Note: Manual flight mode is the highest priority. User can switch to manual control mode under any other modes.
  • Page 10 ●●● ●● ● during during ● ●● ● ●● State disappear flight flight GPS 7 GPS no GPS 5 GPS 6 Severe satellit Working User User satelli satellite satellit es or battery Mode operate hovering operate...
  • Page 11: Preparations Before Flight

    GPS mode, CH6 switch to “2” , flight control will control aircraft return home and land. During return, it is not controlled by remote control, while it returns to the height of landing point, it will land slowly, at this time, user can adjust its landing point by remote control in order to find a more suitable landing point and throttle controlled by flight control during landing.
  • Page 12: Magnetic Compass Calibration

    Magnetic Compass Calibration F900 aircraft has made magnetic compass calibration before delivery, in general, it is unnecessary to make calibration again. http://www.SkyhawkRC.com...
  • Page 13 (1) Please make calibration outdoor, do not operate it inside building, nearby vehicle environment or magnetic environment. (2) Other occasions for re-calibration: the position of electric components has moved or auto hovering performance is not good. There are 3 steps to make calibration: make horizontal calibration firstly and later vertical calibration and finally save compass data.
  • Page 14 Step 8: ground station will switch to “Control” interface automatically, at this time, flight control will save magnetic compass data, during the process, purple LED is on(2seconds flash and 1 second off), wait a few seconds until purple light goes out and will display 1 blue circle and 1 red circle, the calibration is completed.
  • Page 15 4). click “Tool” and “Default Tool” button. Step 2: upload and verify waypoints 1). click “Tool”, “Upload Waypoints” and “OK” buttons. 2). check if all waypoints change from orange to blue and confirm if they are uploaded successfully(it indicates that all waypoints are uploaded successfully while changing to blue color, if not, please re-upload waypoints until all of them change to blue color).
  • Page 16 . To cancel auto navigation, user can switch CH5 of remote control to “0” (manual mode) or switch CH6 to “0” (auto hovering mode).
