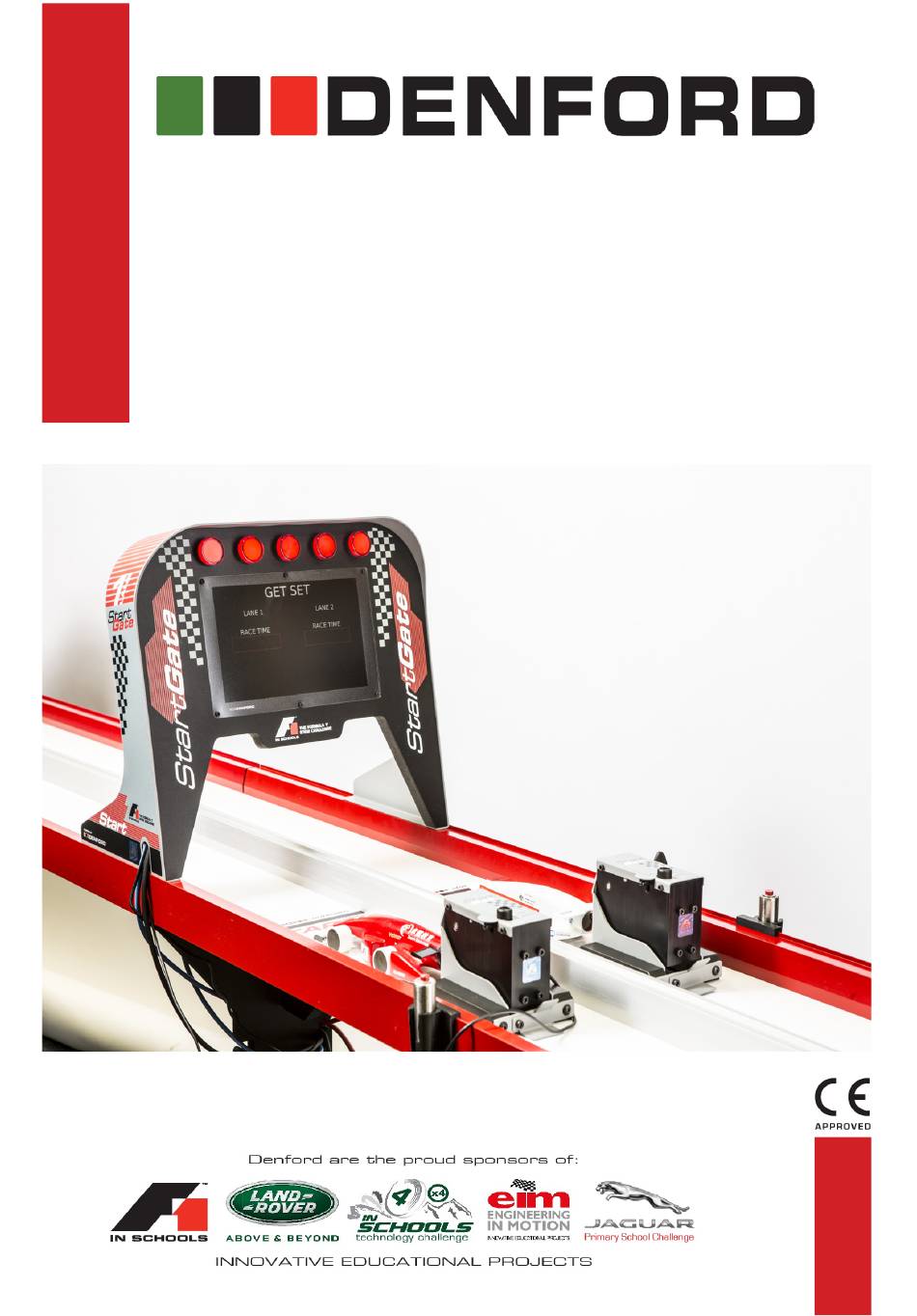

- Page 1 User Guide Denford F1 Race Track...
-
Page 2: Table Of Contents
2: Contact Information .....................3 3: Warning Notices ....................4 4: Unpacking the Track ....................5 5: Identifying Track Parts ..................11 6: Assembling the Track ..................13 7: Safe Operation of the Track .................21 Denford F1 Race Track Spares ................22 On-Line Technical Forum Information ..............23 Page 2... -
Page 3: 2: Contact Information
Telephone: General Enquiries 01484 728000 Fax: 01484 728100 E-mail: For sales enquiries contact, sales@denford.co.uk For machine servicing enquiries contact, service@denford.co.uk For customer services, contact customerservices@denford.co.uk Technical Support: Visit Denford Technical Forum at www.denfordata.com/bb Telephone Denford Customer Services: 01484 728000 E-mail: customerservices@denford.co.uk Monday to Friday 8.30am - 4.30pm GMT... -
Page 4: 3: Warning Notices
Denford Limited cannot accept responsibility for any damage, injury and/or loss that may occur through incorrect electrical practices. Safe operation of the Denford F1 Race Track and Race System is outlined on page 18 of this booklet. -
Page 5: 4: Unpacking The Track
4: Unpacking / Re-packing the track The Denford Race Track is supplied in cardboard packaging as standard. A flight case is available as an accessory. The cardboard packaging consists three cardboard boxes, the two long cardboard boxes house the track sections and the smaller box contains the track legs and leg braces. - Page 6 4: Unpacking / Re-packing the track Slide out the track sections noting that they are held together at both ends with rubber bands to stop them moving in transit. Retain the rubber bands for re-packing the track. When unpacking the track It is important to take care not to damage the cardboard boxes or the track section sleeves as these may be required to re-pack the track after use.
- Page 7 4: Unpacking / Re-packing the track cont: If the track sections are packed in the boxes protected and separated by foam spacers, carefully lift out the track sections removing and saving the foam spacers for use when repacking the track. Page 7...
- Page 8 4: Unpacking / Re-packing the track cont: When re-packing track sections into the cardboard box it is important to carefully position the foam spacers to avoid damage to the track sections. To position the foam spacers (shown in purple) and track sections correctly please refer to the diagram below. Four spacers are positioned either end of the track sections no less than 500mm from the ends of the sections as shown below to avoid fowling the track location and positioning blocks located under the track sections.
- Page 9 4: Unpacking / Re-packing the track cont: When a track is supplied in a flight case the track sections, legs and braces are all packed in the one case. The track sections are packed horizontally, supported and protected by foam spacers. The legs and leg braces are packed vertically in a separate padded compartment It is important to remove the track sections carefully and place the track spacers back in the case for re-packing the tack after use.
- Page 10 4: Unpacking / Re-packing the track cont: When re-packing track sections into a flight case it is important to carefully position the foam spacers to avoid damage to the track sections. To position the foam spacers (shown in purple) and track sections correctly please refer to the diagram below. Six spacers are positioned at either end of the track sections no less than 500mm from the ends of the sections as shown to avoid fowling the track location and positioning blocks located under the track sections.
-
Page 11: 5: Identifying Track Parts
5: Identifying Track Parts When the Denford Race Track is unpacked you should have the following equipment listed below: Track Sections as follows: 1 - Off Start Section 9 - Off Mid Sections 1 - Off Finish Section 12 - Off Track Support Leg 14 - Off Leg Support Brace 10 - Off Track Connection Thumb Screws, 9-Off 30mm long 1-Off 20mm long. - Page 12 5: Identifying Track Parts Page 12...
-
Page 13: 6: Assembling The Track
6: Assembling the Track No tools are required to assemble the track. The track must be assembled by two or more people. It is advisable to have two people to support the sections whilst a third person can help align the mating parts. Care must be taken when lifting and positioning the track sections otherwise damage can occur to the track. - Page 14 6: Assembling the Track cont: Locate the Start section of the track. This can be clearly identified by the two circular discs mounted to the underside Take a track support leg and 2 cross braces and assemble the first leg. Ensure the leg has the wider section on the floor and the cable management slots are correctly positioned.
- Page 15 6: Assembling the Track cont: Align the legs so that they are spaced to line up with the discs on the underside of the track. Lift the start section onto the Legs and locate the round discs in the cup created by the top of the Leg and the cross brace.
- Page 16 6: Assembling the Track cont: Lift the Mid section up and place the central rail onto the start section of track, then place the other end onto the support leg. Take care to ensure the leg is correctly positioned with the cable slots at the top and the align- ment tongue fits into the alignment slot on the leg.
- Page 17 6: Assembling the Track cont: Once the sections are pushed together check the alignment of the support leg as this will ensure the faces of the track sections are flush. Page 17...
- Page 18 6: Assembling the Track cont: As each section of track is assembled to the next the track sections should be secured together by inserting the thumb clamping screws provided from the underside of the track. To secure the Start Section to the first Mid Section of track the thumb screw is inserted though a pre drilled hole in the track board as shown below.
- Page 19 6: Assembling the Track cont: To secure the remaining sections of track together use the longer thumb screws which are inserted though the pre drilled holes in the track positioning blocks as shown below. Note: The finish section of track is the last section to be fitted and can be identified as the aluminium sections finish flush with the end of the track and the Emitter and receiver circuits are mounted at the finish line.
- Page 20 6: Assembling the Track cont: When the track is fully assembled the guide lines can be fitted. These are nylon cords to which the cars are attached prior to racing. On both the start and finish sections there are small screws near the edge of the track boards as shown below to which the cord is attached with a loop.
-
Page 21: 7: Safe Operation Of The Track
Denford Ltd is not responsible for bodily injury or property damage resulting from mis- use of its products or failure to observe or implement proper safety guidelines. a. The Denford Race Track & Race System should only be operated by adults or students under adult supervision. -
Page 22: Denford F1 Race Track Spares
Denford F1 Race Track Spare Parts: A range of spare parts is available for the Denford F1 Race Track as follows, please contact Denford Ltd for current pricing: Track Sections: Part No. Start Section ............F1RT/0201S Mid Section ............F1RT/0201M Finish Section ............. -
Page 23: On-Line Technical Forum Information
Page 23...
