Summary of Contents for Zurich RS-II

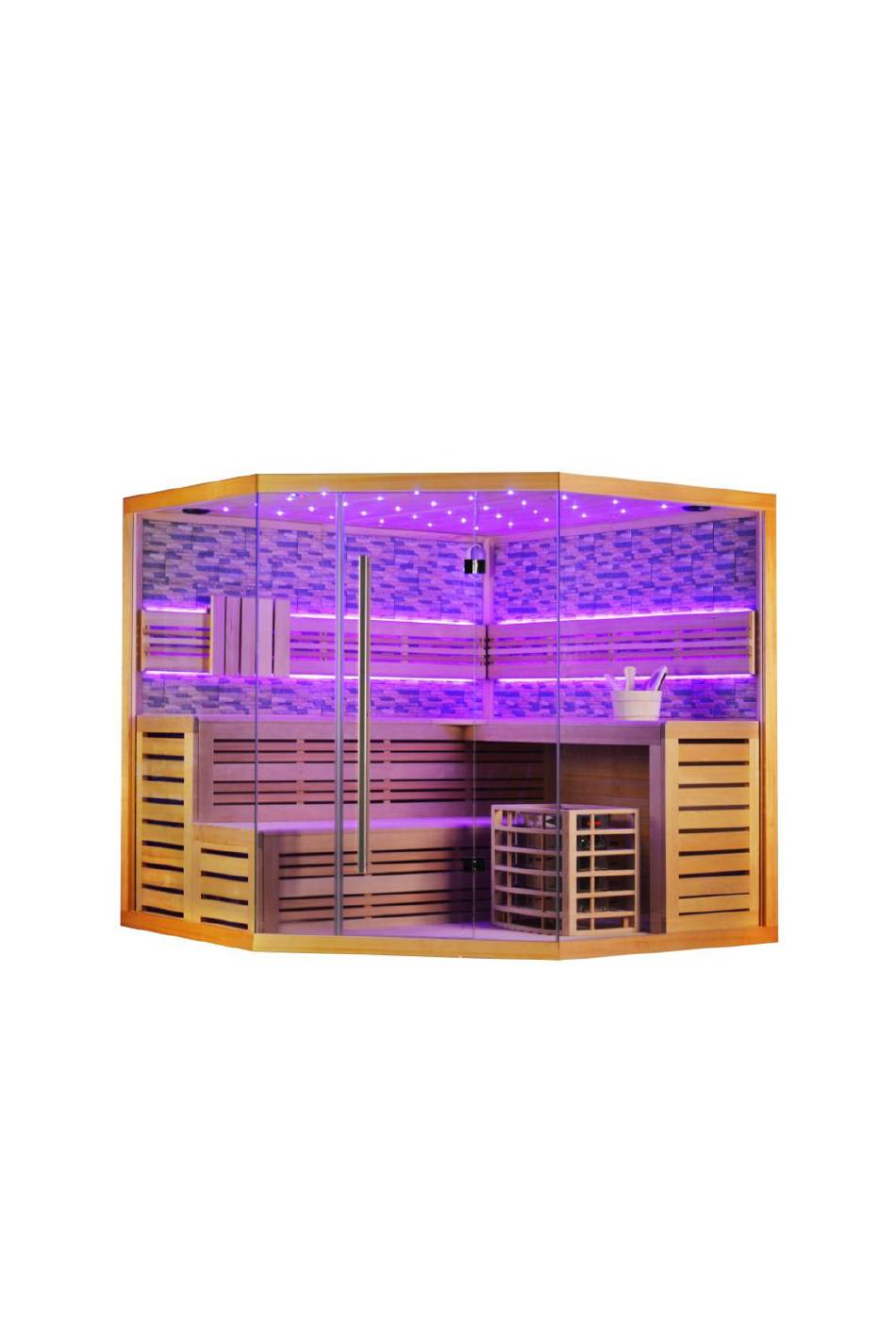

- Page 1 Installation Manual Traditional Sauna MODEL: Zürich Oven heater: 9000W Thank you for choosing our Sauna!
- Page 2 Welcome Thank you for purchasing our sauna products, we congratulate you on your new path to better health. We are striving to become the best infrared sauna supplier in the world; our list of consumers increase daily and we believe your success is our success. We attribute this growth and success entirely to our customer satisfaction, the recognized health benefits, and the quality of our workmanship.
- Page 3 Introduction We congratulate you on your new path to better health! Thousands of users enjoy the benefits of sauna every day. Now you can enjoy the great benefits of sauna heat within the privacy of your own home. Please read this manual carefully and thoroughly before using an sauna for the first time. We recommend for you to keep this manual for future reference.
-
Page 4: Installation Requirements
Installation Requirements 1. Do not plug any other appliances into the outlet with your sauna. 2. Install the sauna on a completely level floor. 3. Do not spray the exterior with water. 4. Do not store flammable objects or chemical substances near the sauna. 5. - Page 5 Assembly Instructions Assembly of the sauna requires at least 3 adults to complete. Please read the instructions thoroughly before and during assembly to ensure proper installation of the sauna. <1> LOCATION OF SAUNA When you find a good location for your sauna, please notice the following. A.
- Page 6 <3> INSTALL THE RIGHT BACK PANEL Connect the first piece right back panel to the left back panel with the outside buckles. And then connect the second piece right back panel to the first right back panel also with the outside buckles. <4>...
- Page 7 <5> INSTALL THE FRONT PANEL Connect the bottom and top beam of front panel to the left and right side panels with the dowels and metal connectors. EXTREME CAUTION NEEDED TO HOLD THE GLASS.
- Page 8 <6> PLACE THE BOTTOM PANEL Place the bottom panel on the floor inside the sauna room and make sure its front side touch the front panel closely. <7> INSTALL THE LEFT SIDE SUPPORTER Install the left side supporter and screw it to the left back panel.
- Page 9 <8> INSTALL THE LOWER AND LOWER BENCHB BAFFLE Install the lower and upper bench baffles and screw them to the left side supporter and the right back panel.
- Page 10 <9> INSTALL THE LOWER BENCH Place the lower bench onto the lower bench baffle and make sure they are connector by the dowels at right place. <10> INSTALL THE RIGHT SIDE SUPPORTER Install the right side supporter and screw it to the right back panel with provided screws.
- Page 11 <11> INSTALL THE RIGHT SIDE BENCH Place the right side bench onto the right side supporter and make sure that they are connected at right place. Finally connect the right side bench to the upper bench baffle with the provided screw and dowels.
- Page 12 <13> INSTALL THE FAN-SHAPE BENCH Place the fan-shape bench onto the upper baffle. <14> INSTALL THE BACKREST Connect the wiring of stripe lights firstly. Install the backrests and screw them to back panels. Please pay more attention the wiring of LED stripe light.
- Page 13 <15> INSTALL THE WALL LIGHT Pull the wiring of wall light through the hole and install it to the wall with provided screws.
- Page 14 <16> INSTALL THE ROOF PANEL Connect the two pieces roof panels together with the provided screws. Then place the whole piece roof panel onto the ready placed walls.
- Page 15 <17> CONNECT THE WIRING 1. Connect the wiring of LED stripe light and wall light and LED star light. Please pay more attention the wiring of LED stripe light. The arrow toward the arrow. <18> INSTALL THE DOOR HANDLE Make sure the parts of handle are in order. Install the door handle with the provided screws and tool. Put the screw through the hole of inside door handle, place the inside door handle on the glass door.
- Page 16 <18> INSTALL THE WOODEN FRAME FOR STOVE Install the wooden frame with provided screws. <19> PUT THE STOVE AND SMALL DESK INTO THE SAUNA ROOM Put the small desk in the sauna room. And the put the wooden frame outside the small desk. At last put the stove heater onto the small desk.
- Page 17 <20> ENJOY YOUR SAUNA! Plug in the power cord into the wall outlet and turn on music, light, grab some towels, a glass of water and step into your sauna and enjoy the benefits of the sauna! You can turn on/off the music and light by press the button at anytime. Search the Bluetooth name “HY”...
-
Page 18: Operating Recommendations
Operating Recommendations 1. Allow approximately 30 minutes for the sauna to warm up before beginning a session. 2. Recommend sauna session use is around 15-20 minutes. 3. The heaters automatically maintain the desired temperature inside the sauna 4. The ceiling vent can be opened at any time to for air circulation. 5. -
Page 19: Recommendations For Use
Recommendations for Use 1. To regulate the temperature inside the sauna during your session, use the roof vent or open the door to circulate the fresh air. 2. If you are still too warm, simply leave the door open until the air around you feel comfortable. 3. - Page 20 Safety Read all health and safety instructions. If in doubt as to the advisability of using your infrared sauna, consult with your physician prior to use. If you feel light-headed or heat exhaustion during session, leave the sauna immediately. 1. Read and follow all instructions carefully. 2.
-
Page 21: Important Safeguards For Your Sauna
Important Safeguards For Your Sauna 1. READ INSTRUCTIONS -- All the safety and operating instructions should be read before the sauna is installed and operated. 2. RETAIN INSTRUCTIONS -- The safety and operating instructions should be retained for future reference. 3. -
Page 22: Cleaning And Maintenance
Cleaning and Maintenance Before using your traditional sauna for the first time, clean the inside of the sauna with a damp cloth. If the smell of the sauna is strong at first, that is normal and please open the door while the sauna is working. The smell will diminish within a weekend. - Page 23 Warranty One-year limited warranty on electrical, heater and cabinetry. THIS UNIT IS MEANT FOR INDOOR USE ONLY. WARRANTY IS VOIDED IF OUR TRADITIONAL SAUNA IS PLACED IN AN OUTDOOR ENVIRONMENT. Limited warranty on our Infrared Sauna replacement parts. We warrant our products to be free of defects in material and workmanship.
- Page 24 30 days from the date of purchase: Model (Please circle one): RS-I 1-person sauna; RS-II 2-person sauna; RS-III 3-person sauna; RS-IV 4-person sauna First Name: _________________________ Last Name: __________________________...
