INSTALLATION INSTRUCTIONS - SOUND
INSULATING CABIN „MOBILE UNIT"

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOBILE UNIT and is the answer not in the manual?

Questions and answers

Summary of Contents for office bricks MOBILE UNIT

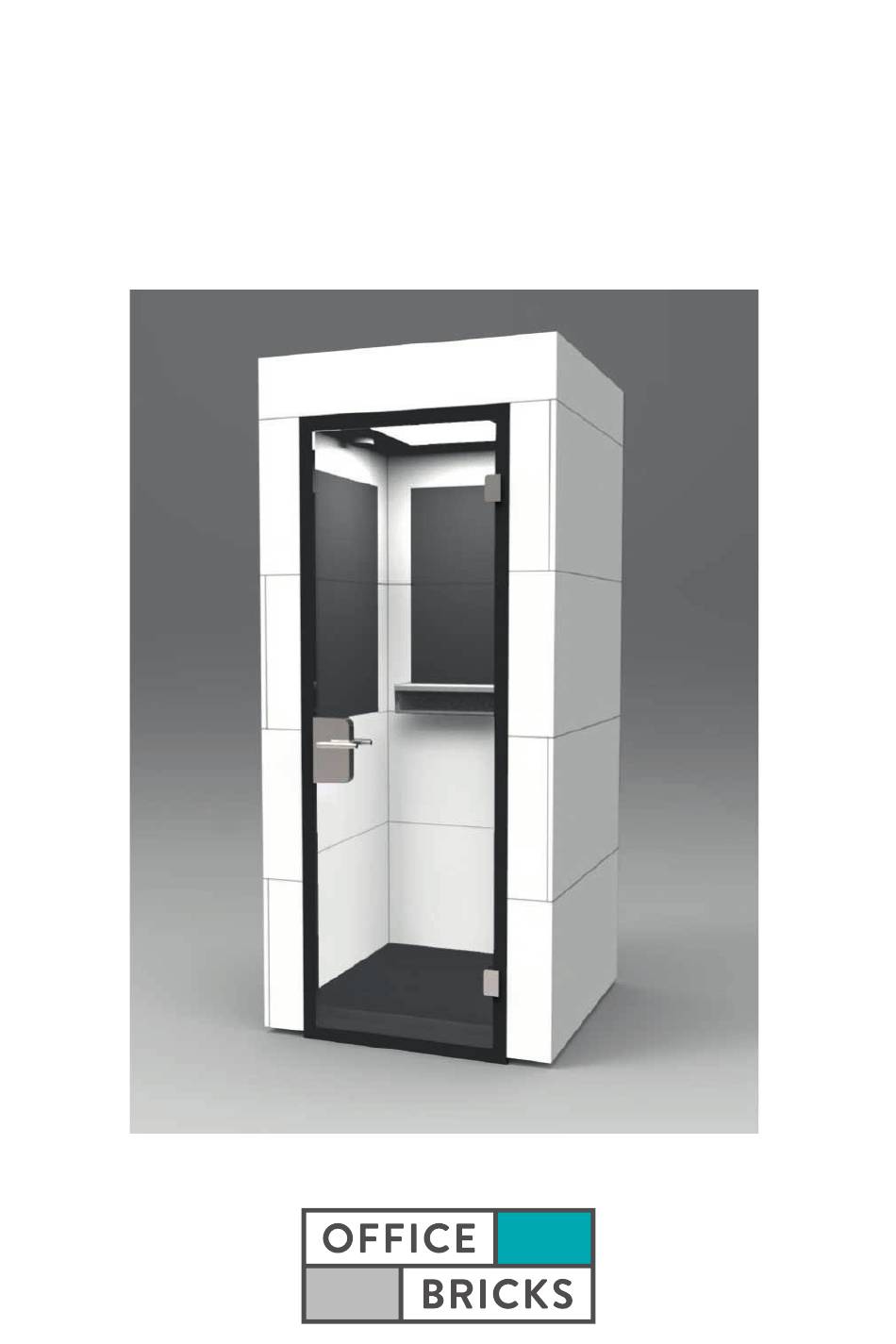

  • Page 1 INSTALLATION INSTRUCTIONS - SOUND INSULATING CABIN „MOBILE UNIT“...

  • Page 3: Table Of Contents

    CONTENT 1 . Scope of delivery ..............4 2. Installation preparation ............6 2.1 Work safety ................ 6 2.2 Tools ..................7 2.3 Location of installation / Technical Data ....8 2.4 Sorting the parts .............. 9 Setting up the cabin ............11 3.1 Scruing the floor plate with wedges ......11 4.

  • Page 4: Scope Of Delivery

    SCOPE OF DELIVERY 1 Scope of delivery The cabin parts are delivered in one wooden box.
  • Page 5 SCOPE OF DELIVERY Contents Wooden Boxes: 1 x Floor plate, MDF 38 mm 4 x Skirting board 20 x Bricks (rows A-D) 1 x Glass door with wooden frame 1 x Floor insulating plate, wood fibre 35 mm 1 x Floor plate, chipboard panel white, 16 mm 1 x Shelf with screws for attachment 1 x Roof plate, chipboard 19 mm white with LED Panel, motion detector and motion detector box...

  • Page 6: Installation Preparation

    INSTALLATION PREPARATION 2 Installation Preparation 2.1 Work safety During assembly, please wear suitable clothing and the required protective equipment, e. g. shoes with reinforced caps. Climbing aids or ladders will be needed. At least two fitters are required to set up the cabin. safely. CAUTION! Do not wear belt buckles Wear safetey shoes...

  • Page 7: Tools

    INSTALLATION PREPARATION 2.2 Necessary tools 2 wooden strips Hammer + Board Ladder Spirit level or laser levelling device 6 mm hex wrench Philips head (for door alignment) (to correct joint pattern if (for floor alignment) (to align the screwdriver (for Brick row D & roof) necessary) feet screws) (to fix the screws on the...

  • Page 8: Location Of Installation / Technical Data

    INSTALLATION PREPARATION When installing two or more cabins next to each other a mininum distance of 5 cm between the cabins has to be maintained. Technical data Weight of the cabin 350 kg / incl. packaging 500 kg Outer dimensions of assembled booth Height: 238 cm Width: 106 cm Depth: 106 cm Operating Voltage...

  • Page 9: Sorting The Parts

    INSTALLATION PREPARATION 2.4 Sorting the parts Before assembly, sort all parts in the order of assembly. Divide the components into the rows A-B-C-D, floor elements and ceiling elements. This preparation will help you to ensure quick and smooth assembly. When removing the parts from the packaging, make sure that all parts are intact and complete.
  • Page 10 INSTALLATION PREPARATION The electric brick and the fan must not be carried on the power cable. Do not place the inside of the ceiling panel on the floor. The motion detector positioned there is protruding, it could be damaged. Caution The motion detector must not be damaged!

  • Page 11: Setting Up The Cabin

    ASSEMBLY OF THE CABIN 3. Setting up the cabin 3.1 Scruing the floor plate with wooden wedges When positioning the floor plate make sure that the floor is not sloping Back Front The floor plate has to be secured with the wooden wedges to prevent it from roling away.

  • Page 12: Installation Of Walls And Door/Windows

    INSTALLATION OF WALLS AND DOOR/WINDOWS 4 Installation of walls and door 4.1 Instruction for brick connection The OFFICEBRICKS cabin can simply be stuck together, and is not glued or screwed. Push the bricks together from top to bottom. The brick construction consists of a tongue and groove system with additional connecting elements.
  • Page 13 INSTALLATION OF WALLS AND DOOR/WINDOWS Make sure that the bricks are straight and not askew in the connector system. Each brick is marked with a sticker on the top. It should always be read from the inside of the cabin.

  • Page 14: Row A And Glass Door

    INSTALLATION OF WALLS AND DOOR/WINDOWS 4.2 Row A, glass door Start by setting the bricks on the rear and right side (A4, A5, A6). Back Front The door must be carried by two people for safety reasons. Important note: Avoid hard elements on clothing such as belt buckles, rivets, protruding zippers, etc.
  • Page 15 INSTALLATION OF WALLS AND DOOR/WINDOWS The door is secured by adhesive safety-strips attached to the door frame. Do not remove the adhesive strips until level D has been installed, otherwise additional securing of the door is required. Remove the protective foil from the glass door. Two fitters are needed to position the door into the notch on the floor plate.
  • Page 16 INSTALLATION OF WALLS AND DOOR/WINDOWS The door must not be opened (unless additionally secured) until the brick row D has been installed, as the weight of the open door can cause the cabin to tilt.

  • Page 17: Installing The Brakes

    INSTALLATION OF WALLS AND DOOR/WINDOWS 4.3 Installing the brakes The Mobile Unit may only be used with the brakes locked. The parking brakes are mounted with screws. As soon as the unit is placed at the intended location, both parking brakes must be applied.

  • Page 18: Wood Fibre And Floor Plate

    INSTALLATION OF WALLS AND DOOR/WINDOWS 4.4 Wood fibre and floor plate The floor consits of several layers, a wood fibre layer for insula- tion and a white 16 mm chipboard panel which serves as carrier plate for the carpet. First, insert the wood fibre foor plate and secondly the 16 mm chipboard panel onto which the carpet will be layed (adhesive tape on top).

  • Page 19: Rows B, C, D And Shelf

    INSTALLATION OF WALLS AND DOOR/WINDOWS 4.5 Rows B, C, D and tray fold Now insert brick row B. Start with Brick B6 on the front right next to the door and continue counter-clockwise as shown in the illustrations. Next install brick row C. Start with Brick C11 and continue clockwise as shown in the illustrations.
  • Page 20 INSTALLATION OF WALLS AND DOOR/WINDOWS Use a ladder or climbing aid to mount level D. This must stand safely and must not wobble! The last brick row is D. Start with brick D16 at the front right side of the door and continue counterclockwise as shown in the picture.
  • Page 21 INSTALLATION OF WALLS AND DOOR/WINDOWS 2x Wooden Strips...
  • Page 22 INSTALLATION OF WALLS AND DOOR/WINDOWS Shelf: Position the shelf as shown in the following figure and tighten it with the supplied screws...

  • Page 23: Roof Assembly And Electric Connection

    ROOF ASSEMBLY AND ELECTRIC CONNECTION 5 Roof assembly and electric connection 5.1 Installing the roof Use a ladder or climbing aid to mount level D. This must stand safely and must not wobble! Now install the roof plate. It contains the LED panel and the motion detector which are pre-installed.
  • Page 24 ROOF ASSEMBLY AND ELECTRIC CONNECTION Connect the (4.) roof supply cable to the (3.) motion detector module. Connect the (5.) 3-way electrical strip to the other cable of the motion detector module and position it as shown in the illustration. Then connect the transformer for the (1.) LED panel and connect the plug to the 3-way connector strip.

  • Page 25: Connections Fan And Led

    ROOF ASSEMBLY AND ELECTRIC CONNECTION 5.2 Connections fan and LED 1. LED 2. Transformer 3. Motion detector module 4. Roof supply cable 5. 3-way electrical strip 6. Fan...
  • Page 26 ROOF ASSEMBLY AND ELECTRIC CONNECTION Make sure that the cables run through the recesses of the fan box, otherwise the roof part will not fit properly. Now connect the ventilation tubes to the ventilation cubes as show in the following illustration...
  • Page 27 ROOF ASSEMBLY AND ELECTRIC CONNECTION The next step is to install the 4 roof frames. Make sure that the dowel holes on the bottom match the ones on the top brick row. Make sure that the power cables are not jammed by the frame parts.
  • Page 28 ROOF ASSEMBLY AND ELECTRIC CONNECTION Make sure that the power cables are not jammed by the frame parts. Next, place the wood fibre linings in the intended positions as shown in the following illustration. Now you can put the roof plates onto the top. Note that the fan recess determi- nes the exact position of the fan and rear outlet valve.
  • Page 29 ROOF ASSEMBLY AND ELECTRIC CONNECTION...

  • Page 30: Carpet Tiles

    LAY CARPET TILES 6 Lay Carpet tiles Carpet: Before putting in the carpet, remove the protective foil from the double sided adhesive tape. Then put in the carpet tiles. Connect the power cable to the mains supply. Dispose of the packaging material properly according to regulations at the appropriate disposal point.
  • Page 31 MAINTENANCE AND CARE Always clean the full surface of the bricks to prevent stains forming. Any soiling due to assembly or glue can thus be removed. A regular vacuum cleaner is suitable for cleaning the carpet. For permanent smooth operation, it is essential to clean and maintain the booth regularly.

  • Page 32: Dissassembly

    DISASSEMBLY 8 DISASSEMBLY Disassembly has to be done by two fitters. Use a ladder or clim- bing aid to disassemble the roof parts and brick row D. 1. Disconnect the plug from the mains supply. 2. Remove the roof parts. 3.
  • Page 33 DISASSEMBLY...
  • Page 34 © Reproduction, reprinting and translation as well as any commercial use (including extracts, in printed or electronic form) are only permitted following prior written approval by Veidt Anleitungen.
