Summary of Contents for Blagdon 1057233

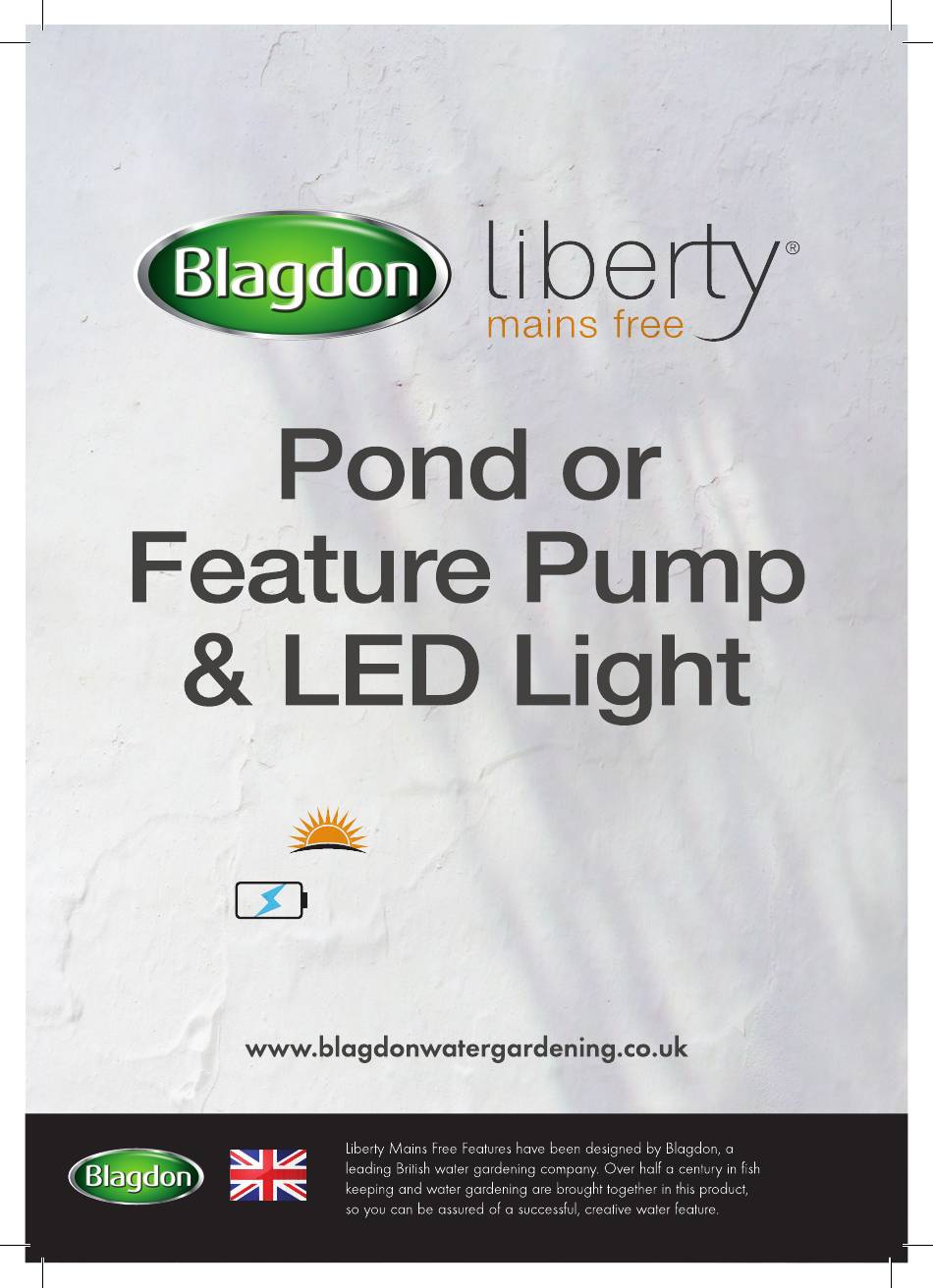

- Page 1 Solar Recharged Lithium Battery Powered INNOVATIVE DESIGN...
- Page 3 Single Jet Star Jet 7 Hole 12 Hole Daisy Jet Daisy Jet 3 / 8 Flow ”and Fountain 1 / 2 ” Hose Control extension Adaptors Valve pipe x4 Part No. Description Spares Solar Panel with Battery 1057288 pack Battery only 1057301 Solar Panel Post and Bracket Solar Panel Post...
-
Page 4: Solar Panel Installation
1. Solar panel installation. Ground mounted: Wall/fence mounted: Ground mounted: Insert solar panel bracket into one end of the tube, insert the ground spike into the opposite end, and push into your chosen area of ground. Wall/fence mounted: Using the supplied wall plugs and screws, attach the wall/fence mounting bracket to your chosen wall or fence. -
Page 5: Pump Assembly
2. Pump assembly. 1. Attach the pump outlet adaptor to the pump. 2. Connect the flow control valve to the pump outlet adaptor – this will allow you to adjust the water flow (not required for deep water/floating). 3. Connect the correct amount of extension tubes to raise the outlet above the water surface. (For deep water/ floating installation only one extension will be required) 4. - Page 9 Important: Only the correct, official Blagdon Liberty battery pack should be used for replacement, as alternatives may in incompatible, they may damage the system or create an electrical hazard – this will void the guarantee. Do not place the removed battery in or near fire, or in direct sunlight. Heating the battery can damage the...
- Page 12 INNOVATIVE DESIGN...
