Page 2 Thank you! Thank you for purchasing a WiFi Edge LED Fixture! We know you will be pleased with the performance and years of service this light will provide. Customer Support Tiaojiou Limited Support@tiaojiou.com 886-2-2910-9190 #tiaojiouproducts #tiaojioutaiwan #tiaojiouﬁ xtures #wiﬁ edge...
Page 3: Table Of Contents
Contents 4. Safety Guidelines 5. Inside the Box 6. Install Phone App and Connect Fixture to WiFi 13. Name a Fixture 14. Create a Group 15. App Settings (Time Format, Demo Speed, User Information) 16. Selecting Initial Light Spectrums and On/Oﬀ Times 17.
Page 4: Safety Guidelines
Safety Guidelines A) READ AND FOLLOW ALL SAFETY INSTRUCTIONS. C) Close supervision is necessary when any appliance is used by or near children. B) DANGER – To avoid possible electric shock, special care should be taken since water is employed in the use of aquarium equipment. D) To avoid injury, do not contact moving parts or hot parts such For each of the following situations, do not attempt repairs by as heaters, reﬂ...
Page 5: Inside The Box
Inside the Box WiFi Edge LED Fixture Power Supply Setup Guide...
Page 6 Install App & Connect to Fixture Setup Guide - WiFi Edge 1. Place the power supply in a location where it won’t get wet. Create a drip loop and connect the ﬁ xture cord to the power outlet. Drip Loop...
Page 7 Install App & Connect to Fixture Setup Guide - WiFi Edge 2. Scan the QR code or search for the name “TT3Connect” to download the TT3 Connect App to your smart phone. NOTE: The only way to control the ﬁ xture is with...
Page 8 Install App & Connect to Fixture Setup Guide - WiFi Edge 3. Navigate to Settings in your phone and ensure it is connected to a 2.4GHz WiFi Network. * In cases where a dual band (2.4GHz+5GHz) WiFi router is used, it is strongly suggested to use diﬀ...
Page 9 Install App & Connect to Fixture Setup Guide - WiFi Edge 4. Launch the TT3 Connect App and follow the prompts.
Page 10 Install App & Connect to Fixture Setup Guide - WiFi Edge 5. In the TT3 Connect App, tap the “+” on the top right and select “Add Fixture”.

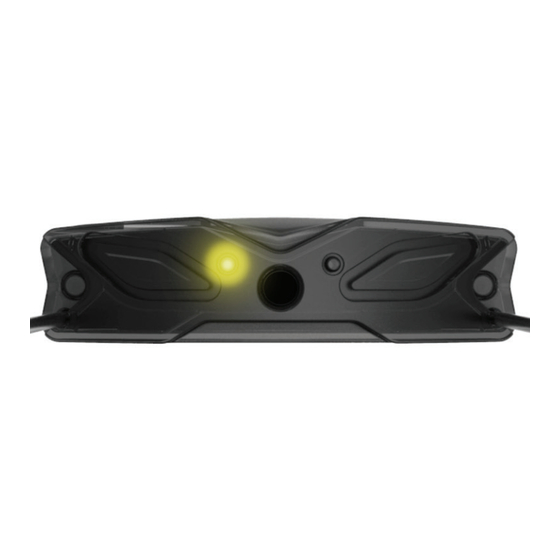

Page 11 Install App & Connect to Fixture Setup Guide - WiFi Edge 6. To pair the ﬁ xture with your phone: • Press the button on the side of Indicator Button the ﬁ xture once. The LED indicator will turn solid purple.
Page 12 Install App & Connect to Fixture Setup Guide - WiFi Edge 7. Enter the password for the WiFi network. The ﬁ xture will connect to the WiFi network and the indicator light will turn solid color. To verify if the ﬁ xture...
Page 13: Name A Fixture
Name a Fixture Setup Guide - WiFi Edge To rename a ﬁ xture for better distinguishability, press and hold the default name of the ﬁ xture. In this example the default name is “Edge2-0577A7”...
Page 14: Create A Group
Create a Group Setup Guide - WiFi Edge The TT3 Connect App allows you to group multiple Edge ﬁ xtures together and control them as a single ﬁ xture. This is helpful when more than one ﬁ xture are installed over a single aquarium or if two separate aquariums have the same lighting requirements.
Page 15: App Settings (Time Format, Demo Speed, User Information)
App Settings Setup Guide - WiFi Edge Select the gears icon from the bottom menu bar: a. Hour System – Time will be displayed as AM/PM or 24 Hour format. b. Demo Speed – The ﬁ xture has the ability to show you an entire 24 hours of programmed lighting in a short period of time.
Page 16: Selecting Initial Light Spectrums And On/Oﬀ Times
Selecting Initial Light Spectrums & On/Oﬀ Times Setup Guide - WiFi Edge The WiFi Edge Fixtures come pre-programmed with color spectrums and times. When adding a new ﬁ xture or group, you will be prompted to select your choice of pre-programmed options.
Page 17 Customizing Color Spectrum & Times Setup Guide - WiFi Edge After initial setup, it is possible to adjust the light intensity, colors and time. Tap on the graph These adjustments can be to modify the light made either for a ﬁ xture...
Page 18 Customizing Color Spectrum & Times Setup Guide - WiFi Edge Delete a Time Point Add a Time Point Advance to next Time Point Tap number to change color percentage...
Page 19: Lightning & Weather
Lightning & Weather Setup Guide - WiFi Edge Adjust how quickly weather Tap the top right randomly menu to access changes the Lightning and Weather functions Change intensity of weather Tap number to change duration Adjust how often lightning strikes...
Page 20 Indicator Lights Setup Guide - WiFi Edge SOLID BLUE – Fixture is in the AUTO mode SOLID GREEN – Fixture is manually turned ON or OFF...
Page 21 Indicator Lights Setup Guide - WiFi Edge BLINKING YELLOW – SOLID PURPLE – Not connected to WiFi Pairing Button has been pressed once BLINKING PURPLE – Pairing Button held for three seconds and ﬁ xture is ready to be paired with a WiFi Network SOLID RED –...
Page 22: Troubleshooting
Troubleshooting Setup Guide - WiFi Edge Below are common situations and the most common solutions. If you have issues that you cannot solve, please contact Distributor of Tiaojiou. or Support@tiaojiou.com 886-2-2910-9190 ISSUE RESOLUTION Light will not turn on (Indicator Light >...
Page 23: Regulatory Information
Regulatory Information Setup Guide - WiFi Edge READ AND FOLLOW ALL SUPPLIED SAFETY INSTRUCTIONS This device complies with Annex III module B and Article 3.1(b) and 3.2 of RED 2014/53/EU. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation.
Page 24: Warranty
IF TIAOJIOU LIMITED OR ITS DEALER CANNOT LAW FULLY purchase. DISCLAIM IMPLIED If a defect is shown, Tiaojiou limited or its dealer will, at Tiaojiou limited WARRANTIES UNDER THIS LIMITED WARRANTY, ALL SUCH or its dealer’s sole discretion, WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY either repair or replace the product without charge.
