Brahler DV9 User Controls, Indications And Connections

BRÄHLER ICS 05.4030

General information

T h e d i g i ta l d e l e g a t e s ´ u n i t D V 9 f o r o n e d e l e g a t e ( u p t o 3 2 c h a n n e l s ) i s e q u i p p e d w i t h
back lighted LC-Display (2x40 characters) for channel number and languages, back lighted microphone button,
incorporated loudspeaker, connector socket for headphone, minicon-socket for microphone
(RJ45, 'previous' and 'next') for daisy chaining, 5 voting buttons, channel selector and volume control buttons for the relay
channel and chipcard-reader.

Set-up information

The delegates´unit DV9 is initializing itself after connecting the unit to the previous unit or
power supply.
The languages are assigned to the different channels by the system software.
For further information see CDSConsole and DV9 operating instructions.

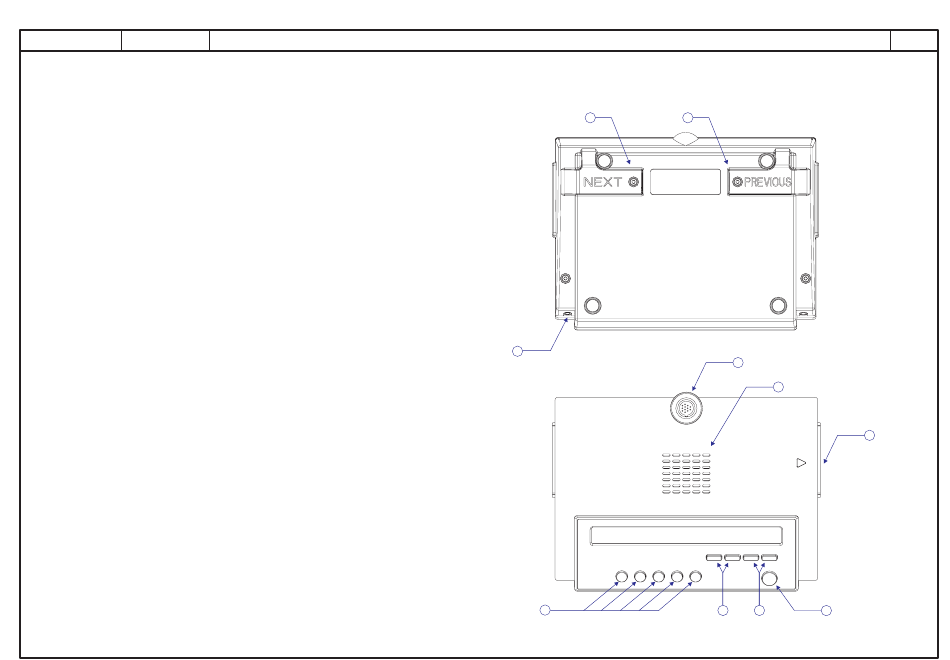

1. Connector socket NEXT (RJ45),
for connection of the next unit
2. Connector socket PREVIOUS (RJ45),
for connection of the previous unit
3. Mini jack connector (3.5 mm),
for headphone connection
4. Connector socket (Minicon),
for microphone connection (TM58/6)
5. Microphone push button switch (ON/OFF),
for on/off operation of the microphone,
with red indication light
6. Channel selector buttons (<ch>),
to select relay channel,
shown on display
7. Volume control,
buttons for volume adjustment of the relay channel
8. Built-in loudspeaker,
for monitoring the original
9. Voting buttons,
for voting and evaluation,
very good (++), good (+), abstention (?), bad (-) and
very bad (--)
10.Chipcard reader,
for personal identification, name handling and speaker
lists
DV9 Digital Delegates´Unit - User controls, indications and connections
TM58/6, 2 connector sockets
1 2
BRÄHLER ICS BRÄHLER ICS
DV9 / 05.4030 DV9 / 05.4030
xxxx
xxxx xxxx xxxx xxxx
3
CHANNEL 07 CHANNEL 07
englisch
vote now vote now
-
-- ? + ++
9
BDO\...\BHDE DV9.cdr
MSC/050629
xxxx
4
8
10
BRÄHLER ICS BRÄHLER ICS
< vol > < ch >
mic
7 6
5
REV 1.0
