Summary of Contents for VivoLink VL12K12-BULK1V-EU-4K

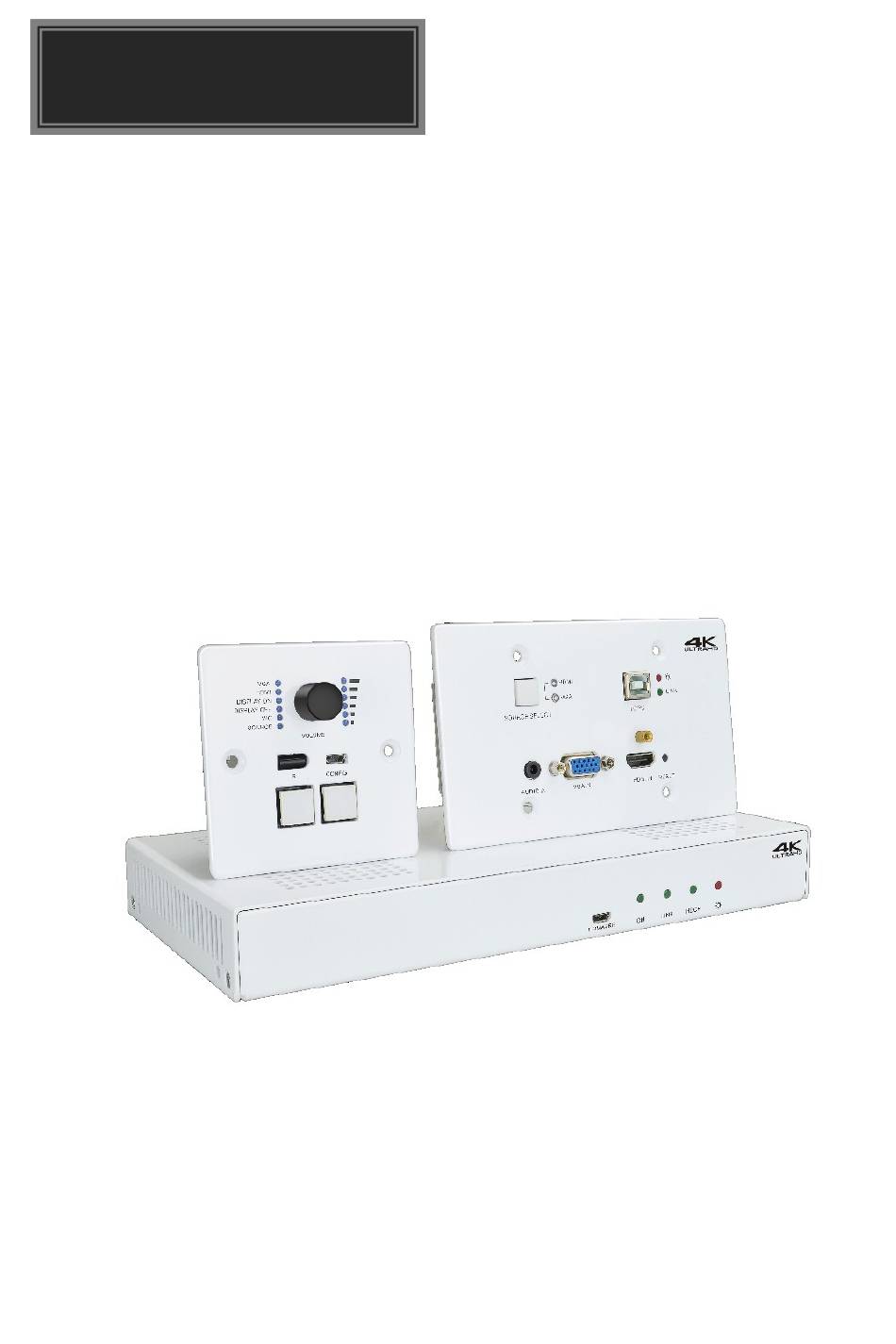

- Page 1 User Manual VL12K12-BULK1V-EU-4K Multi-function AV Distribution System All Rights Reserved Version: VL12K12-BULK1V-EU-4K_2019V1.0...
- Page 2 Multi-function AV Distribution System Preface Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance.
- Page 3 Multi-function AV Distribution System SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material ...
-
Page 4: Table Of Contents
Multi-function AV Distribution System Table of Contents 1. Product Introduction ....................1 1.1 Features ......................1 1.2 Package List ...................... 2 2. Specification ....................... 3 2.1 K12-TX1V-EU-4K Transmitter ................3 2.2 K12-RX1-4K Receiver ..................4 2.3 K12-PAD1V-EU Control Panel ................5 3. -
Page 5: Product Introduction
Multi-function AV Distribution System 1. Product Introduction The VL12K12-BULK1V-EU-4K is a multi-function AV distribution system designed to provide video switching, system control, video extension and analog audio amplification in a convenient kit. The system consists of K12-TX1V-EU-4K HDBaseT Transmitter, K12-RX1-4K HDBaseT Receiver and K12-PAD1V-EU Control Panel. -
Page 6: Package List
Multi-function AV Distribution System 1.2 Package List Transmitter 1x K12-TX1V-EU-4K Scaler Wall Plate HDBaseT Transmitter 1x K12-RX1-4K HDBaseT Receiver 2x Mounting Ears with 4 Screws 4x Plastic Cushions 1x 4-pin Terminal Block Receiver 3x 3-pin Terminal Blocks ... -
Page 7: Specification
Multi-function AV Distribution System 2. Specification 2.1 K12-TX1V-EU-4K Transmitter Video & Audio Video Input (1) HDMI IN, (1) VGA IN Video Input Connector (1) 19-pin type-A female HDMI, (1) DB15 female VGA (1) PoC IN/HDBT OUT, (1) POWER/RS232 Video Output Video Output Connector (2) RJ45 (1) AUDIO IN... -
Page 8: K12-Rx1-4K Receiver
Multi-function AV Distribution System 2.2 K12-RX1-4K Receiver Video (1) HDBT IN/PoC Video Input (1) RJ45 Video Input Connector (1) TO DISPLAY Video Output (1) 19-pin type-A female HDMI Video Output Connector Audio Audio Input (1) MIC Audio Input Connector (1) 3-pin terminal block Audio Output (1) 2x20Watt@4Ω, (1) LINE OUT Audio Output Connector... -
Page 9: K12-Pad1V-Eu Control Panel
Multi-function AV Distribution System Dimension (W*H*D) 250mm x 31mm x 130mm Net Weight 682g 2.3 K12-PAD1V-EU Control Panel Port (1) CONFIG, (1) POWER/RS232 Program Port (1) Type-A USB, (1) RJ45 Output Port (1) Volume Knob, (2) Buttons (SOURCE, DISPLAY ON/OFF), Other (1) Built-in IR sensor Operation Temperature... -
Page 10: Panel Description
Multi-function AV Distribution System 3. Panel Description 3.1 K12-TX1V-EU-4K Transmitter 1 1 12 HDMI LINK SOURCE SELECT TO PC AUDIO IN VGA IN HDMI IN RESET 9 10 ① SOURCE SELECT: Blue-backlit button for source selection. ② HDMI IN LED: The LED illuminates yellow when the HDMI source device is connected to the HDMI input port. -
Page 11: K12-Rx1-4K Receiver
Multi-function AV Distribution System ⑫ PoC IN/HDBT OUT: RJ45 port to connect the HDBT IN/PoC port of receiver by CATx cable. The transmitter can be powered by this port once the receiver has been powered up. ⑬ FIRMWARE: Micro-USB port for firmware upgrade. 3.2 K12-RX1-4K Receiver FIRMWARE LINK... - Page 12 Multi-function AV Distribution System ⑦ FROM TOUHSCREEN: Type-A USB port to connect a touch screen device (e.g. Smart Board) to transmit USB signal back to the Host PC. The port also can be connected to an interactive projector to achieve on-line handwriting annotation, but it can’t be synchronized to the Host PC.
-
Page 13: K12-Pad1V-Eu Control Panel
Multi-function AV Distribution System 3.3 K12-PAD1V-EU Control Panel POWER RS232 ① LED indicators: VGA: The LED illuminates blue when the VGA source is selected. HDMI: The LED illuminates blue when the HDMI source is selected. DISPLAY ON: The LED illuminates blue when DISPLAY ON function is ... - Page 14 Multi-function AV Distribution System ⑦ POWER/RS232: RJ45 port to connect the POWER/RS232 port of the transmitter via CATx cable to transmits RS232 control signal and power the control panel. ⑧ FIRMWARE: Micro-USB port for firmware upgrade.
-
Page 15: System Connection
Multi-function AV Distribution System 4. System Connection 4.1 Usage Precaution Make sure all components and accessories are included before installation. System should be installed in a clean environment with proper temperature and humidity. All of the power switches, plugs, sockets, and power cords should be insulated and ... -
Page 16: Speaker Wiring Configurations
Multi-function AV Distribution System 4.3 Speaker Wiring Configurations 4Ω Load with 4Ω speakers: 4Ω Load with 8Ω Speakers:... -
Page 17: Poc Connection
Multi-function AV Distribution System 4.4 PoC Connection The system supports PoC, which allows several terminals share the same power supply and eliminates the need for extra power supply at the remote nodes. Connect a 24V DC power adapter to the power port of receiver, the transmitter and control panel can be energized synchronously with PoC solution, see the picture below: POWER RS232... -
Page 18: Ir Connection
Multi-function AV Distribution System 4m/13ft between the receiver and the smart board. 4.6 IR Connection The control panel provides a built-in IR sensor and the receiver provides an IR OUT port for IR pass-through control. Connect IR emitter to the IR OUT port of the receiver, and then put the IR emitter close to the display device (e.g. -
Page 19: Rs232 Connection
Multi-function AV Distribution System 4.7 RS232 Connection The receiver provides an additional RS232 interface to connect the display device, and then the display device can be controlled by sending RS232 commands via GUI. Please refer to 5.3.3 Command Tab. CAT5e/ 6A Cable 30m HDMI LINK SOURCE SELECT... -
Page 20: System Operation
Multi-function AV Distribution System 5. System Operation 5.1 IR Learning The IR learning function allows user to use the buttons of control panel to displace some keys of IR remote which can control display device or other devices. The control panel has two buttons: SOURCE and DISPLAY ON/OFF, but the SOURCE button does not support IR learning function, because it is designed for source selection. -
Page 21: Button Control
Multi-function AV Distribution System 5.2 Button Control Select Input Source Press the SOURCE button on the control panel to select the appropriate source device. Press the SOURCE SELECT button on the transmitter to switch input signal between HDMI and VGA sources. Power On and Off the Display ... -
Page 22: Gui Control
Multi-function AV Distribution System 5.3 GUI Control The web browser control interface is an alternative method to control the system without having to interact with the control panel. The default IP address of the transmitter is 192.168.0.178. This can be changed in the Network settings by an administrator. -
Page 23: Device Control Tab
Multi-function AV Distribution System 5.3.1 Device Control Tab HDMI & VGA Switch between HDMI and VGA. DISPLAY Turn the display on or off. SYSTEM Turn the system on or off. VOLUME Mute or unmute MIC and SOURCE audio. Volume may be changed by pressing the “+” or “-”... -
Page 24: Setting Tab
Multi-function AV Distribution System 5.3.2 Setting Tab To enter the configuration settings, click on the gear icon on the lower left corner of the control interface. PASSWORD Change the password for the admin and user login screen. DISPLAY CONTROL SELECT Select whether the display will be controlled via IR or RS232. -
Page 25: Command Tab (Rs232 Display Control)
Multi-function AV Distribution System FLOOR Rename the label at the control system. LABEL Rename the label at the top of the control screen. AUDIO DELAY Set up the audio delay to sync the audio with the video on the display device. The delay time is 0 to 340 ms. - Page 26 Multi-function AV Distribution System Display On Enter the RS232 command to turn on the display. Display Off Enter the RS232 command to turn off the display. Input Select Enter the RS232 command to switch to the input which is connected to the receiver. ...
-
Page 27: Configuration Tab
Multi-function AV Distribution System Save/Cancel Save or cancel setting. Note: Please refer to the display device’s user manual for more command details. 5.3.4 Configuration Tab OUTPUT RESOLUTION When VGA source is selected as input, the output resolution supports 1024x768, 1280x720, 1280x800, 1360x768, 1600x1200, 1920x1080 and 1920x1200 to be selected. -
Page 28: Network Tab
Multi-function AV Distribution System 5.3.5 Network Tab DHCP/STATIC IP Select whether the system will use a static IP or will be provided an IP via DHCP. IP Address Enter the IP address for the system. Subnet Mask Enter the subnet mask for the system. Gateway Enter the gateway address for the system. -
Page 29: Gui Update
Multi-function AV Distribution System 5.3.6 GUI Update Please visit at http://192.168.0.178:100 for GUI online upgrade. Type the username and password (the same as the GUI log-in setting, modified password will be available only after rebooting) to login the configuration interface. After that, click Administration in the source menu to get to Upload Firmware as shown below: Select the desired update file and press Apply, it will start upgrading then. -
Page 30: Copy And Load Control Settings
Multi-function AV Distribution System 5.4 Copy and Load Control Settings The system IR or RS232 configuration can be copied to a USB thumb drive and loaded into additional systems or be saved as a backup. Copy Control Setting 1) Insert a 4GB or smaller FAT32 formatted thumb drive into the CONFIG port on the control panel. -
Page 31: Panel Drawing
Multi-function AV Distribution System 6. Panel Drawing 47 mm(1.85in) 44 mm(1.73in) HDMI LINK SOURCE SELECT TO PC AUDIO IN VGA IN HDMI IN RESET 100 mm(3.94in) 151 mm(5.94in) K12-TX1V-EU-4K Transmitter 250.00 mm NETWORK INPUT OUTPUT CONTROL AUDIO FROM REMOTE TCP/IP HDBT IN/PoC TO DISPLAY TOUCHSCREEN... - Page 32 Multi-function AV Distribution System 37 mm(1.46in) 34 mm(1.34in) POWER RS232 80 mm (3.15in) K12-PAD1V-EU Control Panel...
-
Page 33: Troubleshooting & Maintenance
Multi-function AV Distribution System 7. Troubleshooting & Maintenance Problems Potential Cases Solutions Insert power adapter to the Haven’t been powered on. receiver. No reaction to any operation, power Should the replacement The poor quality of network indicator is off CAT5e/CAT6a cable of high cable. - Page 34 Multi-function AV Distribution System The PC’s network segment Unable to login to The PC’s network segment has need to be set as the same not been modified. as the kit’s Static becomes Check the grounding and stronger when bad grounding make sure it is connected connecting the well.
-
Page 35: Customer Service
Multi-function AV Distribution System 8. Customer Service The return of a product to our Customer Service implies the full agreement of the terms and conditions hereinafter. There terms and conditions may be changed without prior notice. 1) Warranty The limited warranty period of the product is fixed three years. 2) Scope These terms and conditions of Customer Service apply to the customer service provided for the products or any other items sold by authorized distributor only.
