SkyBest SKY-N6004P Safety And Maintenance Instructions

SAFETY AND MAINTENANCE INSTRUCTIONS
Make sure that all electric connections and connection cables meet the pertaining regulations
and are in conformity with the operating instructions.
Do not overload electrical outlets or extension cords,fire or electric shocks can be the result.
Please contact an expert in case you have any doubts about the mode of operation ,
the safety or connecting the appliances.
Keep all parts away from young children's reach .
Do not store this item on wet , very cold or warm places , this can damage the electronic
circuit boards.
Avoid dropping or shocks, this can damage the electronic boards.
Never replace damaged power cables yourself ! in such a case , remove them from them from
the net and take the devices to a workshop.
Repairs or opening of this item may only be performed by an authorised workshop.
MAINTENANCE
The devices are maintenance-free during the warranty,so never open them . The guarantee
becomes void when you open the appliance . Only clean the outside of the devices with a soft,
dry cloth or a brush.Prior to cleaning.remove the devices from all voltage sources.
Do not use any carboxylic cleaning agents or petrol , alcohol or similar . these attack
！
the surfaces of the devices.
Correct Disposal of This Product(Waste Electrical & Electronic Equipment)(Applicable in the
European Union and other European countries with separate collection systems)
This marking shown on the product or its literature,indicates that it should not be disposedwith other
household wastes at the end of its working life.To prevent possible harm to the environment or
human health from uncontrolled waste disposal.please separate this from other types of wastes and
recycle it responsibly to promote the sustainable resue of material resources.Household users
should contact either the retailer where they purchased this product,or their local government office,
for details of where and how they can take this item for environmentally safe recycling .Business
users should contact their supplier and check the terms and conditions of the purchase contract.This
product should not be mixed with other commercial wastes for disposal.
(1) (2)
a
b
(3)
d
c
b
e
g
f
c d
(5a) (5b)
( 3h)VGA output ( 3i)HDMI output
(5e)
( 5f)
(3e) Network port (3d) Camera connection
Applications: banks, supermarkets, gas
stations, factories and other places.
(4)
c b a
1
3
5
7
f h j a
8
10
12
14
16
e g
I k
18 19
(5c) (5d)
( 3f) Monitor port
( 3k) USB
(5g)
(3j) Mouse
Network and Remote
power supply port
N6004PKIT
SKY - IP10J75P
Network digital Video Recorder,
support ONVIF protocol
Support cell phone QR code ,scan
to internet,Cloud service
Computer remote surveillance,setting
free for NVR,Cloud service
No Setting in connecting NVR and IPC
NVR integrated switch,support PoE
power supply
Full real-time playback while decoding
synchronously
Support HDMI output
Multi languages for selection

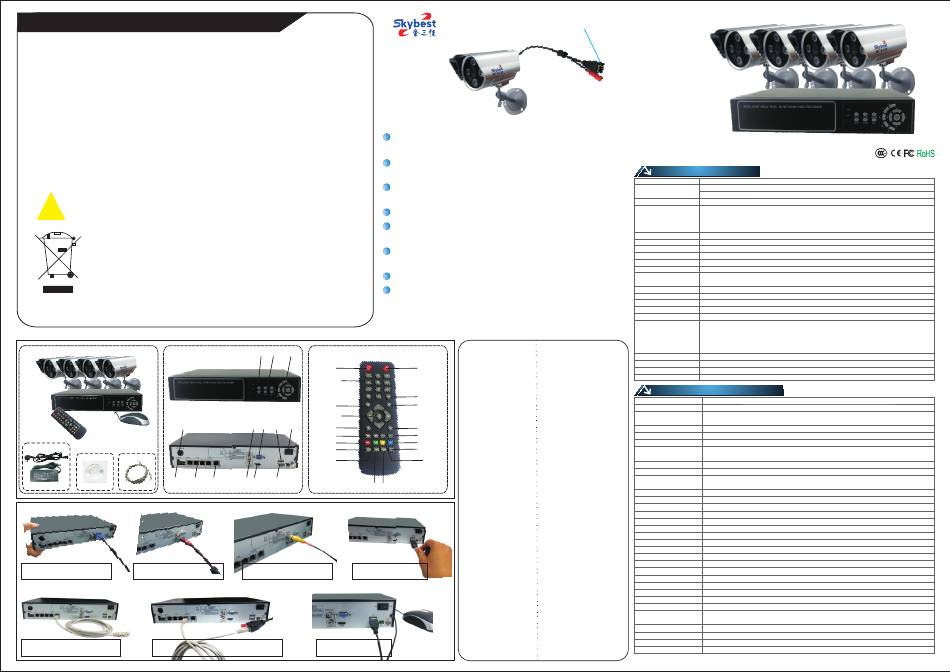

Packing List(1) Front panel(2)
a.SKY-IP10J75P*4 a.Up/Down/Left/Right/Menu
2
b.SKY-N6004P Host /OK Fast/Play/Pause/
Record/Replay/Return/
c.Remote
Pause
d.Mouse
4 b.1/2/3/4 Menu switching/
e.Power
Esc
6
f. CD
c.Power LED/HDD LED
g.Network Cable
9
Rear Panel(3)
11
Remote control (4)
a.Power Key
13
1.Power switch
b.Power Input port
15
2.Manual recording
c.POE power supply
17
3.Numeric keys
and network connection
indicator
4.Backspace
d.Viedo input port
5.Menu
e.Network port
6.Preview mode conversion
f. Video output port
7.Up / Down / Left / Right /
g.Audio output port OK key
h.VGA output 8.typewriting switch
9.Quit
I. HDMI output
10.Fast forward / rewind
j. Mouse
k.USB port 11.Setup plus or minus key
12.Automatically search
Expand Figure (5)
and play the file
5a.VGA output (3h)
13.Audio Monitor Switch
5b.HDMI output (3i)
14.PTZ control
5c.Monitor port (3f)
15.Lock/respond to the
5d.USB (3k)
remote
5e.Network port (3e) 16.Play / Pause
5f. Camera connection
17.Stop button
(3d)
18.Alarm
5g.Mouse(3j)
19.Remove
SKY-N6004P KIT
SKY-IP10J75P CAMERA
Model No SKY-IP10J75P
Embedded RTOS design, pure hard compression, watchdog.
System Structure
dual-core 32bits DSP
Sensor 1/4'' OV Megapixel CMOS sensor
H.264 video encoding,support dual-stream,AVI format,
Video Processing support stream 0.1M-6Mpbs adjustable,
support frame rate 1-30/sec adjustable.
* ,
Image Output Main stream 1280 720 Auxiliary stream 704
Day and Night Support
Net port 1 RJ45 ethernet interface, 10/100M adaptive
4 array
IR Led
IR distance 15-20M
Lens 4/6/8mm selectable
1 photoresister port, support photoresister input signal and image,IRCUT
Photoresister
infrared lamps linkage
White Balance Auto/Manual
Grap fuction Support JPEG Grap
1/25 Sec to 1/100.000 Sec
Shutter
Min illuminance Colorful:0.6Lux@F1.2,Black&white:0.08lux@F1.2
Support Agreement RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP,etc, web agreement
Support WEB configuration,support OSD,support real-time video
transmission,support motion detection and IO alarm linkage front end
Business Function
storage,support front-end storage palyback/download,supportmotion
detection and IO alarmcentre to remind and screen pop-up linkage.
ONVIF Agreement Support
Mobile Surveillance Support （iPhone、Windows Mobile、BlackBerry Symbian Android）
Power Input POE power supply, DC 48V, Max distance 100M
Working Temperature -10 ~55 ℃ ℃
SKY-N6004P SPECIFICATION
Model No. N6004P
Operation System
Embedded Linux
Multi-channel real-time recording simultaneously, multi-channel real-time
System Resource
playback,multi-channel and multi-user network operation, USB backup
Live display 1/4CH
Video Standard PAL(25fps); NTSC(30fps)
Video Compression H.264
Monitor: D1, VGA, HDMI: (support 1920*1080, 1280*720, 1440*900,
Monitoring Resolution
1280*1024, 1024*768, 800*600)
Playback Resolution
960P/D1
Decode capacity
4CH 960P real time
192(16*12) detection area can be set for each channel, multi-level
Motion Detection
sensitivity can be set (local channel only)
Audio compression G.711A
Voice Intercom NO
Manual, alarm, motion detection, timing
Record Mode
Local Playback 1CH playback
Time search, calendar search, event search, channel search
Video Search
The hard disk, network
Video Save
Back up Network backup, USB mobile hard disk, USB, SATA(only for some models)
Video Input Mode 4CH 960P/4CH D1
Video Output 1CH BNC(1.0Vp-p, 75Ω),1CH VGA, 1CH HDMI output
Audio Input NO
Audio Output
1CH RCA
Alarm Input
NO
Alarm Output
NO
RJ 45 10M/100M self-adaptive Ethernet interface
Network Interface
2 pcs
USB interface
HDD interface 1 SATA(MAX. 3T each)
Power DC 48V/12V
4 port for POE power supply, 1 port for UP link
POE power supply
International standard, 15.4W single port power supply
Working Temperature ℃-+ ℃
0 55
Working Humidity
10%－90%
Dimension(mm)
326*230*60
G.W/N.W 7.65KG/1.43KG
*
576
,
、 、
IEEE802.3af
,
