Security People Digilock Installation Instructions

Digilock Installation Instructions
Standard Body
Surface Mount w/Pull Handle

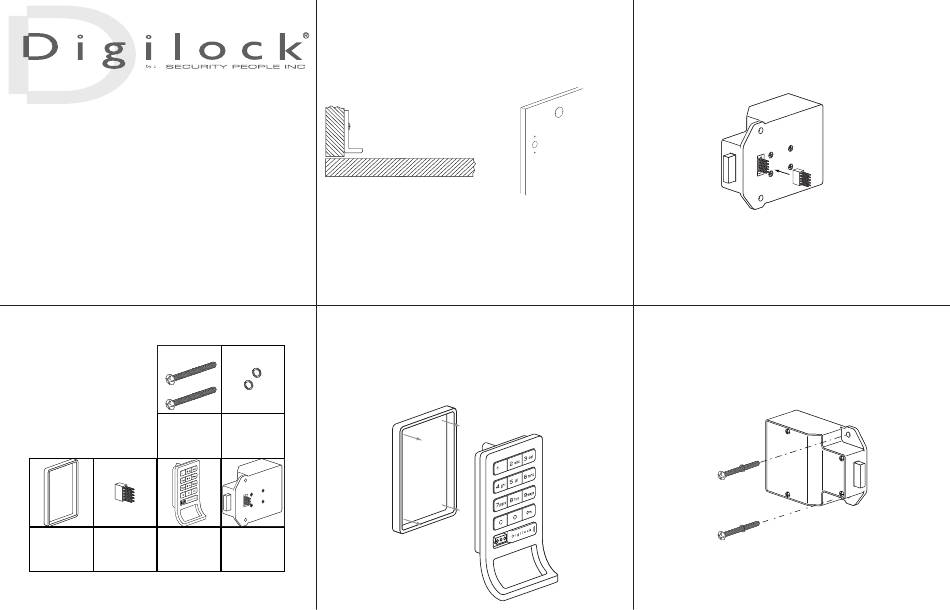

Included Components:
TOOLS REQUIRED:
Phillips head
screw driver
(A)
2 -
PHILLIPS
S
CREWS
(C) (D) (E)
1 - P R 1 - P 1 - Front Unit
LASTIC ING IN
E
XTENDER
Warning: Do not use an electric screw driver unless equipped with a torque
adjuster, which must be set on a low torque setting. Otherwise, damage may be
caused to the lock.
Before Beginning Installation
Before Installing Digilock your door must be prepped with a
strike plate (figure a) and lock mounting holes (figure b).
NOTE: If you require a strike plate(s) please contact your Digilock
reseller or visit www.digilock.com for a list of distributors.
NOTE: If you require a template to drill the lock mounting holes or to
install strike plates please visit www.digilock.com or contact Digilock
Customer Support at (707) 766-6000.
Place the plastic ring (C) onto the front unit (e).
(B)
H 2 - S L
EAD PLIT OCK
W
ASHERS
(F)
1 - Rear Unit
Figure A Figure B
Step 1
Step 2
Place the pin extender (d) on the connected pins of the rear unit
(f).
NOTE: Do not touch the rear unit connector pins (male connector) against
any metal or other conductive surfaces. This may short the batteries and
cause damage to the lock.
Step 3
Place the split lock washers (b) on the phillips head screws (a)
and Place the phillips head screws (a) through the holes on the
rear unit (f) as shown below.
NOTE: Do not touch the rear unit connector pins (male connector) against
any metal or other conductive surfaces. This may short the pins and cause
damage to the lock.
