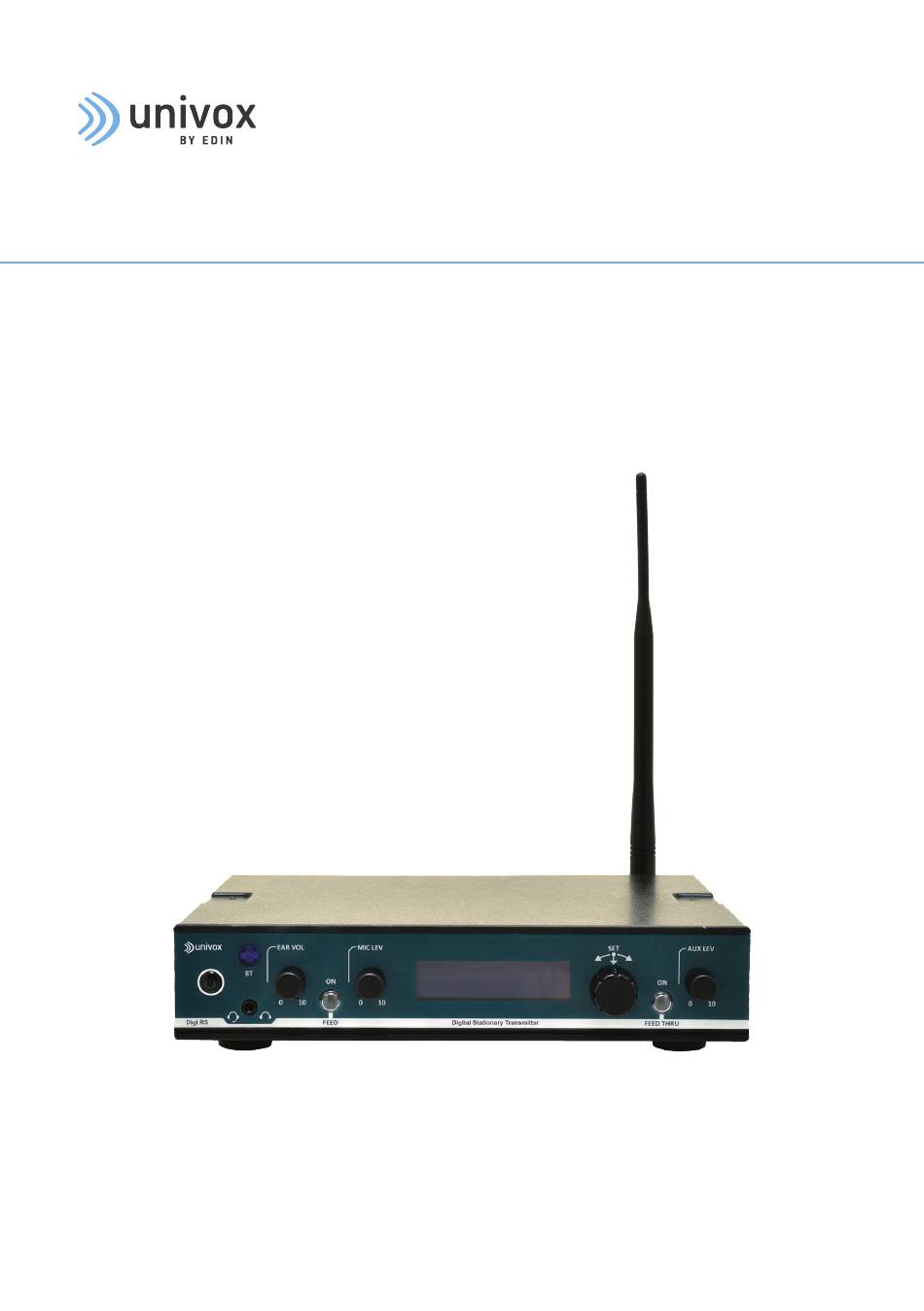

- Page 1 Univox Digi RS-ST Digital stationary transmitter User guide Part no 550020...
-
Page 2: Table Of Contents
Technical data �����������������������������������������������������������������������������������������������������������������������������������������12 Introduction Thank you for choosing a Univox product! We hope you will be satisfied� Univox Digi RS-ST stationary transmitter is used where you have an audio source that you want to transfer wirelessly to receivers with headphones or neckloop�... -
Page 3: Product Overview
Product overview A Front panel A1� Power button A6� Mic level control A2� 3�5mm headphone/headset-mic jack A7� OLED Display A3� Bluetooth button A8� Menu / Set jog dial A4� Headphone volume control A9� Aux (Transmitter) / Feed Thru (Interpreter O/I) button A5�... -
Page 4: Display Overview
Display overview C Standby screen C1� Mode - Transmitter (default) - Interpreter O (to work with okayo’s 10-way Language Router LR-10) - Interpreter I C2� RF signal power - Low (default) - Mid - Hi C3� Audio level - Fluctuates with audio signal C4�... -
Page 5: Connecting Instruction
Connecting instruction 1� Connecting appropriate RCA cable with the transmitter 2� Connecting microphone/line with the transmitter� Switch to MIC or Line� 3� Connecting the transmitter with supplied power adapter and fasten the cable well with cable clamp� 4� Compiling channels before operating� (Not active in this model) 5�... -
Page 6: Operating Instruction
Operating instruction Mode: Transmitter • Turn the transmitter on Press the power button for 1 second to turn the transmitter on� • Unlock the channel Channel will automatically be locked when the transmitter is on� Press and keep pressing the jog dial until lock symbol disappears� Then, turn the jog dial clockwise to select preferred channel number which will be locked when the jog dial is pressed again�... -
Page 7: Compatible Receiver Digi Rs
• Interpreter O (automatic) Connect it with 10-way language router LR-10 (order item) when this mode is selected� Both Feed and Feed Thru button will automatically be activated during the operation of language router LR-10� Compatible receiver Digi RS Interface 1�... -
Page 8: Application
Application Conferencing/Assistive listening (Mode: Transmitter) CH01 CH01 CH01 AMPLIFIER Interpretation for multi-languages (Mode: Interpreter O) CH03 CH01 CH05 FLOOR IN 10-way language router LR-10 CH03 CH01 CH05 (Feed) (Feed Thru) (Feed Thru) - Page 9 Interpretation for 1-2 languages (Mode: Interpreter I) CH01 CH02 FLOOR CH01 AMPLIFIER CH01 CH02 (Feed) (Feed)
-
Page 10: Troubleshooting
Troubleshooting Why can’t I turn the transmitter on? • Check if the transmitter is connected to power� Why can’t I hear anything from the bodypack receiver? • Check if the bodypack receiver is turned on� • Check if selected channel on both transmitter and receiver is the same� •... -
Page 11: Maintenance
Do not remove any covers as there is a risk of electric shock� Use only the power adapter supplied with the unit� Bo Edin AB shall not be held responsible or liable for interference to radio or TV equipment, and/or to any direct, incidental or consequential damages or losses to any person or entity, if the equipment has been installed by unqualified personnel and/or if installation instructions stated in the product Installation Guide have not been strictly followed�... -
Page 12: Technical Data
Weight 1�25kg Univox by edin, the world’s leading authority and producer of high quality hearing loop systems created the first true loop amplifier in 1969� With our strong emphasis on research and development, we have continued to innovate to deliver more firsts in the industry, constantly improving the performance of our products and service for hard of hearing communities worldwide�...
