DVS AC01-001 Operating Instructions

Handheld Programmer
Operating Instructions
Step 1 : Basic operation
These instructions relate to the use of the Handheld Programmer only.
To turn on the programmer lift the rubber flap on the base, this will
expose the switch and USB connection, move the switch in to the ON
position, the unit will now power up. Refit the rubber flap (see Program-
mer layout). Once powered on, the clock and date must be reset.
Using the left and right navigation buttons you can switch from menu to
menu.
Once you have selected the menu you wish to change, use the up and
down buttons to enter the part of the program you wish to change, when
you have done this, use the left and right buttons to change the settings.
When you are happy with the settings, point the programmer at the
sensor and press the send button (see Programmer layout). When the
sensor is set a confirmation tick will appear on the screen.
IMPORTANT: You must point the programmer away
from the sensor and leave for a minimum of 30
seconds before attempting to use, this allows the
sensor to recalibrate. Attempting to use before this
time may cause the sensor to lock up or false trigger.
Step 2 : Data processing
To upload data on the programmer ensure the computer is on and
Microsoft Excel is loaded. Turn on the Programmer using the isolation
switch and connect the USB cable via the USB port. The cable will then
need to be connected to the computer. The Programmer will then display
a menu giving the option to 'download' or 'charge', press the 'OK' button
to begin download, then 'download' will be displayed on screen. The data
will then automatically upload into the Excel spread sheet and display
'complete'.
IMPORTANT: Microsoft Excel must be opened prior to
download.
Step 3 : Charging
The Programmer requires a universal USB charging device. If being
charged by computer connect the USB cable to the Programmer and
then to the computer. The Programmer will then display a menu giving
the option to 'download' or 'charge', follow prompts to 'press any button'
to begin charging and display 'charging' on screen. Allow to trickle
charge for a minimum of 8 hours.
IMPORTANT: Charging for longer than 8 hours will not
affect battery life or cause damage to the Programmer.
AC01-001

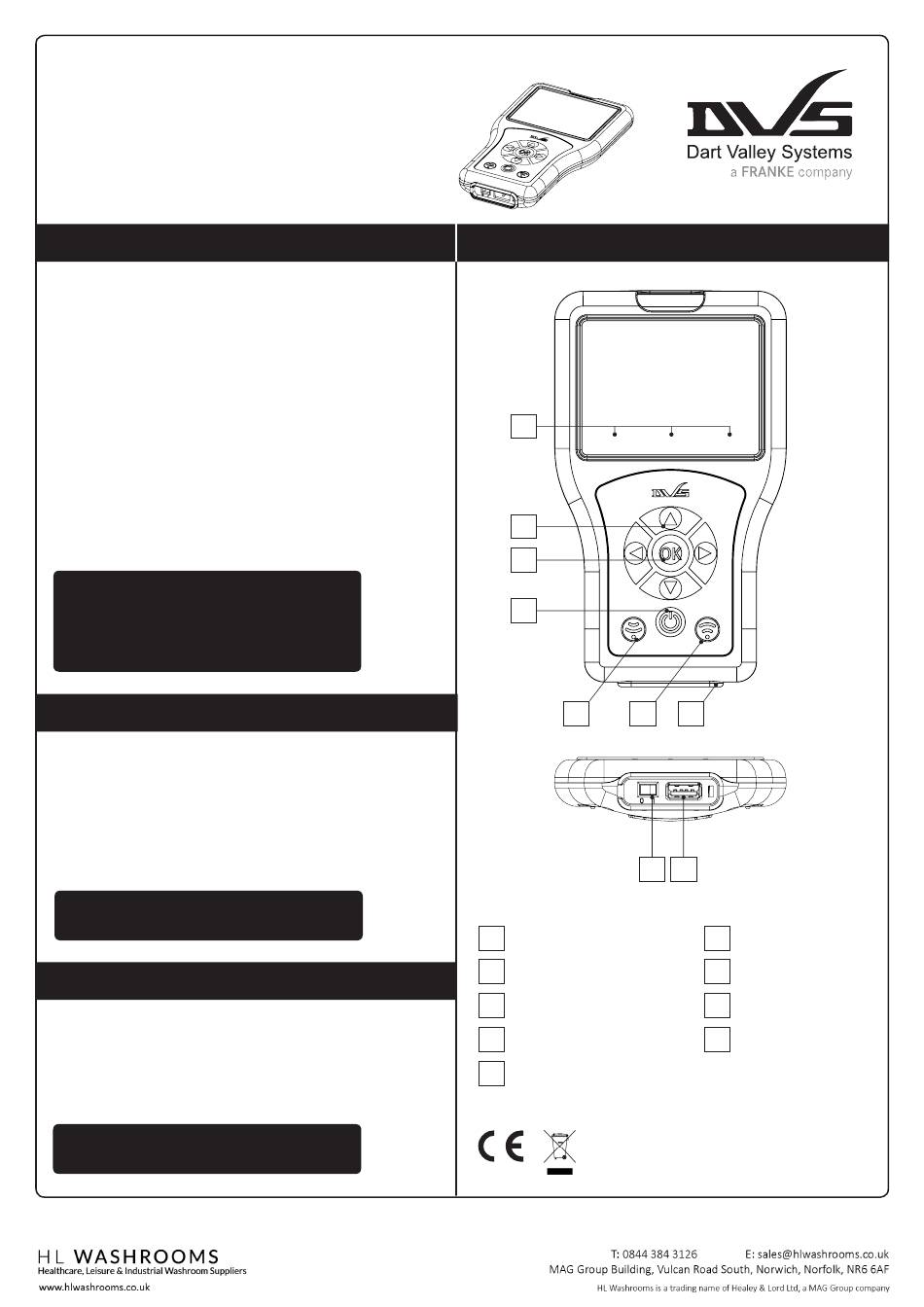

Programmer layout
9
T=000000
1
2
3
4 5
Key
1
Navigation button (x4)
2
OK button
3
On/Off button
4
Receive button
5
Send button
The use of this crossed out wheeled bin logo
indicates that this product needs to be disposed
of separately to any other household waste.
P=0000 R=00000
6
7 8
6
Switch cover
7
Isolation switch
8
USB / charging port
9
Screen legend:
T= No. of Operations
P= No. of Purges
R= Total Run Time (mins)
