Summary of Contents for NURSAL ZX-581

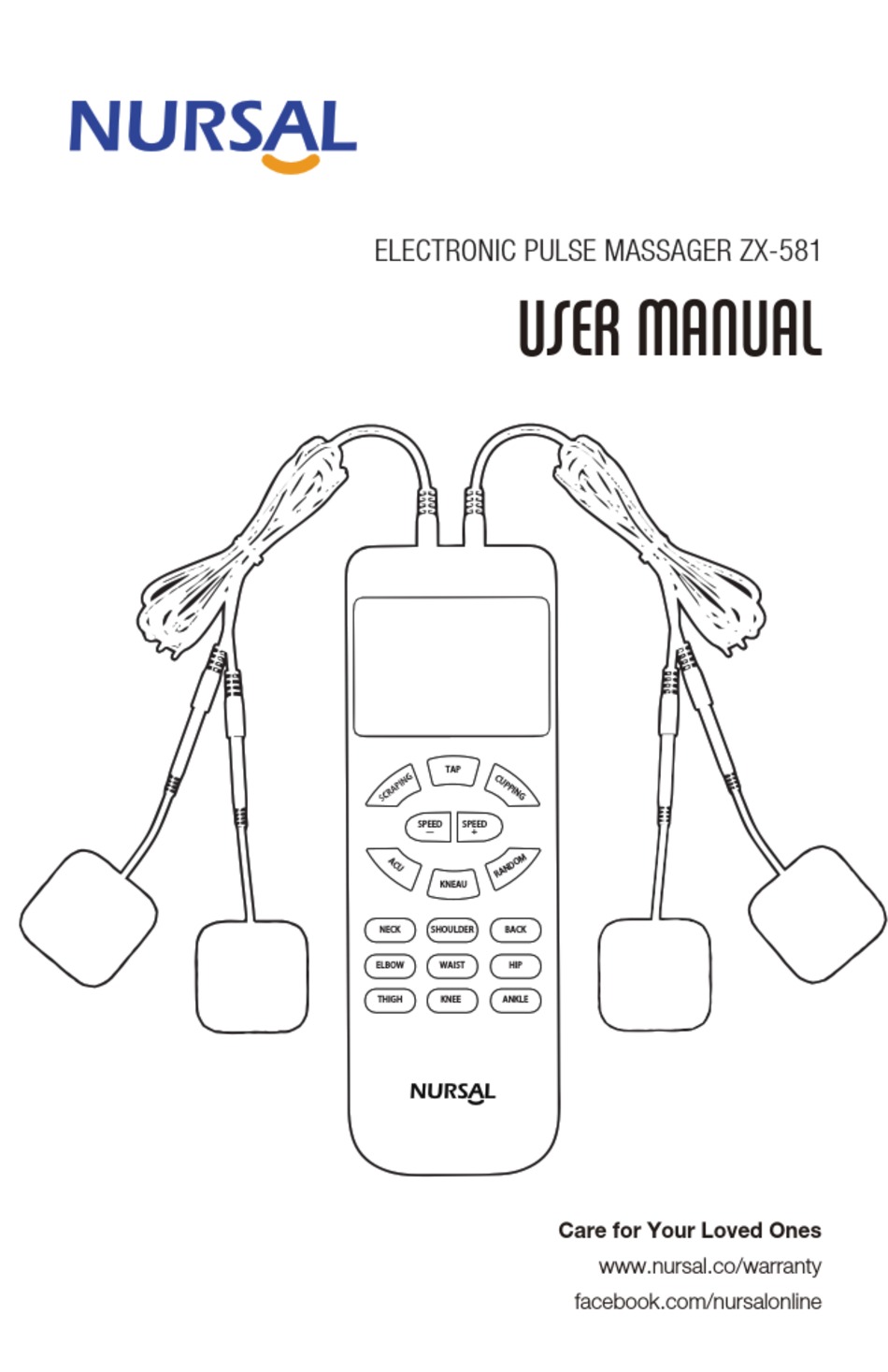

- Page 1 ELECTRONIC PULSE MASSAGER ZX-581 USER MANUAL SPEED SPEED KNEAU NECK SHOULDER BACK ELBOW WAIST THIGH KNEE ANKLE Care for Your Loved Ones www.nursal.co/warranty facebook.com/nursalonline...
- Page 2 ACTIVATE YOUR 12 MONTH WARRANTY & GET EXCLUSIVE GIFT Register within 2 weeks after receiving your new product. PLEASE VISIT NOW www.nursal.co/warranty CUSTOMER SERVICE support@nursal.co @nursalonline 1. Avoid touching the pads when the unit is on. 2. Do not use near the heart, head or carotid.
- Page 3 A Big Thank You We’re thrilled that you have chosen to purchase the Electric Gooseneck Kettle. At NURSAL, we’re committed to providing you with products that enhance your daily life. We also aim to give our customers excellent support. Should you have any questions or...
-
Page 4: Table Of Contents
CONTENTS Introduction Features Safety Warnings Environmental condition for transport and storage Cleaning and Maintenance Sterilization Methods Set up Operating the Product Best Practices Trouble Shooting Use Positions Diagrams Warranty Card... -
Page 5: Introduction
@nursalonline support@nursal.co INTRODUCTION This Electronic Pulse Massager is a user friendly product. This Electronic Pulse Massager delivers electronic impulses to tired and sore muscles. These impulses are generated by the device and delivered through electrodes to the direct proximity of the target muscles. The impulses mimic the action potential coming from the central nervous system to trigger contraction of the muscles. -
Page 6: Features
@nursalonline support@nursal.co FEATURES 1. Liquid crystal display 2. Low frequency 3. Adjustable speed and intensity 4. 15 selectable massage models 5. 1-110Hz pulse width 6. Powered by 3 AAA batteries (1.5V) 7. Maximum operating current 10-30mA; dormant current ≤10uA 8. Included accessories: 4 pairs of electrode pads, 4 wires. -
Page 7: Safety Warnings
@nursalonline support@nursal.co SAFETY WARNINGS DANGER 1. Do not use this unit if you are using an implanted electronic medical device such as pacemaker or other life-maintaining device. 2. Do not use this unit if you are wearing electrode medical devices for monitoring health functions. - Page 8 @nursalonline support@nursal.co Medical electrical equipment needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided. Portable and mobile RF communication equipment can affect medical electrical equipment. - 04 -...
-
Page 9: Environmental Condition For Transport And Storage
@nursalonline support@nursal.co TRANSPORT AND STORAGE SYMBOLS Keep the product in a dry place, away from Fragile product water and rain. Product package Maximum of 4 stacked should be recycled cartons. Attention, see operating manual for user FDA 510(K) approved 510(K) instructions. -
Page 10: Cleaning And Maintenance
@nursalonline support@nursal.co CLEANING AND MAINTENANCE Please use water or neutral detergent to clean the device first then use a dry cloth to wipe it again. Using volatile liquids to clean the device is prohibited. STERILIZATION METHODS The electrode pads supplied with the device are disposable, and should be replaced when their adhesiveness wears out. -
Page 11: Set Up
@nursalonline support@nursal.co SET UP Unpack the product, take the product and the batteries out and insert the batteries into the battery compartment at the rear. Then connect the electrode pad wires into the device. SPEED SPEED KNEAU NECK SHOULDER BACK... -
Page 12: Operating The Product
@nursalonline support@nursal.co OPERATING THE PRODUCT 1. Power button: Turns the device ON/OFF. 2. Independent channel A and channel B (A1 & A2, B1& B2), 4 channels. 3. 20 intensity levels: Intensity “+” button: Press once to increase the strength by one level. -
Page 13: Best Practices
@nursalonline support@nursal.co BEST PRACTICE: 1. Treat the area for at most 10-15 minutes. 2. Use 1-2 times per day. 3. Select an intensity level that is comfortable for you. 4. Select a speed level that is comfortable for you. 5. Start your first session with a low intensity setting and for a short duration while getting used to the using the device. -
Page 14: Troubleshooting
@nursalonline support@nursal.co TROUBLESHOOTING If your device is not operating properly, please check it for the following problems. If the recommended solution does not solve the problem, please return it to an authorized dealer for repair. PROBLEM CAUSE SOLUTION Remove the electrode... -
Page 15: Use Positions Diagrams
@nursalonline support@nursal.co Remove and re-install Device does not Batteries installed batteries correctly. turn on incorrectly. Replace the batteries The batteries are dead. with new ones. Pads are not sticky Pads have deteriorated. Contact us for replacement pads. AREAS ON THE BODY THE PADS CAN BE USED... -
Page 16: Warranty Card
@nursalonline support@nursal.co WARRANTY CARD Warranty Card Certificate ZX-581 Product model Product name Electronic Pulse Massager Date of purchase Purchase location Retailer’s Name Retailer’s phone no. Problem with the product - 12 -... - Page 17 ACTIVATE YOUR 12 MONTH WARRANTY & GET EXCLUSIVE GIFT Register within 2 weeks after receiving your new product. PLEASE VISIT NOW www.nursal.co/warranty CUSTOMER SERVICE support@nursal.co @nursalonline 1. Avoid touching the pads when the unit is on. 2. Do not use near the heart, head or carotid.
- Page 18 1-855-556-6888 (Mon - Fri 9:00 AM - 5:00 PM EST) Made in China...
