User/Installer
Guide
Select Entry Systems

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAT DBPX and is the answer not in the manual?

Questions and answers

Summary of Contents for SES SAT DBPX

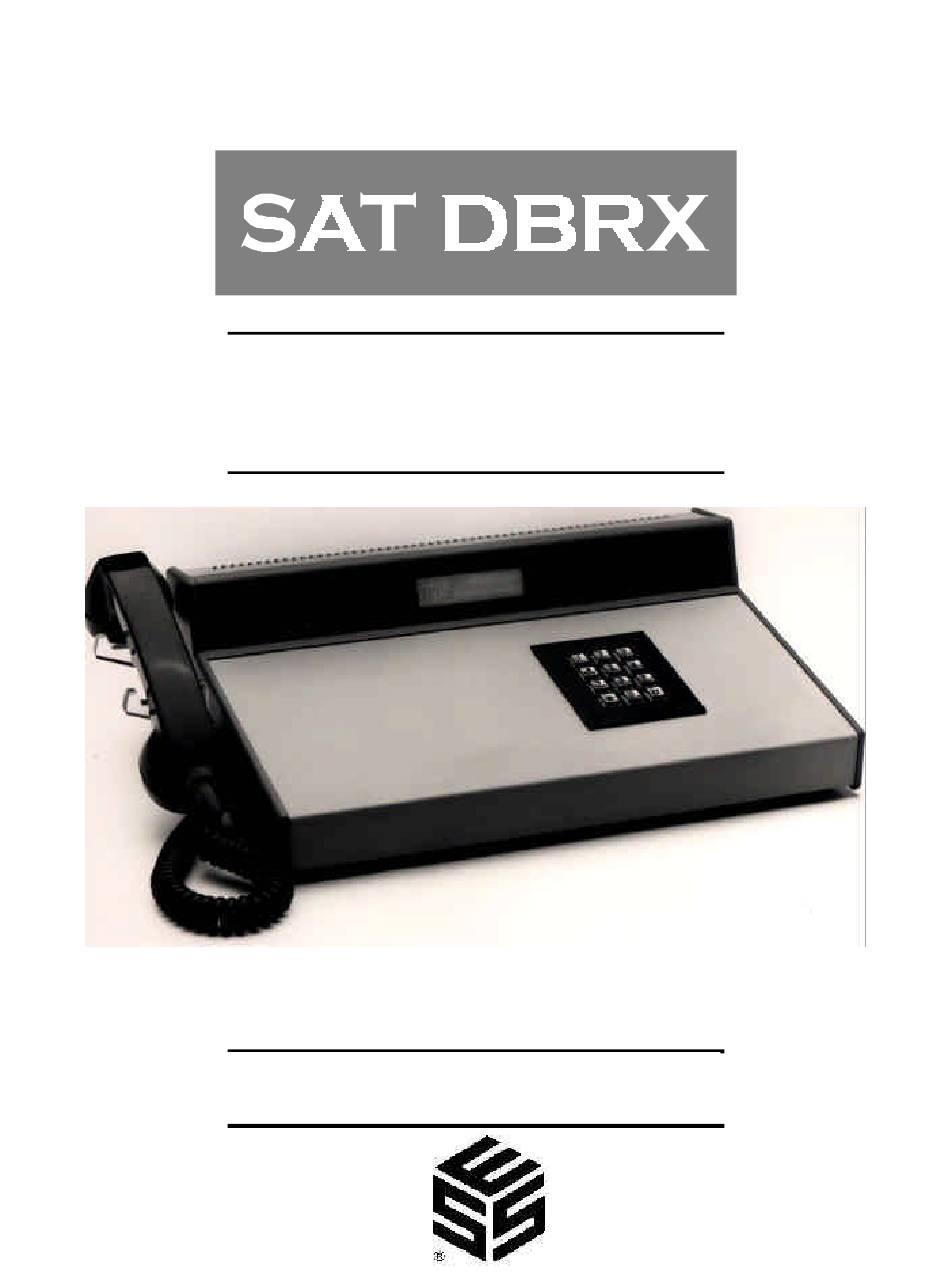

  • Page 1 User/Installer Guide Select Entry Systems...
  • Page 2 This page intentionally blank.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION TO SAT DBRX ..........1 STANDARD FEATURES .
  • Page 4 TABLE OF CONTENTS SYSTEM PARAMETERS ........... 16 4.2.1 SET CLOCK / CALENDAR .

  • Page 5: Introduction To Sat Dbrx

    INTRODUCTION TO SAT DBRX The SAT DBRX is a microprocessor based proprietary receiving device that will allow monitoring up to 100 Self Identifying Automatic Telephones (SAT) manufactured by SES. It maintains a small database consisting of this data: Location at the site.

  • Page 6: Standard Features

    SAT DBRX V1.0 INSTALLATION AND USER GUIDE STANDARD FEATURES: ! Memory Capacity: 100 SAT ID. (Additional capacity available). ! Event Buffer 75 transaction minimum (Additional buffering capacity available). ! Wrapping buffer. ! Printer capability (RS232 port) or Current Loop to printer (Baud rates to printer and/or remote terminal (CRT)) 300, 600, 1200, 2400, 4800, 9600.

  • Page 7: Electrical

    SAT DBRX V1.0 ELECTRICAL Power: The SAT DBRX uses 16 volt ac 50/60 Hz. @ 300 ma. A 16 vac transformer is supplied with each purchase in the U.S. only. The installer may choose to provide their own 12 volt 300 ma. DC supply.

  • Page 8: Installation Instructions

    SAT DBRX V1.0 INSTALLATION AND USER GUIDE INSTALLATION INSTRUCTIONS NOTE THE FOLLOWING BEFORE ATTEMPTING ANY INSTALLATION: Never install telephone wiring during a lightning storm. Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. Never touch uninsulated telephone wires or terminals unless the telephone line has b e e n disconnected at the network interface.

  • Page 9: Connecting Ground And Power

    SAT DBRX V1.0 CONNECTING GROUND AND POWER 1 AMP SLO-BLO 16 VAC 16 VAC TBS-1 16VAC TBS-2 TBS-3 POWER POWER POWER SWITCH FUSE CONN. 1) Connect a 16 gauge wire from the ground terminal (TBS-3) of the terminal barrier strip as shown above to a good earth ground.

  • Page 10: Connecting To Serial Port

    SAT DBRX V1.0 INSTALLATION AND USER GUIDE CONNECTING TO SERIAL PORT SHLD PHONE POWER POWER SERIAL POWER LINE SWITCH FUSE PORT CONN. The serial port on the back of the SAT DBRX is an RS-232 serial communications port. It is configured to operate at 8 bits with 1 stop bit and no parity at baud rates from 300 to 9600 baud.

  • Page 11: Initialization And Programming

    SAT DBRX V1.0 INITIALIZATION AND PROGRAMMING Initialization refers to configuration of a SAT DBRX. This is done during installation. These tasks are generally performed by the installer of the SAT DBRX. Programming refers to the entry of locations, names, phone numbers, city, state, and additional information.
  • Page 12 SAT DBRX V1.0 INSTALLATION AND USER GUIDE MAIN MENU SELECT 1 - 4 The choices for the main menu are: 1. SAT INFORMATION 2. SYSTEM PARAMETERS 3. COMMUNICATIONS SETUP 4. BUFFER INFORMATION The four choices above may have from 1 to 9 additional choices in a particular category (depending on what is attached to the SAT DBRX).

  • Page 13: Programming Choices

    SAT DBRX V1.0 PROGRAMMING CHOICES SELECT ENGINEERED SYSTEMS 06/93...

  • Page 14: Sat Information

    SAT DBRX V1.0 INSTALLATION AND USER GUIDE SAT INFORMATION SAT INFORMATION Pressing "1" (after entering the password) will show the choice SELECT 1 - 7 at left. In this menu selection you may: A. Add or edit SAT information. B. Find a location. C.

  • Page 15: Location

    SAT DBRX V1.0 LOCATION 4.1.1.1 FOR CHARACTERS: You will be prompted to enter a location. A location refers to where in a specific facility the SAT is located. The location LOCATION = field is 1 to 24 characters, including punctuation. The keys on the keypad are alphanumeric.

  • Page 16: Phone Number

    SAT DBRX V1.0 INSTALLATION AND USER GUIDE PHONE NUMBER 4.1.1.3 You will be prompted for the phone number. Enter the numbers normally. In this mode, letters are not possible. If one of the digits of the PHONE # = phone number is miskeyed, press the "0" and the "#" simultaneously to backspace and correct the digit.

  • Page 17: Find Location

    SAT DBRX V1.0 NOTE LINE 2 4.1.1.8 The next selection in this sub-menu is Note Line 2. This is also a 24 character field. This field is a continuation of Notes, NOTE L2 = for additional data that could not be covered in 24 characters from Line 1.

  • Page 18: Print Sat Id

    SAT DBRX V1.0 INSTALLATION AND USER GUIDE 4.1.4 PRINT SAT ID This selection will print SAT ID numbers sorted by ID numbers in ascending order. This information is sent to the printer port. Select this PRINTING sub-menu from the SAT INFORMATION menu by pressing "4". This BUSY PLEASE WAIT choice is available only from the keypad on the console or from the optional IBM keyboard.

  • Page 19: Print All Location Records

    SAT DBRX V1.0 After displaying the busy message, the display will prompt you for a carriage return or an escape sequence. Press " " for <*> TO CONTINUE a carriage return to the SAT INFORMATION menu. 4.1.7 PRINT ALL LOCATION RECORDS This selection will print all location records sorted alphabetically in ascending order.

  • Page 20: System Parameters

    SAT DBRX V1.0 INSTALLATION AND USER GUIDE SYSTEM PARAMETERS 4.2.1 SET CLOCK / CALENDAR SYSTEM PARAMETERS To set the clock/calendar, enter programming mode. SELECT 1 - 3 Select "2" from the main menu selection. NOTE: ONCE TIME/DATE PROGRAMMING HAS BEGUN, ALL SELECTIONS MUST BE COMPLETED FOR CHANGES TO TAKE EFFECT.

  • Page 21: Sat Id Length

    SAT DBRX V1.0 Enter a 1 or 2 digit number to set the month. If you make 00:00 00/00/00 a mistake, press "0" and "#" simultaneously to backspace one MONTH: character. After the month is entered, press the " " key. Enter a 2 digit number to set the year.

  • Page 22: Communications Setup

    SAT DBRX V1.0 INSTALLATION AND USER GUIDE COMMUNICATIONS SETUP 4.3.1 TERMINAL TYPE The SAT DBRX is designed to respond to terminals that follow VT-100B terminal control codes. It also can respond to "dumb terminal" TERMINAL TYPE <0-1> = codes. To disable the Terminal Type from the factory default of 1, press "1"...

  • Page 23: Print All Data

    SAT DBRX V1.0 4.3.4 PRINT ALL DATA When this function is disabled (0) the SAT DBRX will print only the SAT ID when it receives a call from a SAT. When it is PRINT ALL DATA <0-1> = enabled (1) it will print all data in the record associated with the SAT ID number.

  • Page 24: Send Log

    SAT DBRX V1.0 INSTALLATION AND USER GUIDE 4.4.2 SEND LOG PRINTING Pressing "2" will send all logging data to serial port. A message BUSY PLEASE WAIT like the one at left will display. After all data stored in the buffer has been sent, the message shown at left will display.

  • Page 25: Serial Port

    SES has an optional printer that is set correctly at the factory. Because of the wide variation in printers on the market, SES can not make specific recommendations for printers not purchased from SES.

  • Page 26: Terminal

    CRT screen: PASSWORD All SAT DBRX systems leave SES with a factory password of 777777. As the password is entered, the screen will replace each character with an " " to keep the password confidential.

  • Page 27: Connecting A Personal Computer

    PASSWORD All SAT DBRX systems leave SES with a factory password of 777777. As the password is entered, the screen will replace each character with an " " to keep the password confidential. After the password is entered, the main menu will be displayed.

  • Page 28: Ibm Keyboard

    SAT DBRX V1.0 INSTALLATION AND USER GUIDE IBM KEYBOARD PHONE POWER POWER SERIAL POWER LINE SWITCH FUSE KEYBOARD PORT CONN. To program the SAT DBRX, an I.B.M. PC or compatible (84 key keyboard) must be used. The keyboard used on the I.B.M. A.T. will NOT work. Replacement or clone keyboards may not work.

  • Page 29: Operation Of Sat Dbrx

    SAT DBRX V1.0 OPERATION OF SAT DBRX RECEIVING A CALL FROM A SAT The SAT DBRX is primarily a monitoring device that INCOMING CALL responds to DTMF signal IDs that are transmitted from S.E.S. Self-identifying Automatic Telephones (SAT). When it receives an incoming call from a SAT, the ringer rings, and the message at right displays.

  • Page 30: Terminating A Call

    SAT DBRX V1.0 INSTALLATION AND USER GUIDE information one after the other: NAME PHONE # ADDRESS CITY STATE NOTE L1 NOTE L2 SAT ID, TIME AND DATE If a field is inadvertently skipped, simply continue to press the "#" key and the database will wrap around until the desired line (or field) shows on the display.

  • Page 31: Forcing A Sat Id Transmit

    SAT DBRX V1.0 If the ID code selected is not in the data base, the SAT CALLING XXXX DBRX will display the error shown at right. Hang up the handset INVALID CODE DIALED on the cradle and try again with the correct SAT ID. FORCING A SAT ID TRANSMIT A SAT may be forced to transmit it's ID number (whether the call was placed or received), by pressing the "...
  • Page 32 FCC REQUIREMENTS The Federal Communications Commission (FCC) has established Rules which permit this device to be directly connected to the telephone network. Standardized jacks are used for these connections. This equipment should not be used on party lines or coin lines. If this unit is malfunctioning, it may also be causing harm to the telephone network.
  • Page 33 SERVICE REQUIREMENTS In the event of equipment malfunction, all repairs should be performed by our Company or an authorized agent. It is the responsibility of users requiring service to report the need for service to our Company or to one of our authorized agents. Service can be obtained at: ______________________________________________________________ ______________________________________________________________ ______________________________________________________________...
  • Page 34 NOTICE: The Canadian Department of Communications label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operational and safety requirements. The Department does not guarantee the equipment will operate to the user's satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company.
  • Page 35 This page intentionally blank.
  • Page 36 “BETTER TECHNOLOGY MAKES BETTER SYSTEMS” Last Printing Date 01/02 Select Engineered Systems, Inc. 7991 West 26th Ave. Hialeah, FL 33016 Toll Free: 1-800-342-5737 In FL: 305-823-5410 Fax: 305-823-5215 www.selectses.com...
