Summary of Contents for Breezer POWER BREEZER MACH 4

  • Page 1 USER MANUAL Version 1.0...

  • Page 2: Table Of Contents

    Congratulations on your selection of a Power Breezer® evaporative cooler. We are proud of our products and have designed your Power Breezer for years of safe, reliable service. This user manual will instruct you in the proper operation and maintenance of your Power Breezer. Please read through this manual before operating your Power Breezer.

  • Page 3: Warnings

    • This Power Breezer can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the Power Breezer in a safe way and understand the hazards involved.

  • Page 4: Key Com Ponents

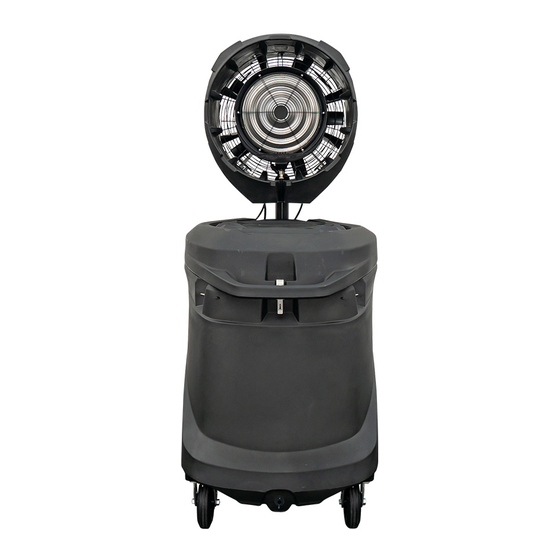

    Key Components I. KEY COM PONENTS Front View Fan head Atomizer Tank Lid Lid latch Tie down points (4) Transport handle Water tank Drain plug Front casters Rear View Fan Head Handles Fan head power cord Atomizer drain hose Control panel Water inlet hose Circuit breaker Power cord...
  • Page 5 Key Components Control Panel Fan Speed Atomizer (Misting) up/down on/off Power Head Rotation on/off on/off Storage View Fan head support pole Power cord holder Inside Water Tank View Water valve ENGLISH...

  • Page 6: Se Tup

    Setup II. SE TUP 1. Mounting the fan head: To set up your Power Breezer, you will need: • 2 people • An AC outlet • Access to water to fill the water tank Remember: • Lift fan head only by the head handles.
  • Page 7 Setup 2b. Finish opening the lid latch by pulling the upper portion of the latch forward and away from the lid. 3. Remove tank lid by first lifting up on the transport handle and then pulling forward. 4. Tilt up the four fan head handles, if they are folded down, prior to lifting the head.
  • Page 8 Setup 5a. To lift the fan head out of the water tank, each person should stand on opposite sides of Power Breezer. 5b. Both people should grasp the fan head by the fan head handles, as shown. Remember: • Lift fan head only by the head handles.
  • Page 9 Once installed, the atomizer (metal disk) will be facing the water tank, air will be blown over the water tank when the Power Breezer is turned ENGLISH...

  • Page 10: Using The Correct Outlet

    Setup 2. Using the correct outlet: Electrical current of 110v or 220v is required. For safety, only plug your Power Breezer into an outlet equipped with GFCI. DO NOT plug into standard outlet without a GFCI feature. GFCI Equipped Outlet...

  • Page 11: Routing Power And Water Lines And Replacing Tank Lid

    Setup 4. Routing power and water lines and replacing tank lid: 4a. Route the fan head power cord, atomizer drain hose, and water inlet hose through the openings in the back of the water tank as shown above. Tank Lid Tab WaterTank Notch Lid Latch...

  • Page 12: O Per At Ion

    The LED light for the power button will be lit and the fan blades will begin to slowly rotate to indicate the Power Breezer is powered on. 2b. Press the fan speed button to increase the fan speed.

  • Page 13: Adjusting The Misting Level

    Operation 3. Adjusting the misting level: 1a. Press the power button hold for one second if Power Breezer is not already on. 1b. Set fan speed to desired level. 1c. Locate the water valve. The water valve is inside the MAX FILL LINE water tank towards the rear.

  • Page 14: Disass Emb Ly

    • Never lift from the fan guards or metal disk. • The Fan Head weighs 86 lbs. 1a. Power off the Power Breezer by holding down the power button for one second. 1b. Unplug power cord.

  • Page 15: Dismounting Fan Head

    Disassembly 1. Dismounting fan head: Before you get started, be sure to lock both of the rear wheels by pressing down on the brake lever to set them to the ON position. 2a. Unlock lid latch. 2b. Remove tank lid by first lifting up on the transport handle and then pulling forward.
  • Page 16 Disassembly 3b. Carefully rest fan head on the edge of the tank opposite of the head support pole, as shown. Both people should grasp the fan head by the fan head handles, as shown. Remember: • At this step, lift fan head only by the head handles.

  • Page 17: Routing Power And Water Lines And Replacing Tank Lid

    Disassembly 2. Routing power and water lines and replacing tank lid: 2a. Route the fan head power cord, atomizer drain hose, and water inlet hose through the openings in the back of the water tank as shown above. Tank Lid Tab Water Tank Notch Lid Latch...

  • Page 18: Moving / Transporting Your Power Breezer

    Transporting V. MOVING / TRANSPORTING YOUR POWER BREEZER DO NOT reposition or move your Power Breezer by the fan head (if mounted) or the fan head support pole (if stored). Doing so may damage your Power Breezer. Only reposition or move your Power Breezer by the transport handle.

  • Page 19: Mai Nta Ini Ng Your Power Bre Ezer

    • If the inside of the water tank becomes slippery/slimy to the touch, drain the Power Breezer. You can also clean the water tank by putting a few drops of liquid soap in water and brushing the inside of the water tank with it.

  • Page 20: Wa R R Ant Y

    VIII. WA R R ANT Y Power Breezer Limited Warranty For two (2) years from date of shipment to the first purchaser, Breezer Holdings, LLC. (“Manufacturer”) warrants the fan, fan blades, fan motor, air straighteners and the polyethylene exterior of the Power Breezer to be free from defects in materials or workmanship.

  • Page 21: Contac T Infor Mation

    Contact Information IX. CONTAC T I NFO RMAT IO N General Information or Product/Installation Support Email: customerservice@breezercooling.com Phone: 844.233.5673 Visit: PowerBreezer.com/support For Sales Information sales@breezercooling.com Phone: 844.233.5673 User Videos www.youtube.com/powerbreezer www.powerbreezer.com Follow Us www.facebook.com/PowerBreezer www.twitter.com/PowerBreezer ENGLISH...
  • Page 22 PowerBreezer.com 6413 Congress Avenue, Suite 110 Boca Raton FL 33487 ©2019 Breezer Holdings, LLC. All Rights Reserved. Power Breezer® is licensed under U.S. Patent No. 6,789,787.
