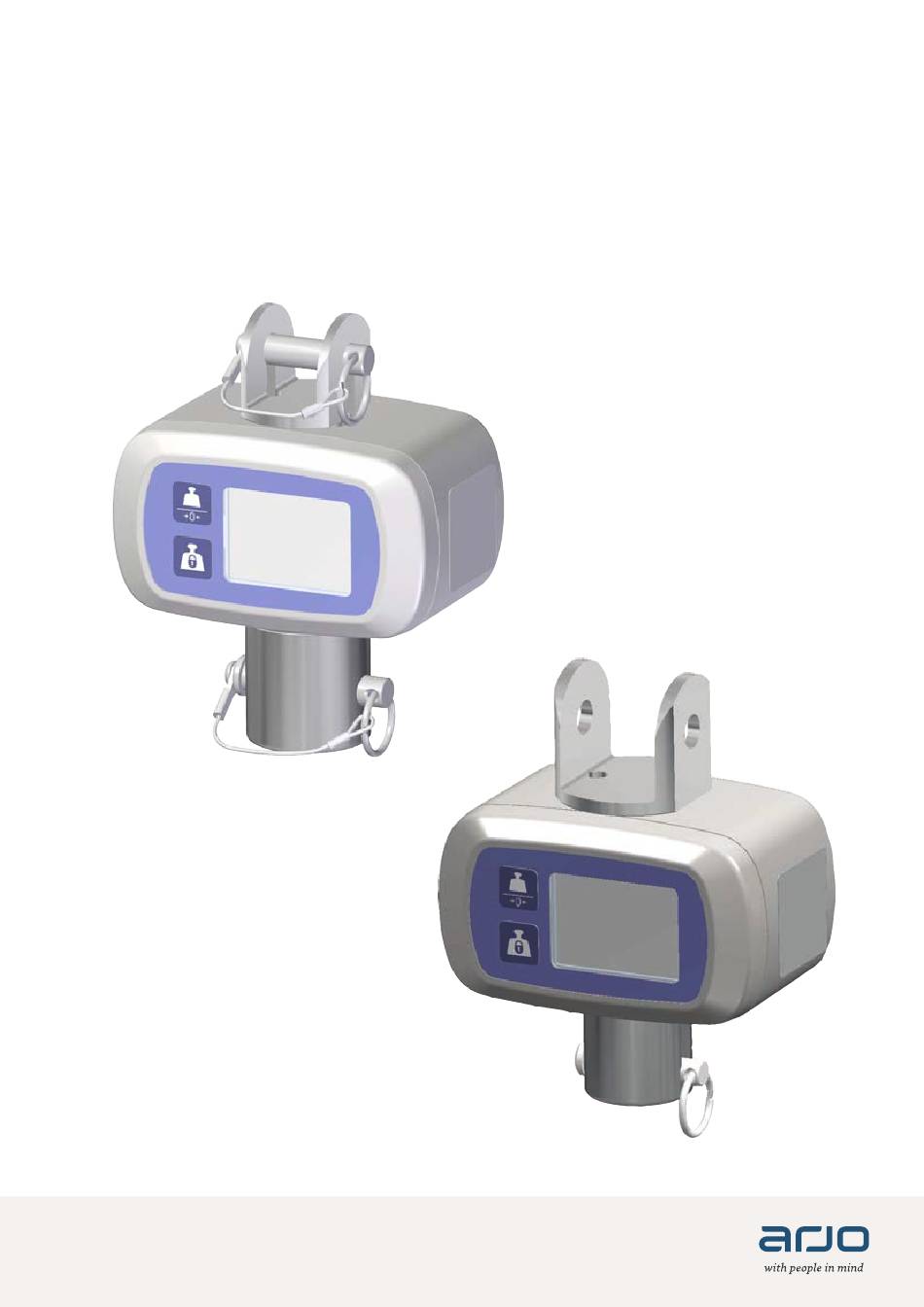

- Page 1 ASSEMBLY AND INSTALLATION INSTRUCTIONS Suspended Scale (2016 -) 001-00548-EN Rev 2 • 09/2019...
- Page 2 Design Policy and Copyright ® and ™ are trademarks belonging to the Arjo group of companies. © Arjo 2019. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice. The content of this publication may not be copied either whole or in part without the...
-
Page 3: Table Of Contents
Scale Overview and Models ......................6 Scale Models: 700-00511 and 700-00531 ..................7 Attachment to track lift with conventional spreader bar.............7 Scale Models: 700-00511 for Ergolift 600 ..................8 Attachment to compatible floor lift with conventional spreader bar...........8 Scale Models: 700-00526 and 700-00536 ...................9... -
Page 4: Foreword
Unauthorized modifications on any Arjo equipment Means: Failure to follow these instructions may can affect safety. Arjo will not be held responsible cause damage to all or parts of the system or for any accidents, incidents or lack of performance equipment. -
Page 5: Safety Instructions
Safety Instructions WARNING NOTE Refer to the exploded view corresponding To avoid injury, always follow the to your equipment for proper assembly allowed combination listed in the instructions. Instructions for Use (IFU). WARNING The Scale is intended to be used for patients whose weight is within a specified safe working load (SWL). -
Page 6: Scale Overview And Models
• 700-00531 (Class III - European market) • Maxi Sky 440* • Voyager* • Voyager Duo • V5 Duo • Ergolift 600 (only with scale model 700-00511) * Use portable adaptor, part number 700.05725. See the Portable Adaptor Installation Procedure for details. Scale Models: Compatible with products: •... -
Page 7: Scale Models: 700-00511 And 700-00531
Scale Models: 700-00511 and 700-00531 This applies to product Maxi Sky 600 (LD1XXXX), Voyager Duo (913XXXX) and V5 Duo (923XXXX). Attachment to track lift with conventional spreader bar. Strap 600-00905 Ø7/16 x 1 21/32” clevis pin & split ring 600-06151 Ø11 x 52... -
Page 8: Scale Models: 700-00511 For Ergolift 600
Scale Models: 700-00511 for Ergolift 600 Attachment to compatible floor lift with conventional spreader bar. 000.00980 Nylon flat washer 1/2 x 1/16 T 600-06151 Ø11 x 52 clevis pin & split ring Spreader bar WARNING To avoid injury, make sure that all clevis pins are correctly secured by... -
Page 9: Scale Models: 700-00526 And 700-00536
Scale Models: 700-00526 and 700-00536 This model applies to Maxi Sky 1000. Attachment to track lift (LFXXXXX and 912XXXX models only). NOTE Prior to installing the scale device on the track lift, remove the spreader bar block from the pulley. Refer to the lift’s Technical Manual 000.04410 M10 locknut... - Page 10 Intentionally left blank...
