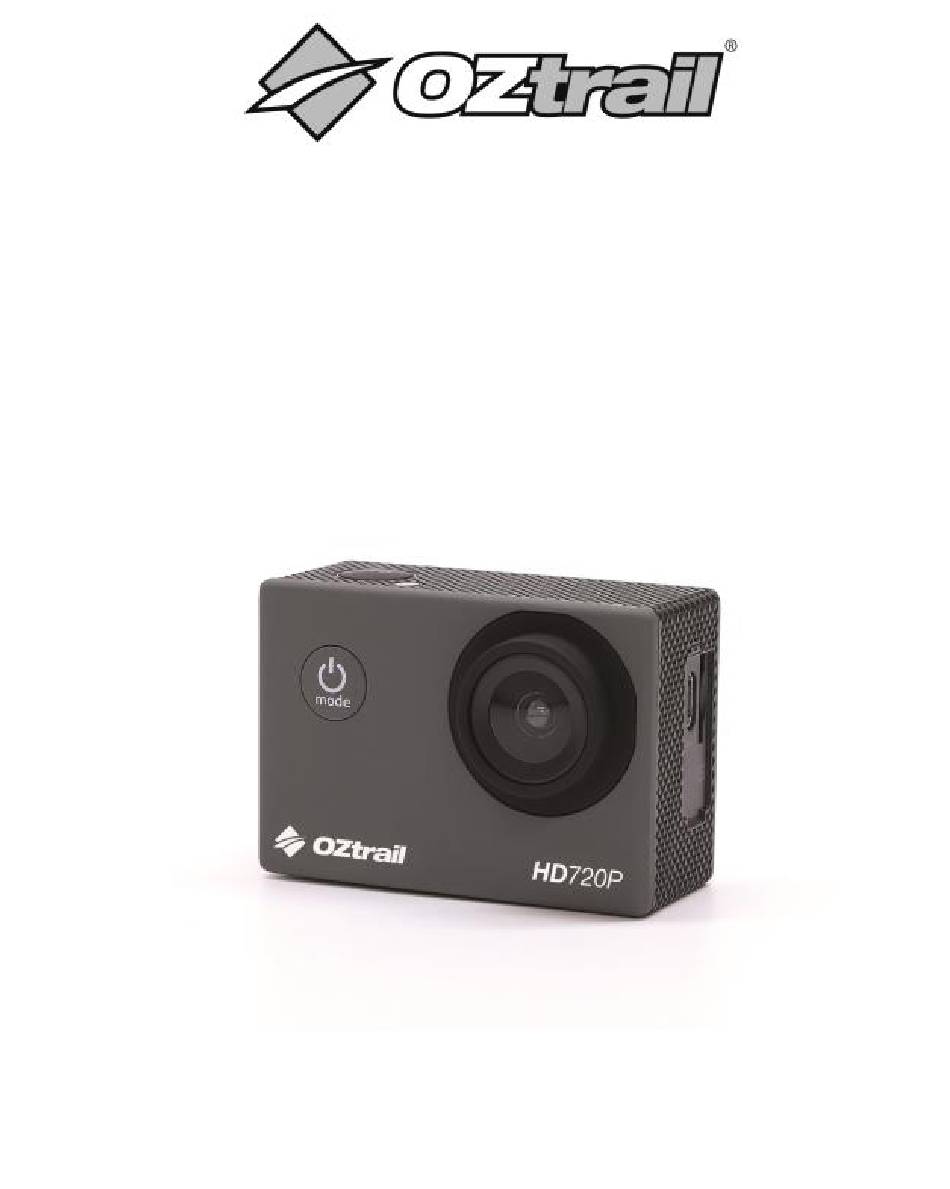

- Page 1 OWNERS MANUAL 720P Action Camera CAM-A072-F www.oztrail.com.au...
-
Page 2: Table Of Contents
CONTEN TS PAGE Contents Page Introduction Important Safety Precautions Product Specification Contents Getting to know your Camera Getting Started Camera Operation Connecting to a Computer Mounting Accessories Waterproof Case Troubleshooting Warranty... -
Page 3: Introduction
INTRODUCTI ON Congratulations on the purchase of your new camera. This manual contains important safety and operating information. Please read all the information carefully before you use the device to avoid accidents and keep it for future reference. Follow these important safety and operation instructions. - Page 4 yourself. Qualified personnel should perform repairs. • Disconnect or remove all power sources from the camera before cleaning. • This product is not intended for commercial use. Household/personal use only. • To prevent software failure, never disconnect the product from a PC while file transferring is in progress •...
-
Page 5: Product Specification
• The USB cord for the device should be unplugged from the computer when the unit is left unused for a long period of time. Attention: We have done our best to produce a complete and accurate manual. However, we cannot ensure that there are no errors or omissions during the printing process. - Page 6 • Auto ISO setting • File Format: AVI/JPG • Expandable Micro SD Slot up to 32GB • High-speed USB 2.0 interface • Built-in rechargeable lithium battery 900maH • Operation Temperature: -10°C to 40°C • Storage Temperature: 15°C to 35°C • Works with Windows 10, 8, 7, Vista and XP, Mac 10.2 above NOTE: As a result of continual improvements, the design and specifications of the product within may differ slightly from the unit illustrated on the packaging.
-
Page 7: Contents
CONTEN TS Please make sure that the items shown below are included in the package. -
Page 8: Getting To Know Your Camera
GETTING TO KNOW Y OUR CAMERA DEVICE OVERVIEW... - Page 9 OK Button Mode Button Lens USB Socket Micro SD Socket Top LED Indicator Bottom LED Indictor Preview Screen Down...
-
Page 10: Getting Started
GETTING STARTED BATTERY OPERATION 1. Make sure the battery is inserted in the camera. 2. Make sure the action camera is turned off. 3. To charge the internal battery, connect the action camera with the USB cable provided to a computer or a 1amp wall charger. - Page 11 INSERTING MIC RO S D C ARD This action camera does not have internal memory. A Micro SD (TF) card (Class 10) and above must be inserted for this action camera to operate and record, the camera will accept up to 32GB cards. 1.
-
Page 12: Camera Operation
ACTION CAMERA OPERAT ION START-UP/SHUTDOWN Press and hold the “Mode” button for 3 seconds, the screen will turn on. To Turn the action camera off Press and hold the “Mode” button for 3 seconds, the screen will turn off. NOTE: The action camera has a power saving setting and will automatically turn itself off after 3mins of inactivity to save power (this can be changed in the setting menu) MODES... - Page 13 Video mode Recording movie clips Capture mode Taking still images Playback mode Viewing the recorded files ACTION CAMERA SETTINGS You can edit the camera settings before taking photos or recording videos: 1. Press and hold “Mode” button to switch on the action camera.
- Page 14 MENU FUNCTION Sounds Allows you to change the sounds on the camera: Shutter :【On】/【Off】 Start-up: allows you to choose 3 different sounds where camera is turned on. Beep :【On】/【Off】 Volume：adjust the volume from 0 - 3...
- Page 15 Power Light Frequency should be set depending on Frequency your region: For Australia please ensure setting is on 50Hz, for USA 60Hz Power Save To save power, the video camera is turned off automatically after a period of time. After you select the "off " that means the power save function is switched off 【1min】/【...
- Page 16 files, removing the SD card during formatting may damage the card. 【Yes】/ 【No】 Reset Restores the action camera to default settings:【Yes】/【No】 Version Shows the software version of the camera VIDEO MODE 1. Turn on the action camera; the camera should automatically be set to video mode when camera is turned on.
- Page 17 setting, once memory capacity is reached, it will erase files taken from the beginning.) SETTINGS IN VIDEO MO DE While in video mode, press the “Down” button and the below settings will appear.
- Page 18 MENU FUNCTION Size Change the video resolution: 【1080p】/ 【720p】/ 【480p】 Loop While under the loop recording setting, once recording memory capacity is reached, it will erase files taken from the beginning. Set the loop recording time: 【On 】/【Off】 Exposure Set the exposure value manually to compensate for unusual lighting conditions ：...
- Page 19 PHOTO MODE 1. Turn on the action camera; the camera should automatically be set to video mode when camera is turned on. Press the “Mode” button to change to capture mode. 2. Take a still image by pressing the “OK” button. 3.
- Page 20 SETTINGS IN PHOTO MO DE While in photo mode, press the “Down” button to access the photo settings. MENU FUNCTION Resolution Allows you to change the image resolution: 【5M】/【3M】/【1M】 Date This function can be used to add a date and Stamp time to your pictures.
- Page 21 Time-lapse Enables time-lapse photography, it will take one photo per the below timing: 【Off】/【2sec】 / 【10sec】 Continuous Enables continuous images to be taken per Lapse the delay time: 【Off】 / 【2sec】/ 【3sec】/ 【5sec】/ 【10sec】 / 【20sec】 / 【30sec】 / 【60sec】 PLAYBACK MODE 1.
- Page 22 3. To review the Video File press the “Ok” button to start playing the video file, to pause the video press the “OK” button. Press the “Mode” button to stop playing the video file.
-
Page 23: Connecting To A Computer
CONNE CTING T O COMPUT ER 1. Insert the USB cable into the camera and the computer. 2. The camera will turn on and enter MSDC mode. 3. The driver will automatically install on your computer, the computer the removable disk icon should be displayed on screen. -
Page 24: Mounting Accessories
USING THE MOUNTING A CCESSORIES Bike Mount Helmet Mount Dash Mount... -
Page 25: Waterproof Case
WATERPROOF CASE CARE INSTRUCTIONS Before sealing the waterproof case, keep the camera housing’s rubber seal clean, a single hair or grain of sand can cause a leak. You can test by closing the case without inserting the camera. Submerse the case completely in water for about a minute. Remove the case from the water, dry off its exterior with a towel, and then open the case. -
Page 26: Troubleshooting
TROUBLESHOOTING Problem Solution The exposure from the Place your camera in a North or sun makes my images South facing location this will help not good. to prevent exposure issues from the sun. SD Card not capturing Please check that your SD is images/video suitable and format it before using I cannot upload images... - Page 27 The video files are very Please ensure you have slow and bad downloaded the latest version of resolutions when your media player, or try such playing on my computer programs as VLC media player, Windows media, QuickTime. Camera’s firmware isn’t Please check our website for any working updated firmware or alternatively...
-
Page 28: Warranty
WARRANTY OZtrail warrants this product against defects for a period of one year from the date of purchase. OZtrail will repair or replace the product, at its discretion, should a warrantable defect arise within the warranty period. If the exact model is unavailable a model of equivalent nature will be substituted at our discretion. - Page 29 You may also contact OZtrail Leisure Products, by phone: 1300 362 921, or in writing: PO Box 1110, Eagle Farm QLD 4009, by email: warranty@oztrail.com.au. The benefits under OZtrail’s warranty against defects are in addition to other rights and remedies under law in relation to goods.
