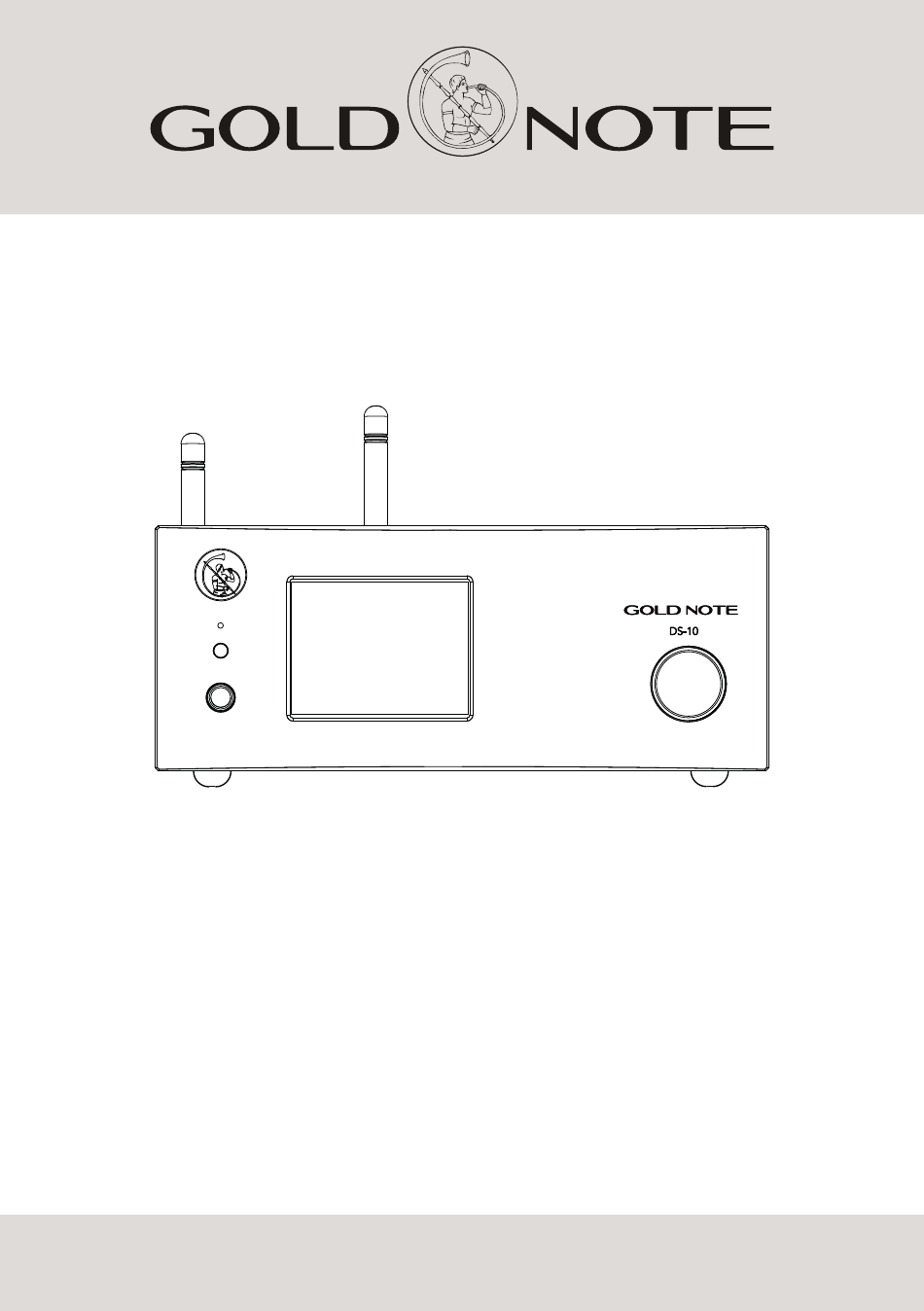

- Page 1 DS-10 HIGH-END DAC - STREAMER - LINE PREAMP - HEADPHONES AMPLIFIER OWNERʼS MANUAL...
-
Page 3: Table Of Contents
FRONT PANEL .............................. P. 7 REAR PANEL............................... P. 8 SELECT FUNCTIONS ............................. P. 9 REMOTE CONTROL............................. P. 10 DS-10 FEATURES ............................P. 11 CONTROL APP............................P. 12 NETWORK SETUP............................P. 17 CONNECTING OTHER SOURCES........................P. 19 IMPORTANT NOTES............................ -
Page 4: Package Content
PACKAGE CONTENT • AC cable • Ethernet cable • 1 Wi-Fi antenna • 1 Bluetooth antenna • Remote control + battery • User manual... -
Page 5: Introduction And Features
INTRODUCTION AND FEATURES AUDIO STREAMING JUST BECAME BETTER PREAMPLIFIER AND HEADPHONES AMP DS-10 is designed to cover the needs of the con- DS-10 also features an On/Off switchable High- temporary audiophile completing any audio system End audio analogue preamp stage. All the different... - Page 6 TANK MECHANICAL STRUCTURE DS-10 features a great mechanical structure made DS-10 features an easy set up Apple iOS and An- of solid machined steel and thick aluminum panels droid proprietary software for full control via...
-
Page 7: Specification
SPECIFICATION MAIN FEATURES MAIN CONNECTIVITY D/A Converter AKM AK4493 PCM up to LAN/WLAN (WiFi): 802.11b/g RJ45 32bit/768kHz and DSD512 native 10/100Mbps socket - Bluetooth 5.0 Streamer Network Player PCM and DSD Frequency response: 20Hz-20kHz +/-0.1dB SUPPORTED AUDIO FORMATS (NETWORK) THD – Total Harmonic Distortion: 0.001% max AIFF (.aif, .aiff, .aifc) Signal to Noise ratio: -125dB ALAC... -
Page 8: Front Panel

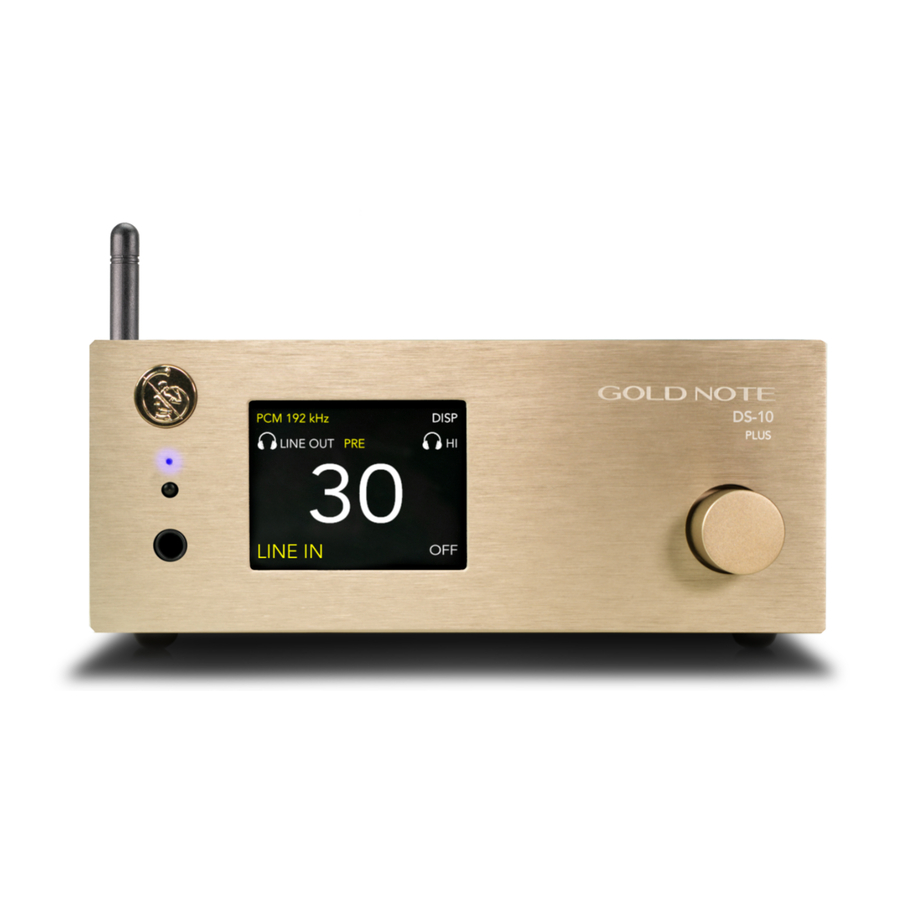

FRONT PANEL FRONT PANEL OVERVIEW DS-10 is an innovative D/A Converter, Streamer with a High-End headphones amplifier and Bluetooth 5.0. Everything has been designed to provide the best experience and thanks to the exclusive SKC (Single Knob Control) the unit becomes a friendly plug-and-play source that can be fully controlled even without the remote. -
Page 9: Rear Panel
REAR PANEL REAR PANEL OVERVIEW DS-10 features a wide selection of connections to offer the best versatility and become the core of a real High- End system that will deliver audio in true audiophile quality: - 7 digital inputs - 2 stereo analog outputs (XLR balanced and RCA unbalanced) -
Page 10: Select Functions
SELECT FUNCTIONS TURNING ON/OFF DS-10 To turn on/off the unit, press and hold the knob for 3 seconds. 3 SEC. PUSH SINGLE PUSH HOW TO SELECT THE FUNCTIONS 1. press the knob once to activate the SELECTION FRAME 2. turn the knob left or right until the desired function is highlighted by in white then press the knob to select it 3. -
Page 11: Remote Control
REMOTE CONTROL USING THE REMOTE CONTROL DS-10 is supplied with a Gold Note remote control to help you conveniently operate the DAC without even touching the knob located on the frontal panel. With the remote control you can fully access every function just like you would when using the knob. -
Page 12: Ds-10 Features
FEATURES AND FUNCTIONS DS-10 was developed using proprietary technologies and features designed to offer the best audiophile sound quality but also to achieve ease of use and versatility in order to always deliver a great performance with a large variety of loudspeakers. -
Page 13: Control App
DS-10 Remote Control App or search “Mconnect Control” on Apple App Store or Google PlayStore. IMPORTANT To use Gold Note DS-10 Remote app, the phone/tablet must be connected to the same network of DS-10. iOS QR CODE ANDROID QR CODE... - Page 14 DEVICE NAME CHANGE rename the device on the network LAN STATIC IP ADDRESS SETUP WIFI STATIC IP ADDRESS SETUP FIRMWARE UPDATE if there is a new update for the firmware the app DS-10 notifies it and let you update the...
- Page 15 CLOUD SETUP In CLOUD SETUP you will be able to turn ON/OFF all the streaming services available on DS-10 as: TIDAL , QOBUZ, DEEZER, VTUNER, SPOTIFY, MQA, ROON. You will also be able to turn ON/OFF the cloud storage services as: DROPBOX and ONEDRIVE.
- Page 16 Please be sure that the DS-10 is connected to the same network the mobile device is using. If the App doesn't show the DS-10 it is most likely due to the fact the mobile device is connected to a different network than the DS-10.
- Page 17 CONTROL APP CLOUD SETUP FAVORITES Use this button to add folders and tracks to your Favorites list. The folder/tracks will be then listed in the Favorites tab. You can find the Favorites tab in the bottom menu. MY PLAYLISTS New playlists can be created using this button when you are in the My Playlist screen.
-
Page 18: Network Setup
To use a Wired LAN connection simply plug the cable into the Ethernet port on the rear panel and you are ready to go. WI-FI CONNECTION VIA WPS The easiest way to connect DS-10 to your network via Wi-Fi is to use the WPS (Wi-Fi Protected Setup) function available on DS-10 and your router:... - Page 19 In case your router doesn't support the WPS function or you can't access it, use the Wi-Fi Access Point Mode: 1 - Press and hold for 5 seconds the WPS Wi-Fi Reset button on the rear panel of DS-10 and release it and wait when the blue led start flashing slow DS-10 will create its own wireless network.
-
Page 20: Connecting Other Sources
CONNECTING OTHER SOURCES CONNECTING SOURCES VIA DIGITAL INPUT You can connect digital sources to DS-10 using the digital inputs located on the rear panel. -
Page 21: Important Notes
IMPORTANT NOTES ATTENTION: The WiFi Interface must remain ON to control DS-10 via App, disabling it will cause the DS-10 to be impossible to reach via App even when using a cabled connection (LAN via Ethernet). The WiFi Interface allows the connection between the App and the DS-10 so we recommend to always keep it ON. -
Page 22: Warranty And Service
WARRANTY AND SERVICE WARRANTY To validate the warranty it is necessary to register the unit on the Gold Note web site within 15 days from the purchase in the dedicated area of the web page: www.goldnote.it/warranty If the unit is not registered correctly or has been purchased from a different country of the purchaser’s home address the unit will not be covered by any warranty and the registration will be refused. -
Page 23: Troubleshooting
See page 17 for more information. Make sure the RF antenna is correctly installed. It may be impossible to use the DS-10 with the Wi-Fi if the RF antenna is not installed. When using Wi-Fi, make sure the DS-10 is connected to the correct WLAN. -
Page 24: Important Safety Information
The power Chord supplied must be used only on this unit. Gold Note does not have responsibility for any improper use of this unit. This appliance has a serial number located on the rear panel. Please record the model and serial number and retain them for your records. - Page 25 IMPORTANT SAFETY INFORMATION 1 Read these instructions and store them. 11 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. 2 Heed all warnings. When a cart is used, use caution when moving the cart/apparatus 3 Follow the instructions.
- Page 26 NOTES...
- Page 28 Gold Note Audio Gold Note Akamai S.r.l. service@goldnote.it www.goldnote.it...
