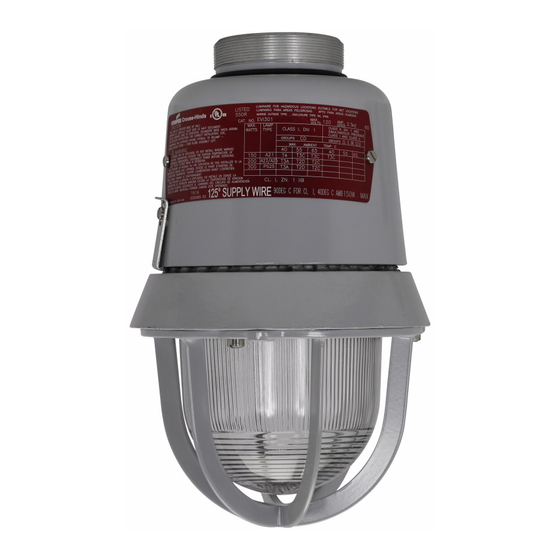

EVI SERIES INCANDESCENT LUMINAIRES
Installation & Maintenance Information
APPLICATION
EVI incandescent luminaires are suitable for use in the following
hazardous (classified) areas as defined by the National Electrical Code
(NEC®), Canadian Electrical Code (CEC):
• Class I Division 1 Groups C & D
• Class I Zone 1 IIB
• Class II Groups E, F, G; Simultaneous Presence
• Class III
Refer to the Luminaire nameplate for specific classification information,
maximum ambient temperature suitability and corresponding operating
temperature (T-Code).
EVI luminaire Type 4X / IP66 construction is designed for use indoors
and outdoors in Marine and Wet locations, where moisture, dirt,
corrosion, vibration and rough usage may be present.
To avoid the risk of fire, explosion, or electric shock, this
product should be installed, inspected, and maintained by a
qualified electrician only, in accordance with all applicable electrical
codes.
To avoid electric shock:
Be certain electrical power is OFF before and during installation and
maintenance.
Luminaire must be supplied by a wiring system with an
equipment grounding conductor.
To avoid burning hands:
Make sure globe and lamp are cool when performing maintenance.
To avoid explosion:
Before opening, electrical power to the luminaire must be turned off.
Keep tightly closed when in operation.
Make sure that the supply voltage is the same as the luminaire
voltage.
Do not install where the marked operating temperatures exceed the
ignition temperature of the hazardous atmosphere.
Do not operate in ambient temperatures above those indicated on the
luminaire nameplate.
Install luminaire with lamp base up (within 25 degrees of vertical
position).
Use only the lamp type and wattage specified on the luminaire
nameplate.
Use proper supply wiring as specified on the luminaire nameplate.
All gasket seals must be clean.
Prevent globe shattering by avoiding scratching or chipping the
tempered explosionproof glass.
IF 1452 • 06/03
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
WARNING
WARNING
WARNING
Copyright © 2003, Cooper Industries, Inc.
EVI301 Series Luminaires are suitable for use with the following
MEDIUM base lamps
• 150W A21 maximum
• 200W A23/A25 maximum
• 300W PS25 maximum
EVI301: max supply voltage 120V
EVI301with suffix /250: max supply voltage 250V (for export)
EVI501 Series Luminaires are suitable for use with the following
MOGUL base lamps:
• 300W PS35 maximum
• 500W PS40 maximum
EVI501: max supply voltage 277V
BODY LOCKING
SET SCREW
LOCKING
TAB
GLOBE
ASSEMBLY

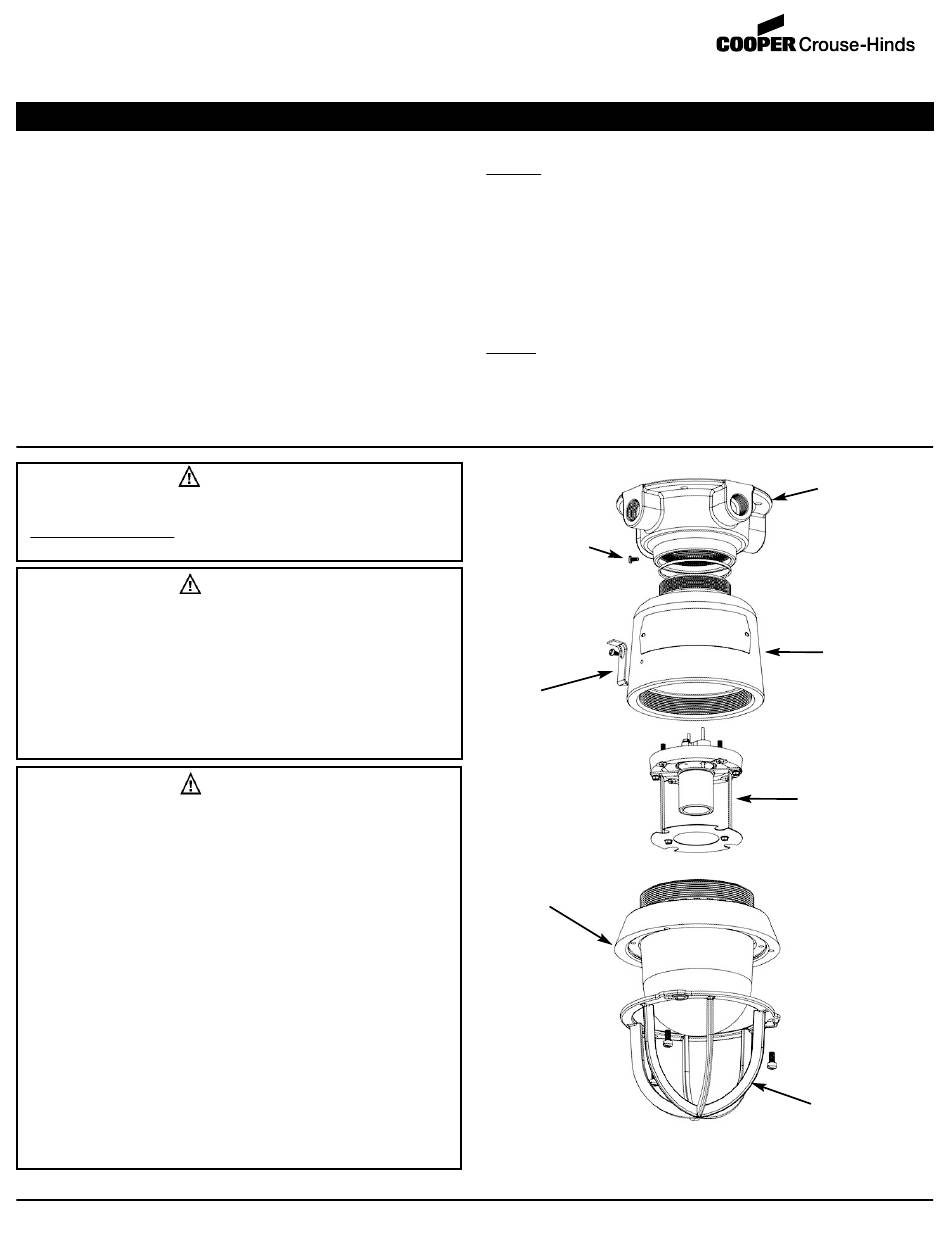

FIGURE 1 - EV1 Luminaire (Ceiling Mount Shown)
Note: Refer to Figure 1 during installation and maintenance
IF 1452
MOUNTING
MODULE
(CEILING SHOWN)
BODY
CONNECTION
BLOCK / LAMP
RECEPTACLE
ASSEMBLY
GUARD
Page 1
