SAFETY
•
Please read these installation instructions carefully before proceeding.
•
Keep guide for future reference.
•
If you are unsure about any part of the installation, please contact our technical department on 01460 258 682
•
Incorrect installation will invalidate the guarantee.
•
Make sure there are no hidden pipes or cables in the floor or walls where you intend to drill.
•
Wear safety goggles, shoes and appropriate clothing.
CARE
•
Please protect during the shower tray installation.
•
Please do not walk on the tray with shoes on.
•
Only use mild household detergents to clean the product.
•
Do not use polish or abrasive cleaners on the surface of the tray.
•
Ensure the shower tray is thoroughly cleaned after installation and before first use.

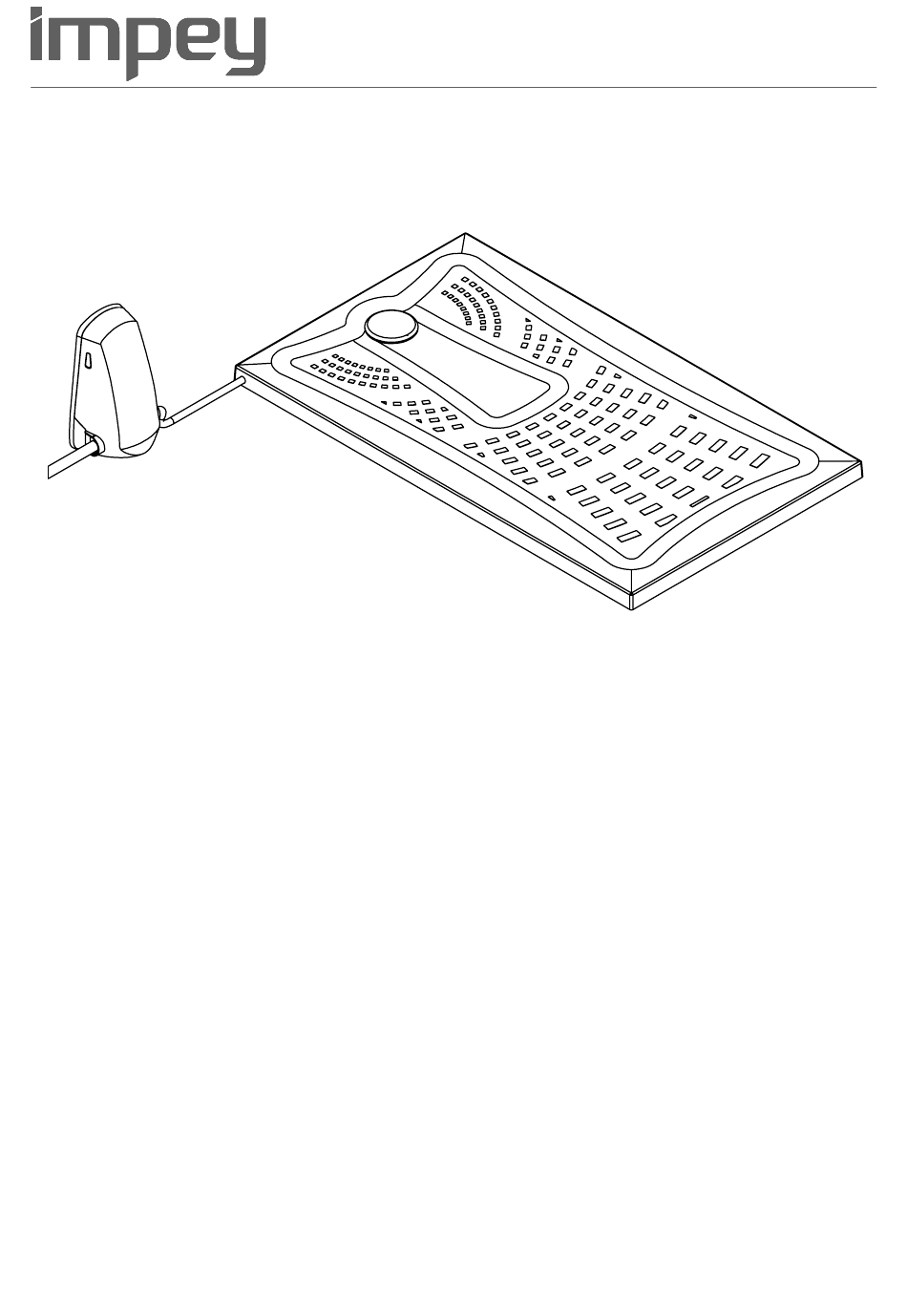

Radiate Shower Tray
Installation Guide
Issue 2
16/12/15
Advertisement
Table of Contents
Summary of Contents for impey Radiate Shower Tray
- Page 1 Radiate Shower Tray Installation Guide SAFETY • Please read these installation instructions carefully before proceeding. • Keep guide for future reference. • If you are unsure about any part of the installation, please contact our technical department on 01460 258 682 •...
- Page 2 Radiate Shower Tray Installation Guide Component Content List Drain Cap Cover Suggested Equipment needed: Spirit level, pencil, silicone sealant, tape measure, knife, 15mm copper tube, pipe bender, ABS solvent cement M5 Screw trowel, power drill, selection of drill bits. Waste Inlet...
- Page 3 Radiate Shower Tray Installation Guide Determine which corner the tray is to be fitted into. Measure and cut the required length of fabric tile This will establish which edges the fabric up stand up-stand. will be attached to. Do no stretch as you apply.
- Page 4 Radiate Shower Tray Installation Guide Correct Waste Assembly The waste outlet must be aligned as shown in this illustration. Correct Correct If the waste is assembled as shown here it will not tighten correctly and result in a leak. Under normal circumstances it should not be possible to assemble in this manner.
- Page 5 Radiate Shower Tray Installation Guide Correct The waste outlet must be aligned as shown in these 2 illustrations. Correct Any direction other than shown here is incorrect and may result in a leak. Correct Correct This illustration shows an example of incorrect alignment.
- Page 6 Radiate Shower Tray Installation Guide IMPORTANT: Please check for leaks before the tray is fully fitted With reference to page 5 (Fig1) determine the pipe exit Feed the pipe through the drilled hole and connect to point and drill a hole in the side of the tray. This should...
- Page 7 Due to limited clearance space under the shower tray push-fit fittings must not be used. Do not use elbow fittings, pipe-work should be bent using a pipe bender to reduce the risk of blockages. We recommend installing with Impey half-height shower doors and ramp kit for easy access. Page 6...
- Page 8 If you require any further information about this product please contact our technical department on: 01460 258 682 Impey Showers Conquest Business Park Ilton Somerset TA19 9EA TEL: 01460 256090 FAX: 01460 259800 info@impeyshowers.com www.impeyshowers.com...
