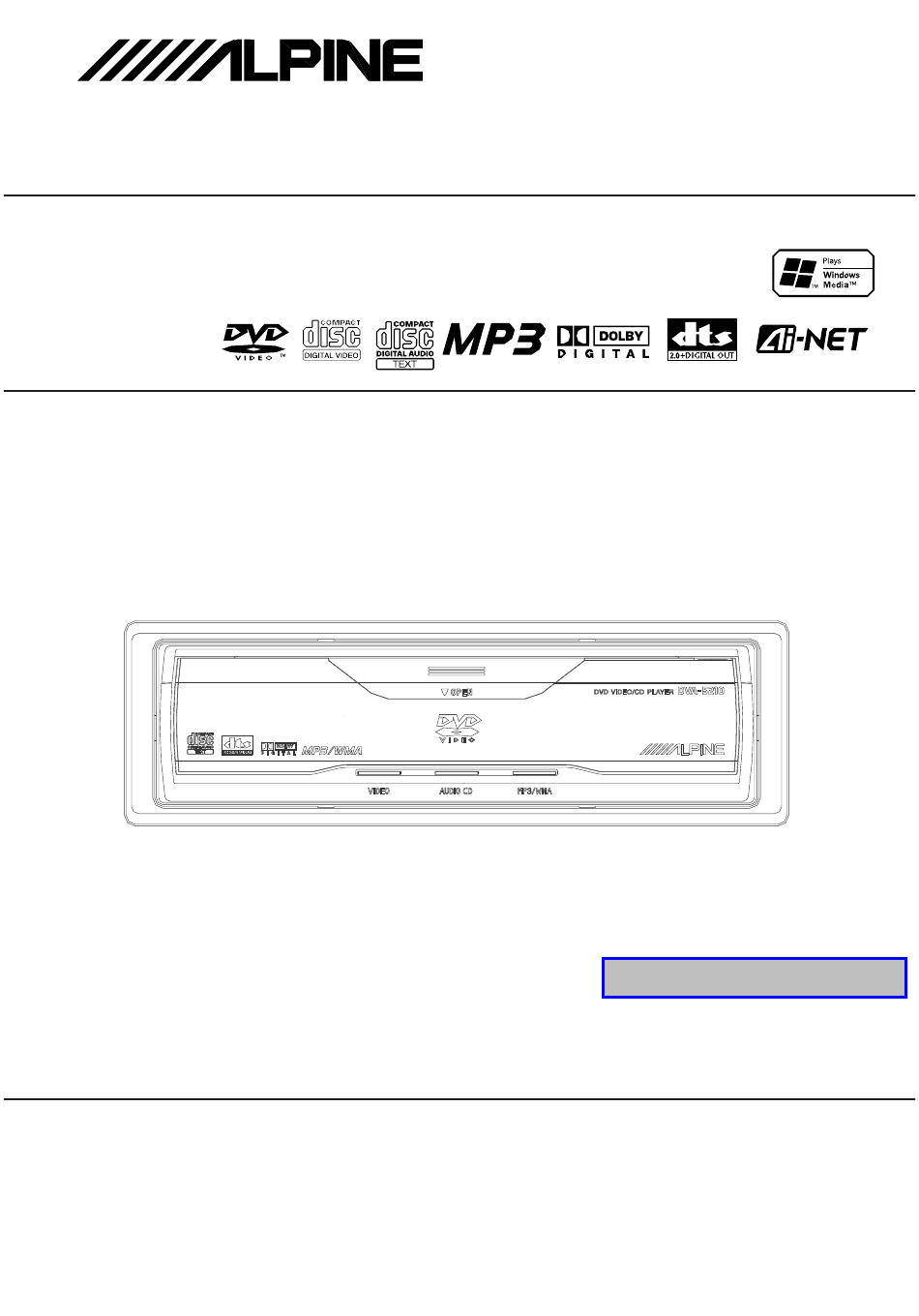

SERVICE MANUAL DVD-VIDEO/CD/MP3/WMA Player TO ALPINE Home Page 3 / 04-A 68E36313S01 DVA-5210...
Page 2
<Cautions for Safe Repair Work> The following cautions will prevent accidents in the workplace and will ensure safe products. *The symbols indicate caution is needed to prevent injuries and damage to property. The symbols and their meanings follow. If you ignore this symbol and handle the product incorrectly or unsafely, Warning serious injury or death may result.
DVA-5210 Contents Packing Assembly Parts List Packing Method View Specifications 5 , 6 System Connections 7 to 10 Extension Cable Block Diagram Parts Layout on P.W.Boards and Wiring Diagram 13 to 16 Schematic Diagram 17 to 25 Terminal Voltage of IC/ TR...
DVA-5210 Packing Assembly Parts List Symbol Description Symbol Description Part No. Part No. 101-1 03S60820Y16 SCR,MCH 5X8 ZN A 15D00529K02 CASE,INNER 101-2 46A70667Y01 STUD,BOLT 01T75472Y01 ASSY,REMO RUE-4201 101-3 02B70670Y01 NUT,CUS 5X5.5 ZN A 01T25634Y02 ASSY,WIRE VIDEO 2000 101-4 60S70585F01 BAT,LIT.3V (CR2025)
DVA-5210 <VIDEO> Signal system ............................PAL System Flash signal Output Voltage ................... VCD (HLV-402) : 1±0.15V DVD (V-509) : 1±0.15V Flash signal Frequency Response ..............VCD (TVD-581A) : 2MHz : -1±2dB DVD (TDV-540A) : 6MHz : -3±2dB Flash signal S/N Ratio ......................VCD (HLV-402) : 45dB DVD (V-509) : 50dB <Pickup>...
Page 7
Setting the System Switch Switch to operate from either an Ai-NET compatible head unit or Ai-NET compatible AV head unit connected to this unit. Be sure to set the system switch before fastening the DVA-5210 in place. Disconnect the power plug.
Page 8
Use the head unit’s analog output (Front or rear) connected to the analog input of the processor. • When connecting only to a digital audio processor (with a non-Alpine head unit or Alpine head unit without Ai-NET), it is possible to use both an optical fiber cable and an Ai-NET output cable.
Page 9
Only when connecting with rear monitor Setting of DVA-5210 The DVA-5210's system settings must be made after connections are completed. Before fixing the unit in place, refer to “ Setting the System Switch ” on OWNER'S MANUAL and “ Setting the Ai-NET ” on OWNER'S MANUAL.
Page 10
Only when connecting with rear monitor Setting of DVA-5210 The DVA-5210's system settings must be made after connections are completed. Before fixing the unit in place, refer to “ Setting the System Switch ” on OWNER'S MANUAL and “ Setting the Ai-NET ” on OWNER'S MANUAL.
DVA-5210 Extension Cable * When repairing or measuring the voltage of this unit, connect with the Extension Cable as shown in below. DVD Deck Mechanism Extension Cable (01E35217S01) Main P.W.Board TO CONTENTS - 11 -...
DVA-5210 Block Diagram CH8001 ROMOTE IN BATT BATT BATT 2 INPUT PWR+9V AND GATE P-CONT1 DVD ACK P-CONT2 DVD DI BATT SERVO7V SERVO +7V SERVO 7V P-CONT2 DVD2V SERVO5V SERVO+5V SERVO 5V DVD+5V DVD5V DVD+2V P-CONT4 VUCOM BATT3.3V P-CONT4 BATT3.3V...
Page 13
Parts Layout on P.W.Boards and Wiring Diagram (1/4) DVA-5210 TO CONTENTS MAIN P.W.Board (Component Side View) Orange Color Pattern:Component Side Pattern Blue Color Pattern:Foil Side Pattern - 13 -...
Page 14
Parts Layout on P.W.Boards and Wiring Diagram (2/4) DVA-5210 TO CONTENTS MAIN P.W.Board (Foil Side View) TP3025 TP8032 TP8033 TP8031 TP3016 TP3015 TP3014 TP3012 TP3026 TP3027 TP8034 TP8035 RND2001 TP3011 TP3010 TP3009 TP8037 TP3017 TP3019 TP3018 TP8036 L2007 R2030 TP2005...
Page 15
Parts Layout on P.W.Boards and Wiring Diagram (3/4) DVA-5210 TO CONTENTS FRONT P.W.Board (Component Side View) LD4010 SW4002 SW4001 LD4001 LD4002 LD4003 LD4004 ZD4003 ZD4004 ZD4006 ZD4005 R4003 R4014 R4010 R4009 LD4008 LD4007 LD4009 FRONT P.W.Board (Foil Side View) Orange Color Pattern:Component Side Pattern...
Page 16
Parts Layout on P.W.Boards and Wiring Diagram (4/4) DVA-5210 TO CONTENTS MAIN-LSI P.W.Board MAIN-LSI P.W.Board (Foil Side View) (Component Side View) FPC,LOAD P.W.Board (Foil Side View) R121 R128 SW405 R120 R118 R129 R119 R127 CB101 R123 R208 RA101 TP406 RA104...
Page 33
DVA-5210 (DVD Deck Mechanism) NOTE : DATA, ADDRESS, DIGITAL, PWM : Low/High switching Digital Signal by 0V/3.3V ANALOG : usually changing Signal RF : High-frequency RF Signal IC201 IC301 CLOCK 3.29 4.83 3.28 1.63 3.27 3.15 1.64 3.27 ANALOG ADDRESS...
Page 34
DVA-5210 IC401 IC402 3.29 3.28 3.29 DATA 3.29 DATA 3.29 DATA 3.23 DATA 3.22 3.29 ADDRESS 1.65 ADDRESS 3.29 DATA 1.71 ADDRESS DATA ADDRESS IC403 DATA 2.99 ADDRESS DATA 3.3.6 ADDRESS 1.37 ADDRESS 1.63 ADDRESS 1.63 3.28 ADDRESS 3.29 3.23 1.64...
Page 35
DVA-5210 IC601 IC701 3.06 1.68 6.97 3.06 1.65 3.08 6.87 1.33 3.08 6.87 3.37 3.08 6.87 6.97 3.08 ANALOG 1.26 ANALOG Q506 ANALOG 3.05 ANALOG 6.86 ANALOG 4.69 3.05 4.81 3.27 Q507 6.87 3.56 3.05 ANALOG 2.33 6.85 ANALOG 6.85...
Page 36
DVA-5210 Description of IC Terminal D70F3032BY : IC5001 Symbol Terminal Description AI-RS RS (register selection) output terminal for AI-NET BUS-IC. AI-RESET RESET output terminal for AI-NET BUS-IC. u-CTL Power supply output control terminal for ACC+5V. DVD-CS CS (tip select) output terminal for DVD BE.
Page 37
DVA-5210 Symbol Terminal Description DVD-VIDEO LED output control terminal for DVD-VIDEO. AUDIO-CD LED output control terminal for AUDIO-CD. MP3/WMA LED output control terminal for MP3/WMA. No connect terminal. No connect terminal. KEY-1 Hard key input terminal. No connect terminal. No connect terminal.
Page 38
DVA-5210 MN102H73G : IC401 (DV33M01B) Symbol Terminal Description No connect terminal. CPUDT0 I/O Data input/output-0 terminal. CPUDT1 I/O Data input/output-1 terminal. CPUDT2 I/O Data input/output-2 terminal. CPUDT3 I/O Data input/output-3 terminal. Power supply terminal. GND potential supply terminal. CPUDT4 I/O Data input/output-4 terminal.
Page 39
DVA-5210 Symbol Terminal Description No connect terminal. Power supply terminal. TEST3 TEST2 TEST terminal. TEST1 TEST0 FG signal input terminal. FEPSENS AN8709 SENSE signal terminal. CPUDTIO AN8709 CPUDTIN signal terminal. AN8709 SCK signal terminal. (SBD) YDC Flash writer SBD signal terminal.
DVA-5210 Exploded View (DVD Deck Mechanism) (DV33M01B) TO PARTS LIST TO CONTENTS - 42 -...
Page 43
DVA-5210 Electrical Parts List * Each parts on P.W.Board are described in order of the reference number. =======MAIN P.W.Board BZ8001 50T15447Y02 BUZZER,PKM13EPY -R5 C2001 08S45676W80 CAP,CER 223K-B1E -CP C2002 08S45676W80 CAP,CER 223K-B1E -CP C2003 08S45677W60 CAP,CER 102J-CH1H-CP C2004 08S65674Y03 CAP,CER 225KX5R1A-CP...
Page 64
DVA-5210 Cabinet Assembly Parts List Note : * The part that has not PART NUMBER will not be supplied. 13C04166K01 NOSE,PIECE ASSY - - - - - - - - - - - COVER,TOP - - - - - - - - - - -...
Page 65
DVA-5210 DVD Deck Mechanism Assembly Parts List Note : The part that has not PART NUMBER will not be supplied. 01A51490Y01 ASSY,RIV GUIDE TOP - - - - - - - - - - - CHASSIS,TOP 41A60338Y01 SPRING,DRIVE F-L 41A60339Y01...
