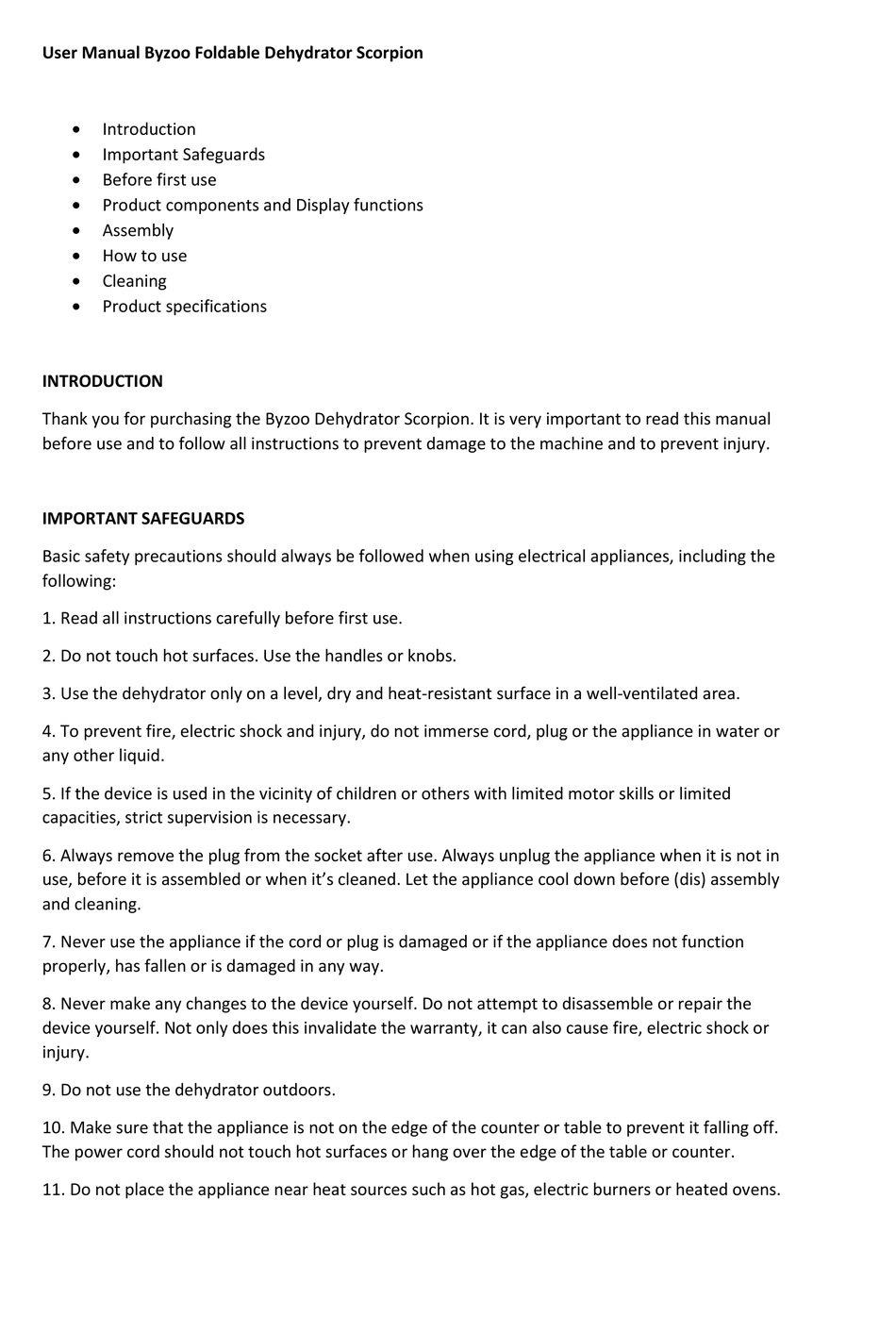

User Manual Byzoo Foldable Dehydrator Scorpion
Introduction
Important Safeguards
Before first use
Product components and Display functions
Assembly
How to use
Cleaning
Product specifications
INTRODUCTION
Thank you for purchasing the Byzoo Dehydrator Scorpion. It is very important to read this manual
before use and to follow all instructions to prevent damage to the machine and to prevent injury.
IMPORTANT SAFEGUARDS
Basic safety precautions should always be followed when using electrical appliances, including the
following:
1. Read all instructions carefully before first use.
2. Do not touch hot surfaces. Use the handles or knobs.
3. Use the dehydrator only on a level, dry and heat-resistant surface in a well-ventilated area.
4. To prevent fire, electric shock and injury, do not immerse cord, plug or the appliance in water or
any other liquid.
5. If the device is used in the vicinity of children or others with limited motor skills or limited
capacities, strict supervision is necessary.
6. Always remove the plug from the socket after use. Always unplug the appliance when it is not in
use, before it is assembled or when it's cleaned. Let the appliance cool down before (dis) assembly
and cleaning.
7. Never use the appliance if the cord or plug is damaged or if the appliance does not function
properly, has fallen or is damaged in any way.
8. Never make any changes to the device yourself. Do not attempt to disassemble or repair the
device yourself. Not only does this invalidate the warranty, it can also cause fire, electric shock or
injury.
9. Do not use the dehydrator outdoors.
10. Make sure that the appliance is not on the edge of the counter or table to prevent it falling off.
The power cord should not touch hot surfaces or hang over the edge of the table or counter.
11. Do not place the appliance near heat sources such as hot gas, electric burners or heated ovens.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Scorpion and is the answer not in the manual?

Questions and answers

Summary of Contents for Byzoo Scorpion

  • Page 1  Product specifications INTRODUCTION Thank you for purchasing the Byzoo Dehydrator Scorpion. It is very important to read this manual before use and to follow all instructions to prevent damage to the machine and to prevent injury. IMPORTANT SAFEGUARDS Basic safety precautions should always be followed when using electrical appliances, including the following: 1.
  • Page 2 12. Do not use the appliance for other than its intended use. 13. Never clean the components of the dehydrator with scouring pads or other abrasives. Pieces can come off and then enter the electrical part of the dehydrator. This can cause damage or electric shock.
  • Page 3: Before First Use

    BEFORE FIRST USE 1. Read all instructions and important safeguards first. 2. Remove all packaging materials and check if all parts are present and undamaged. 3. Keep the packaging materials away from children. 4. Wipe the surface with a wet cloth. Do not wash the fan or heating element at the back of the unit. 5.
  • Page 4 PARTS 1. Panel – lower base 2. Left panel 3. Right panel 4. Base with digital Control Panel 5. Brackets left panel 6. Brackets right panel 7. Top panel 8. Front cover Display functions Power ( ) – turns the dehydrator on and off Temperature –...
  • Page 5 ASSEMBLY Step 1: Place the lower base panel #1 on a stable, flat surface. Step 2: Insert the left panel #2 onto the left groove of base panel #1. Hook the bottom latches properly. Ensure plastic handle is positioned at the top. Step 3: Insert the right panel #1 onto the right groove of base panel #1.
  • Page 6 Step 4: Place the dehydrator base with digital control panel #4 on the rear side between the left and right panels #2 en #3. Ensure the fan is on the inside of the dehydrator and there is no space between the panels.
  • Page 7 Step 7: Insert the top panel #7 on top of the edges of the left panel #2 and right panel #3. Ensure the lip of the panel is facing the front of the dehydrator, facing opposite of the control panel. Secure all remaining latches on both panel #2 and #3.
  • Page 8 Step 10: Insert the power cord. To disassemble you need to folow these assembly steps in reverse order.
  • Page 9 HOW TO USE 1. Place the prepared ingredients on the drying trays. Make sure the trays are not overloaded and there is enough space between the ingredients so that they do not overlap. 2. Slide the loaded trays into the dehydrator. 3.
  • Page 10 CLEANING 1. Clean the front cover (door) and drying trays in warm water with detergent. 2. Use a soft brush to remove sticky food from the drying trays. 3. Wipe the surface of the body with a wet cloth. 4. The fan and heating element cannot be washed. 5.
  • Page 11: Product Specifications

    PRODUCT SPECIFICATIONS Brand Byzoo Model Scorpion Description Foldable Dehydrator Material Stainless Steel Display Digital with touchpad Power 120 V – 60 Hz – 1000W Temperature Adjustable between 35°C and 70°C Drying Space 1,5 m² Trays 10 Stainless Steel Tray capacity...
