Related Manuals for Boneco F220
Summary of Contents for Boneco F220
- Page 1 F220/F230 MANUAL READ AND SAVE THESE INSTRUCTIONS LIRE ET SAUVEGARDER CES INSTRUCTIONS LEA Y GUARDE ESTAS INSTRUCCIONES...
- Page 2 Instructions for use Mode d’emploi Instrucciones de uso...
- Page 3 INSTRUCTIONS FOR USE BONECO F220 / F230...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Technical data Introduction Items included Overview and part names Start-up Handling Handling Alignment Height adjustment Positioning tips Notes on output Air-conditioning System (AC) Fresh air Multiple floors Rooms with high ceilings Cleaning Safety instructions Cleaning the housing Cleaning the fan blades Disassembly and storage... -
Page 5: Technical Data
TECHNICAL DATA Technical data* Model BONECO F220 – BONECO F230 Power supply voltage 120V ~ 60Hz Power consumption 33 W (max. level) Operation noise level 58 dBA (max. level) Air flow 742 CFM (1260 m / h) Air-speed 13 ft./sec (3.9m/s) Dimensions L×W×H... -
Page 6: Introduction
The elegant design harmonizes with any decorative style so that you can use your BONECO Air Shower Fan throughout the entire year. We hope you enjoy your new BONECO Air Shower Fan! -
Page 7: Overview And Part Names

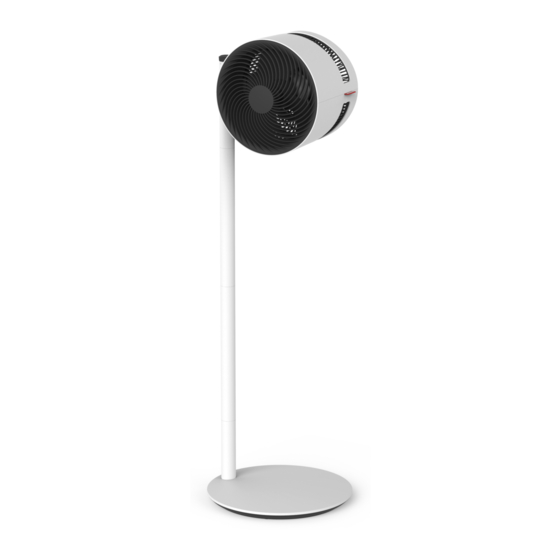

OVERVIEW AND PART NAMES 1 Output regulator 2 Fan unit 3 Removable connector piece 4 Base with power cord BONECO F220 BONECO F230 Air Shower Fan Air Shower Fan... -
Page 8: Start-Up
Only place the base on a stable, level surface. Insert the connector piece into the base. Set the fan unit onto the connector piece. BONECO F220 and BONECO F230 are only different in that the BONECO F230 includes a second connec- tor piece. -
Page 9: Handling
HANDLING ALIGNMENT HEIGHT ADJUSTMENT All BONECO Air Shower fans are designed for easy han- The fan unit can be manually tilted 270 degrees. All electrical components are completely integrated in the dling. The output is adjusted in four levels using a single connector. -
Page 10: Positioning Tips
In the summer, it can become hot and muggy on the upper performance fan that can move large amounts of air. ways. Use the BONECO Air Shower Fan to move the warm floors. The powerful BONECO Air Shower Fan directs the Making use of this feature: Guide the air in a specific di- air towards the air-conditioning system. -
Page 11: Cleaning
To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device. CLEANING THE HOUSING All BONECO Air Shower fans are designed for low-main- tenance operation, even after years of use. In most cases, 3. Loosen the safety screw in the middle clockwise. -
Page 12: Disassembly And Storage
Please note that the removable connector pieces are Storage is easiest and most efficient when you use detachable. When moving the unit to a new location, the original packaging. Store the BONECO Air Shower disassemble the unit into the detachable parts, Fan in a dry place.
