Instruction Sheet

Introduction

The model PD108-311 Cloning Box is a handheld

device that copies the setup information from a

sample LCD television, connects to another TV, and

then reprograms (transfers) that setup information

directly into the target television duplicating the

original sample TV. Up to 5 different TV setups can

be stored and used to program an installation of

multiple large screen PDI LCD televisions installed

throughout a hospital.

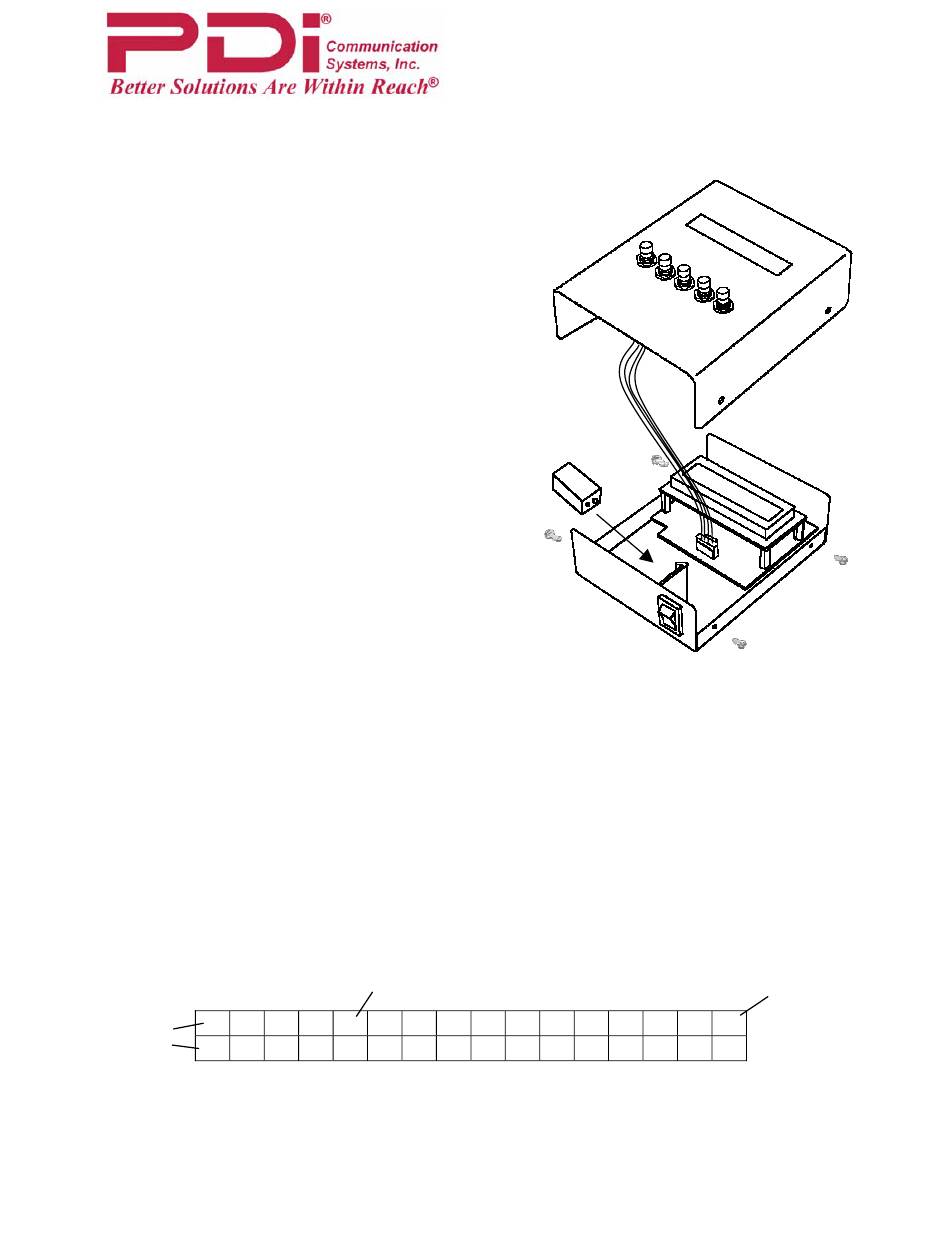

Battery Installation

The Clone Box operates using a 9-volt battery.

1. Remove 4 screws located two per side on the

Cloner.

2. Separate the top and bottom box halves. Use

caution as the halves are connected together

via a wiring harness.

3. Locate the battery box inside the bottom half

next to the power switch. Install a fresh 9-volt

battery.

4. Mate the top and bottom box halves and

secure using 4 screws.

5. Turn the Power Switch On. The display

should illuminate showing the memory block

status and baud rate. If the display does not

illuminate, verify correct battery installation

and/or replace with a new battery.

6. Always turn the Power Switch Off to extend battery life.

Connect Clone Box to TV

The Clone Box connects to the TV using an RJ-45 data cable supplied with the unit.

1. Verify the Clone Box is powered Off.

2. Connect one end of the cable to the "COMM" port located at the top of the Cloner.

3. Connect the other end of the cable to the "COMM" port located on the back connector

edge of the TV.

Storing TV Setup

The Clone Box stores 5 different TV setups. An individual setup for Maternity, Pediatrics, Waiting

Rooms, etcetera, might each be stored and used to mass program groups of televisions

accordingly. Each setup is stored in a memory "BLOCK" inside the clone box. The clone box

display uses two lines – a command line and a status line.

T V

Command

█ █ █

Status

1. With the Clone Box connected to the sample TV. Turn both the TV and Clone Box On.

The TV's screen will blank.

2. Press the Clone Box "DIR" direction button and select "TV → BLOCK 1" indicating

transfer from the TV into the clone box block memory.

Direction

→

L O C K

Page 1 of 2

Cloner Box

Model: PD108-311

Document Number: PD196-087 Rev 1

0 %

Battery

Level

▓

Table of Contents

Need help?

Do you have a question about the PD108-311 and is the answer not in the manual?

Questions and answers

Summary of Contents for PDi PD108-311

Page 1 Model: PD108-311 Document Number: PD196-087 Rev 1 Instruction Sheet Introduction The model PD108-311 Cloning Box is a handheld device that copies the setup information from a sample LCD television, connects to another TV, and then reprograms (transfers) that setup information directly into the target television duplicating the original sample TV.
Page 2 Cloner Box Model: PD108-311 Document Number: PD196-087 Rev 1 Instruction Sheet 3. Press the “SEL” select button and advance the Block number to one of the five block memory locations as you desire. 4. Press the “START” button. A clone message now requests confirmation. Press the “CFM”...
