marinco.com
PRECAUTIONS
The MiniVent 1000 installs directly to the deck or hatch surface of your boat with self-tapping screws. The installation
hole must be at least 3-3/4" (95mm) in diameter and the vent can be retrofitted to an existing hole of up to 6"
(152mm) in diameter. There are three (3) important factors that must be properly addressed to insure a good vent
installation:
1. Make sure the base of the vent is properly caulked when fastening it to the deck or hatch. We recommend using
1/4" to 1/2" (7mm–12mm) wide bead of silicone sealant.
2. The installation hole must be cut to 3-3/4" (95mm) in diameter so that the surface around the vent base is not
distorted and the interior trim ring will fit. Measure carefully to cut the 3-3/4" (95mm) hole.
3. When installing the vent on a cambered surface, make sure you do not tighten the fasteners too much; this will
distort the base of the vent and may cause the vent to leak.
VERY CRITICAL: DECK CAMBER (or deck curvature)
When installing the MiniVent 1000 on a cambered, or curved, surface, it is critical to
check to make sure there is no more than 1/2" (12mm) of camber over a 12" (300mm)
length of deck surface. Too much camber will distort the base of the unit, causing the
cover to be raised off the deck. This creates the potential for water to get under the cover
and may also prevent the damper from closing properly.
To check for camber, place a 12" (300mm) straight edge on the deck location for the
vent and try to rock it. Then rotate it 90 degrees and repeat.
PROBLEM AREAS TO AVOID
Cut the hole for your MiniVent 1000 only after carefully considering the location and the correct sizing of the hole. We
recommend that you MEASURE TWICE AND CUT ONCE!
DO NOT install the MiniVent 1000 in an area with more than 1/2" of camber over a 12" length of deck surface.
Be careful that the location you select for the through-deck hole does not go through any electrical wiring, plumbing
or other obstructions. Be sure power tools are properly grounded.
Take the time to bed the vent base and fasteners properly with sealant.
installation instructions
Installing the
MiniVent 1000

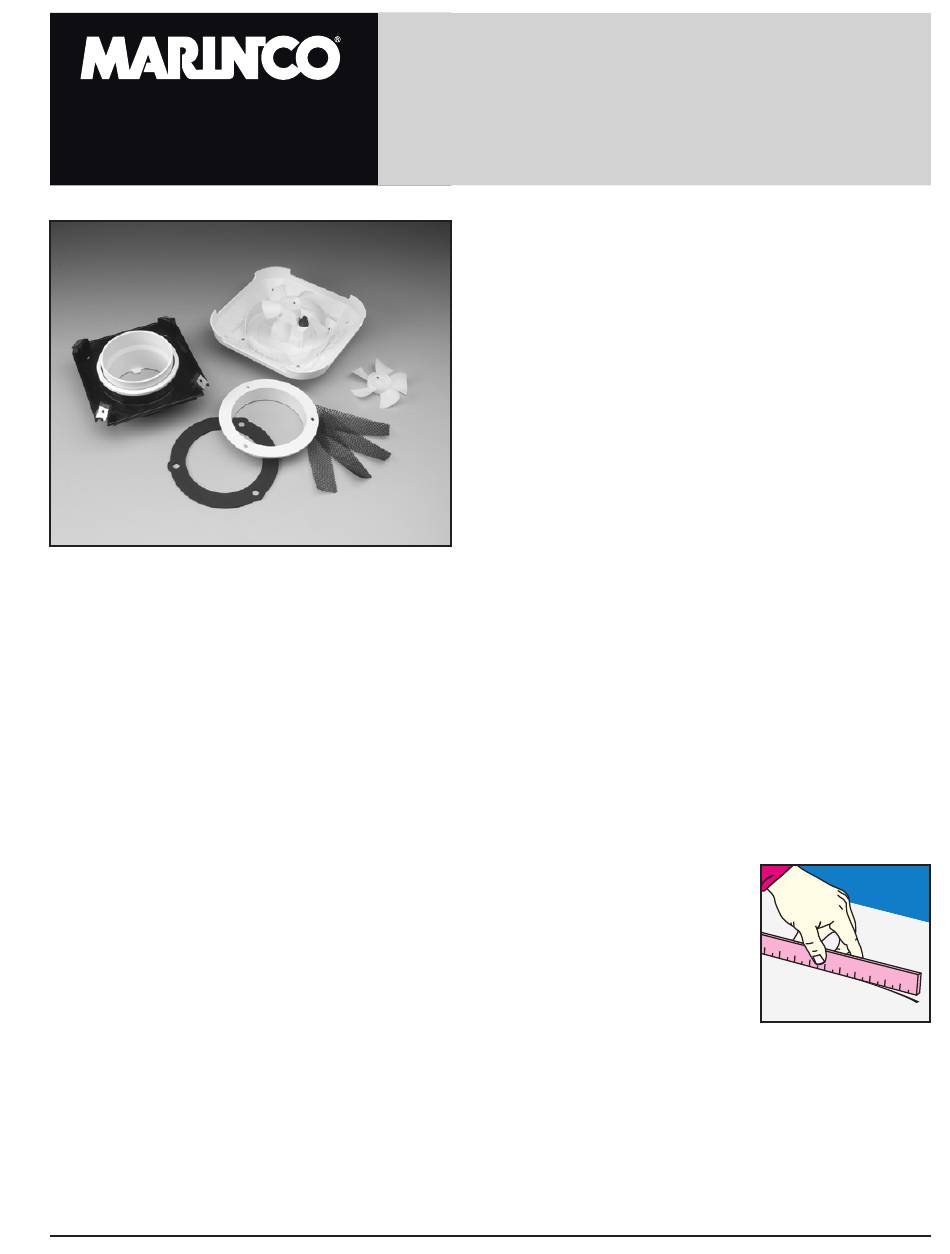

MiniVent 1000 Components:
• MiniVent 1000 Solar Vent with Shut-Off Damper
• Interior Trim Ring
• Insect Screen
• 3 #10x3/4" Flat Head Screws
• 3 #6 Pan Head Self-Tapping Screws
To ensure that you successfully complete your MiniVent
1000 installation, carefully follow these instructions.
Make sure to review the following Precautions and
Problem Areas to Avoid before you begin.
installation instructions
MiniVent 1000
Advertisement
Table of Contents
Related Manuals for marinco MiniVent 1000
Summary of Contents for marinco MiniVent 1000
- Page 1 MEASURE TWICE AND CUT ONCE! DO NOT install the MiniVent 1000 in an area with more than 1/2" of camber over a 12" length of deck surface. Be careful that the location you select for the through-deck hole does not go through any electrical wiring, plumbing or other obstructions.
- Page 2 NOTE: The MiniVent 1000 requires a 3-3/4" (95mm) diameter hole. TIP: If your are installing the MiniVent 1000 using the saber saw method and are concerned about scratching the deck or hatch with the base plate of the saw follow this tip: Select your installation location and, before scribing the circumference, cover the entire area with wide masking tape.
- Page 3 When installing the stainless steel cover, be sure to align the drain holes in the cover with those in the vent. The MiniVent 1000 comes with a removable insect screen that attaches to the shut-off damper. The screen is easy to install by grasping the fin in the center and carefully twisting it on in a clock-wise motion.
- Page 4 MiniVent 1000 MAINTENANCE The fan blade should be cleaned periodically. To remove it for cleaning, gently pull it away from the motor. It will slide off the shaft. To replace the fan, simply push it back on to the motor shaft.
