R2 LANGFORD DC14014 Fitting Instructions

CLOSE COUPLED PAN & CISTERN
FITTING INSTRUCTIONS
This product must be installed by a qualified fitter or plumber in accordance with and meet the requirements of the Water Supply (Water Fittings) Regulations 1999 and Scottish Byelaws 2004

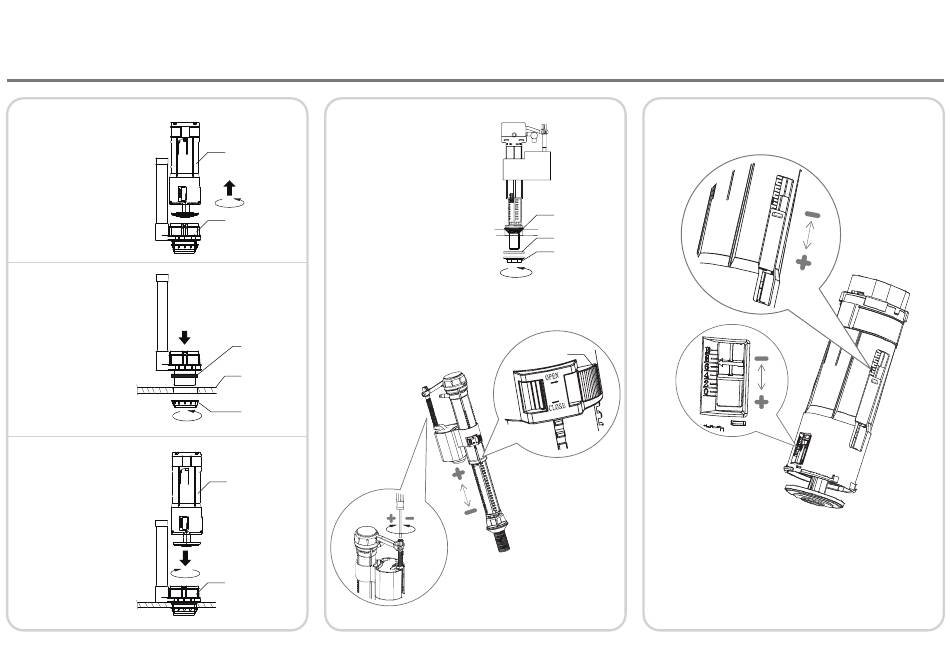

INSTALLATION OF FLUSH VALVE
Turn the flush valve
body anti-clockwise
to part it from the
flush valve seat
Install flush valve seat
and seal as shown
Insert flush valve
body into flush valve
seat, turn it
clockwise until you
hear a "click"
Brought to you by the Roper Rhodes Group, Brassmill Lane Trading Estate, Bath, BA1 3JF
TEL: 01225 303 900 (R2) | 01225 787 870 (Tavistock)
INSTALLATION OF FILL VALVE
Install the fill valve to the tank
body using the rubber seal and
Flush valve body
plastic nut. Ensure the float cup
has room to move up and down
freely. The fill valve is pre-set to a
height suitable for the cistern tank
Flush valve seat
FILL VALVE ADJUSTMENT
The fill valve is factory set but if adjustment is required follow the
instructions below.
Seal
Open the stopper to allow the float to
slide up and down. Close stopper once
float is in position.
Cistern tank
Fixing nut
Flush valve body
Flush valve seat
Rubber seal
Washer
Plastic nut
Stopper
FINE ADJUSTMENT
Turn screw for fine adjustment of float
height. Anticlockwise to lower float.
Clockwise to heighten float.
LANDFORD: DC14014 / DC14013 / DC14012
FLUSH VALVE ADJUSTMENT
The flush valve is factory set but if adjustment is required see diagram
below.
Full flush adjustment
IMPORTANT
Flush out all impurities in the cistern prior to installation.
Cistern fittings are suitable for Water pressure: 0.2 - 8 bar
Reduced flush
adjustment
REF: LANGAG0419 | V2.00
