Light Emotion FLAT0505R User Instruction Manual

Flat 5x5w 4-in-1 rgbw wash fixture with ir remote
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
www.lightemotion.com.au

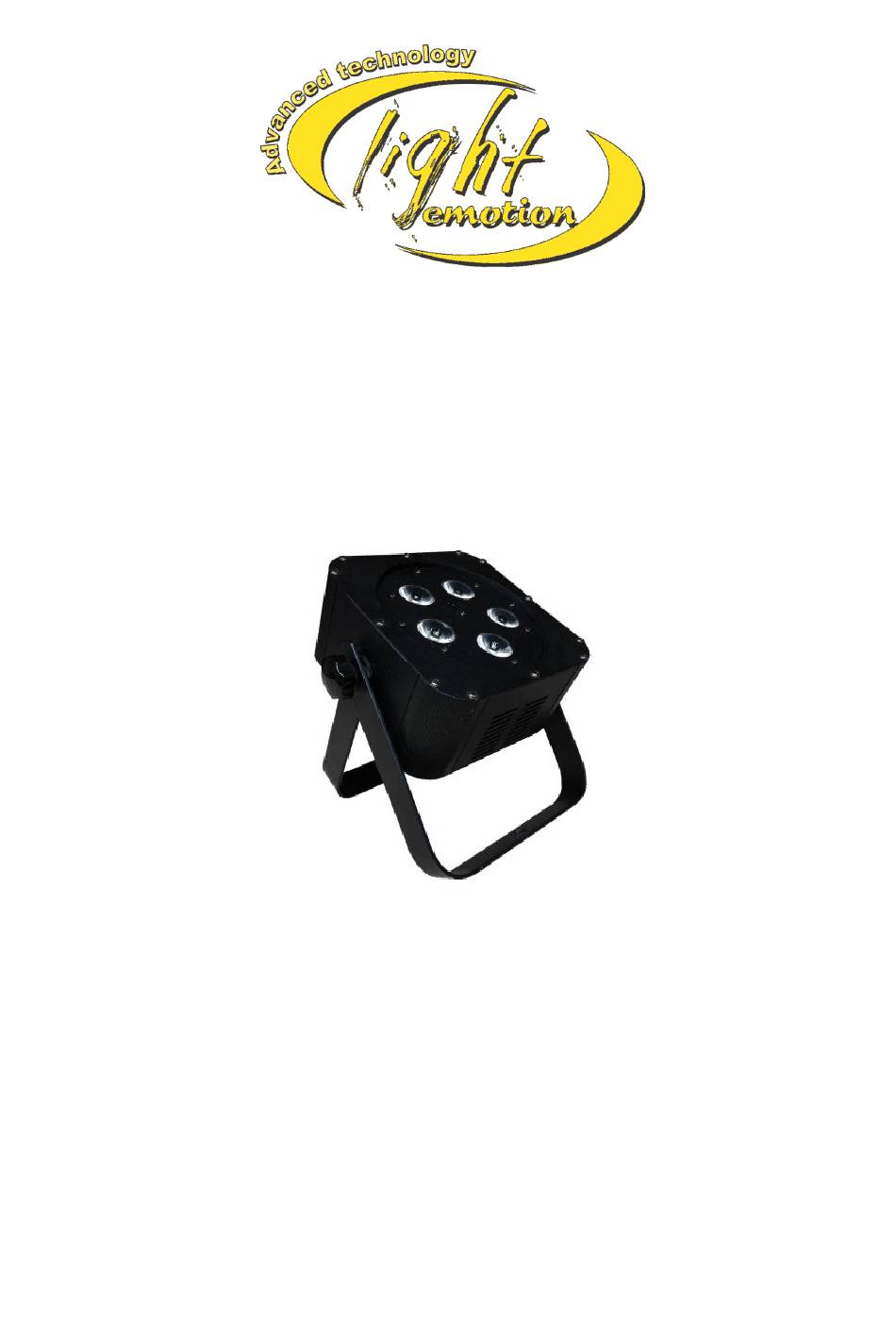

FLAT0505R
Flat 5x5W 4-in-1 RGBW Wash Fixture with IR Remote
User's instruction manual
This manual contains important information about the safe installation and use of this product
Please read this instruction manual carefully before installing or operating
Please keep these instructions in a safe place for future reference
V1.01

Advertisement

Table of Contents
loading

Summary of Contents for Light Emotion FLAT0505R

  • Page 1 FLAT0505R Flat 5x5W 4-in-1 RGBW Wash Fixture with IR Remote User’s instruction manual This manual contains important information about the safe installation and use of this product Please read this instruction manual carefully before installing or operating Please keep these instructions in a safe place for future reference...

  • Page 2: Table Of Contents

    Contents 1. Safety Instructions 2. Installation 3. Features 4. Operation Menu Functions Explanations DMX and DMX Tables 5. IR Remote Control 6. DMX Connections 7. DMX Address Setting 8. DMX Terminator 9. Cleaning and Maintenance 10. Technical Data 11. Warranty...

  • Page 3: Safety Instructions

    Introduction Thank you for the purchase of your FLAT0505 5x5W 4-in-1 RGBW Wash Fixture by Light Emotion. We are confident you will be satisfied with your purchase and enjoy many years of use from this Professional Light Emotion product. Please read these instructions carefully to ensure the product is well look after and used correctly to avoid any potential problems.

  • Page 4: Installation

    2. Installation: Caution: For safe mounting of this product, please read the following carefully. - Use a suitable clamp to attach to lighting stand, trussing or bar, together with safety chain. - When mounting the product, do not stand directly underneath the product - Always use a safety chain when mounting the product on stands, trussing or bars.

  • Page 5: Operation

    4. Operation. The FLAT0505 has eight kinds of operation mode, they are as follows: Static color select mode, Manual dimmer color mode, Colour jumping mode, Colour dreaming mode, Auto-run program mode, Sound active mode, Slave mode, DMX mode Here above eight kinds running mode are selected by MODE button. Press MODE and UP button at the same time, when it is on, you can initialize it at extra factory setting, running on the auto-run program mode.

  • Page 6: Explanations

    A. Static color select mode Press "MODE" button, select the static color select mode. There are two modes in the static color select mode. You can select them by pressing the "SET UP" button. 1) Static color select Press "SET UP" button until the four digital tube displays" ",then press "UP"...

  • Page 7: Dmx And Dmx Tables

    Press "SET UP" button until the four digital tube displays " ". Press "UP" or "DOWN" button to select the color dreaming speed 01-99 ,01 is the slowest speed, 99 is the fastest speed. 2) Flash speed select Press "SET UP" button until the four digital tube displays " ",then press "UP"...
  • Page 8 DMX MODE: 7 DMX channels MODE DMX VALUE FUNCTION White Blue Green 0-255 0-255 0-255 0-255 0-13 No function (dim→ (dim→ (dim→ (dim→ bright) bright) bright) bright) 14-26 27-38 Green 39-51 Blue 52-64 White 65-76 77-89 90-102 0-10=No use 11-255=Flash Dimming 103-114 (slow→fast)

  • Page 9: Ir Remote Control

    Operation by IR remote You can also operate this product by IR remote, the distance available is at most 10m. Notice:IR remote can also be used when the unit is in the DMX mode. The picture of the IR remote: AUTO RUN mode Press AUTO RUN button to choose Auto run mode.

  • Page 10: Dmx Connections

    Select light program mode Press R/G/B to choose the three different colours, and "0" is to choose the white colour, then press “+” and “-” or put in three numbers 000-255 to adjust the intensity of the light. You can press FLASH to turn on flash and press “+”and “-”...

  • Page 11: Dmx Address Setting

    7. DMX Address Setting When being used in conjunction with a DMX controller, each fixture must be set a specific starting address. When receiving signal, fixture will receive channel control signals of this address from the DMX controller. For simplicity, the user can use the same address for multiple fixtures but this will result in each fixture providing exactly the same output and fixtures with the same DMX address cannot be individually controlled.

  • Page 12: Technical Data

    We recommend you register your warranty online at www.industrygear.com.au. Purchased from:_________________________________________ Contact Details:_________________________________________ Date Purchased:_________________________________________ Invoice/Receipt Number:__________________________________ Copyright Light Emotion 2017. E&OE Exclusively imported by LSW Imports and Distribution PO Box 887, Kingsgrove, NSW, 2208 sales@lswonline.com.au www.lightemotion.com.au 1800 643 111 (within Australia)
