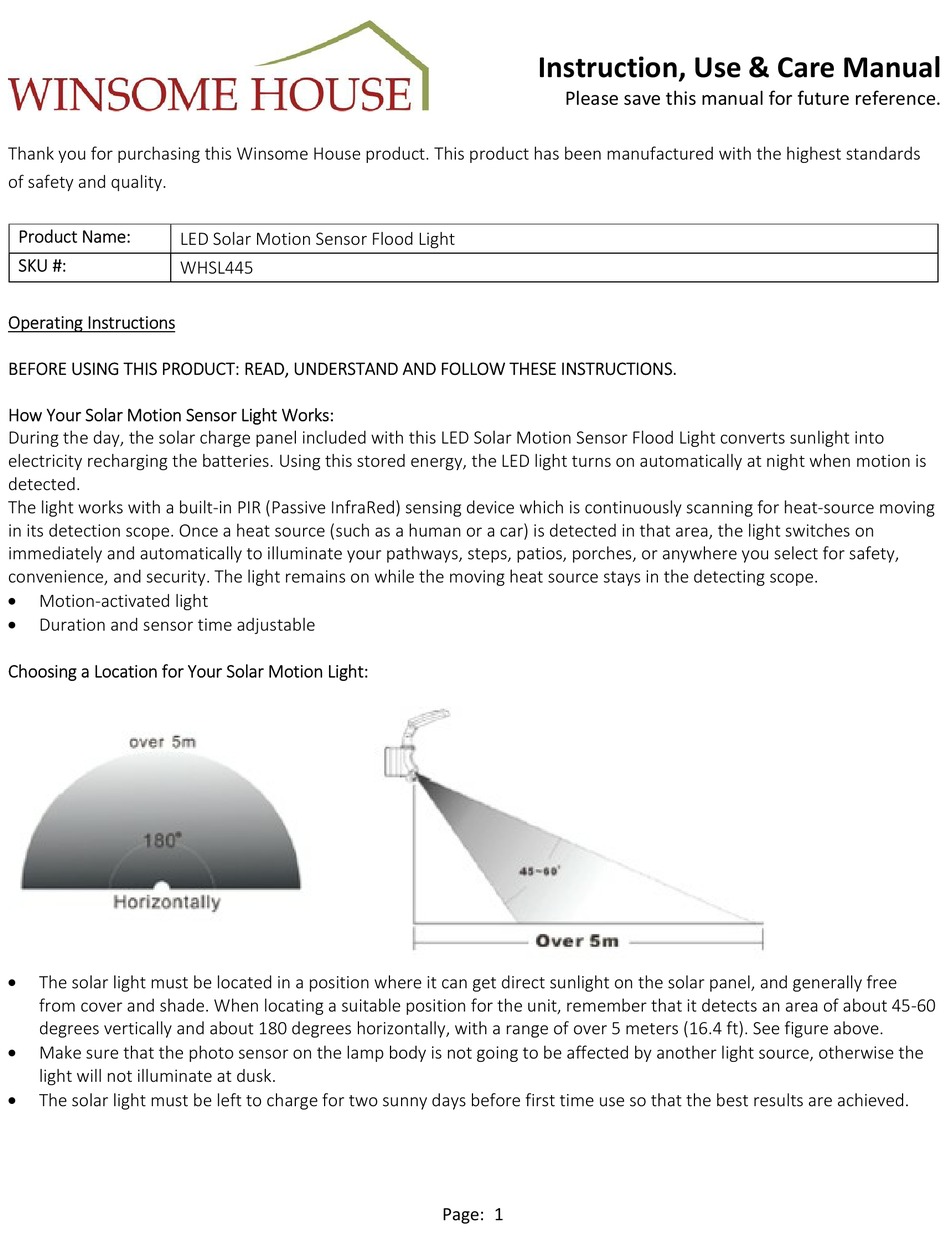

Winsome house WHSL445 Manual

Thank you for purchasing this Winsome House product. This product has been manufactured with the highest standards
of safety and quality.
Product Name:
LED Solar Motion Sensor Flood Light
SKU #:
WHSL445

Operating Instructions

BEFORE USING THIS PRODUCT: READ, UNDERSTAND AND FOLLOW THESE INSTRUCTIONS.
How Your Solar Motion Sensor Light Works:
During the day, the solar charge panel included with this LED Solar Motion Sensor Flood Light converts sunlight into
electricity recharging the batteries. Using this stored energy, the LED light turns on automatically at night when motion is
detected.
The light works with a built-in PIR (Passive InfraRed) sensing device which is continuously scanning for heat-source moving
in its detection scope. Once a heat source (such as a human or a car) is detected in that area, the light switches on
immediately and automatically to illuminate your pathways, steps, patios, porches, or anywhere you select for safety,
convenience, and security. The light remains on while the moving heat source stays in the detecting scope.

Motion-activated light

Duration and sensor time adjustable
Choosing a Location for Your Solar Motion Light:

The solar light must be located in a position where it can get direct sunlight on the solar panel, and generally free
from cover and shade. When locating a suitable position for the unit, remember that it detects an area of about 45-60
degrees vertically and about 180 degrees horizontally, with a range of over 5 meters (16.4 ft). See figure above.

Make sure that the photo sensor on the lamp body is not going to be affected by another light source, otherwise the
light will not illuminate at dusk.

The solar light must be left to charge for two sunny days before first time use so that the best results are achieved.
Instruction, Use & Care Manual
Please save this manual for future reference.
Page: 1
