Observator OMC-045-II Quick Start Manual

OBSERVATOR
instruments
Introduction.
This manual is intended as a guide how to quickly setup your OMC-045-datalogger with OMC-
Programmer. For more detailed information we refer to the help files, which you can access via
the [F1] function key anywhere in OMC-programmer.

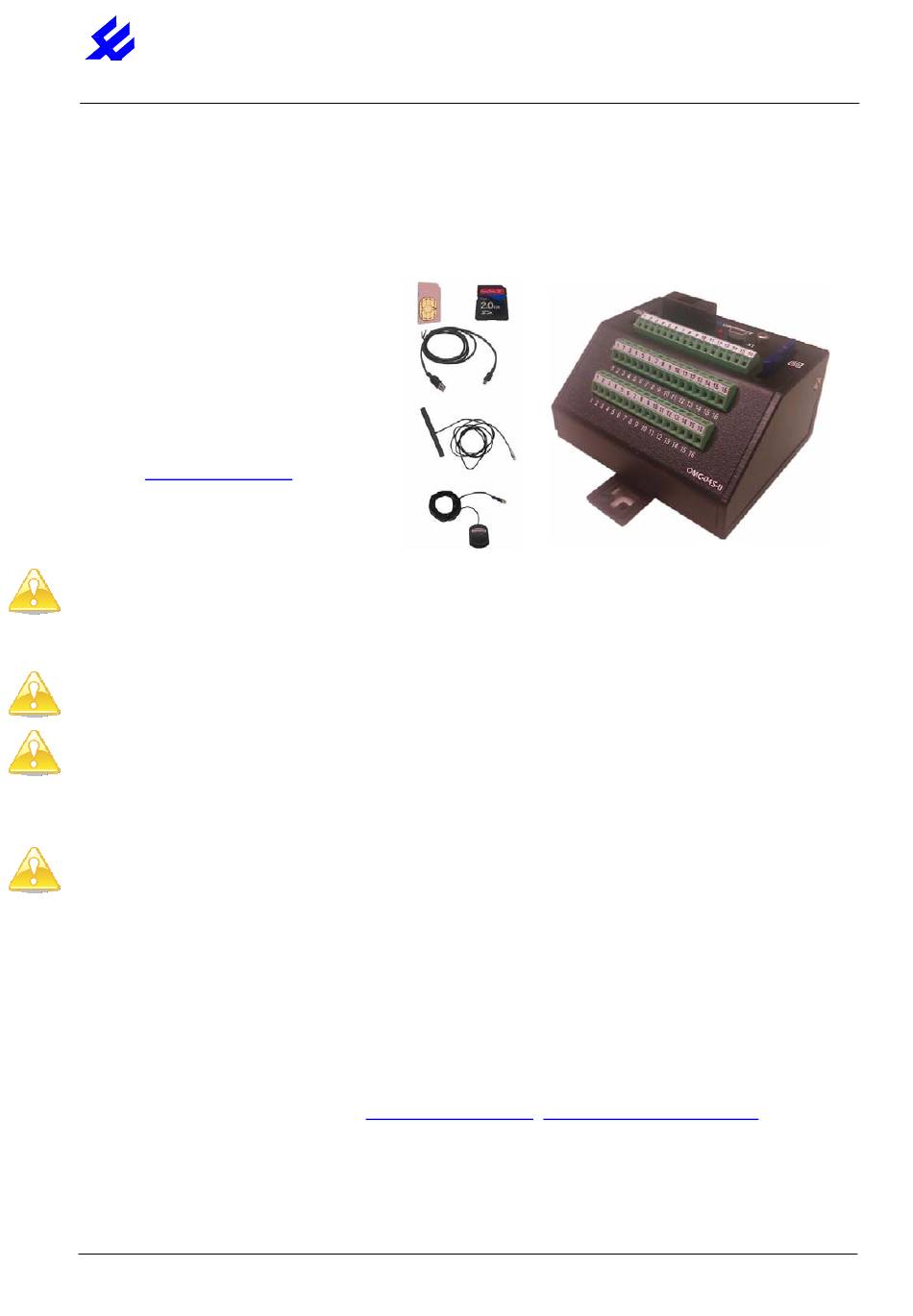

1. Check required items:

OMC-045-II
-
- SD-card (included)
USB cable (included)
-
- GSM/GPRS antenna (included)
SIM card
-
- Optional GPS antenna
OMC-Programmer
-
- Suitable sensors
Suitable power supply
-
Important notes:
SD-Card: The included SD card is specially formatted for the OMC-045-II
DO NOT FORMAT THE CARD VIA WINDOWS!
Leave the switch to the 'LOCK' (= Write Protect) position whenever
used in a pc.
SIM card: Check the card in a phone, make sure the PIN code is disabled.
Test if GPRS is available.
BOTH CARDS SHOULD ONLY BE PLACED OR REMOVED WHEN THE POWER IS OFF!
Power Supply:
The output voltage of the OMC-045-II is identical to the PSU!
2. Connect all sensors & antenna's
Use delivered diagram or use the connectors layout in the appendix to determine the
-
correct connections.
Connect the power supply
-
- Do not connect the OMC-045-II by USB before you installed OMC-programmer

3. Install OMC-programmer

- Check the support page of
latest version.
Install OMC-programmer on your pc, this will also install the required USB driver
-
If the sensors are powered via the OMC-045-II, make sure the PSU
(Power Supply Unit) is suitable for both the OMC-045-II and the sensors.
Else the sensor should be powered by a separate PSU.
