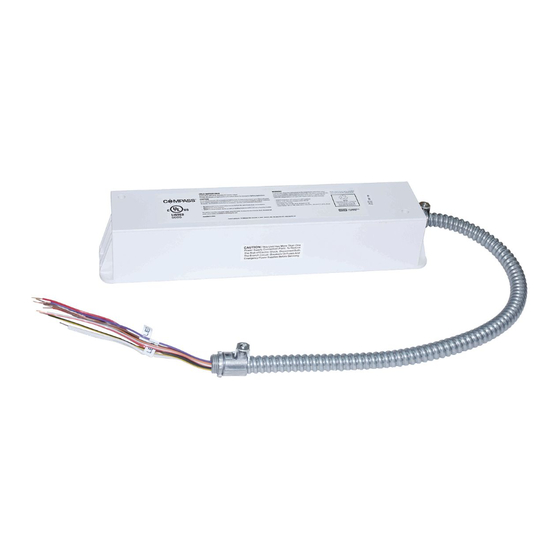

Compass CPL25 Installation Instructions

UNIVERSAL INPUT, AC OUTPUT, BATTERY PACK
WHEN USING ELECTRICAL EQUIPMENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. To prevent high voltage from being present on the orange/black and yellow/black output leads prior to
installation, battery connection must be open. Install battery connector after the battery pack has been
installed and before the AC power is supplied.
2. For use with fluorescent, incandescent or LED fixtures up to 25 W (20°C to 40°C including driver/ballast) at
unity power factor.
3. Make sure all connections are in accordance with the National Electrical Code and any local regulations.
4. To reduce the risk of electric shock, disconnect both normal and auxiliary power supplies and battery connector
of the battery pack before servicing.
5. This battery pack is suitable for factory or field installation.
6. An AC power source (120, or 277 VAC, 60 Hz) ahead of any wall switch is required to provide battery charging
current.
7. Do not install near gas or electric heaters.
8. This product is for use with indoor or damp locations where ambient temperature is 20°C to 40°C. Not suitable
for wet or hazardous locations.
9. This is a sealed unit. Integral battery is not replaceable. Replace entire unit when necessary.
10. The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition.
11. Do not use this product for other than intended use.
12. Servicing should be performed by qualified service personnel.
13. Equipment should be mounted in locations and at heights where it will not be subjected to tampering by
unauthorized personnel.
WARNING – This product contains chemicals known to the State of California to cause cancer, birth defects
and/or other reproductive harm. Thoroughly wash hands after installing, handling, cleaning, or otherwise touching
this product.
INSTALLER:
SEE UNIT LABEL FOR ADDITIONAL MODEL SPECIFICATIONS
SAVE THESE INSTRUCTIONS FOR USE BY OWNER/OCCUPANT
CAUTION: DISCONNECT POWER DURING INSTALLATION AND BEFORE SERVICING.
READ ALL INSTRUCTIONS COMPLETELY BEFORE STARTING INSTALLATION.
CPL25
INSTALLATION INSTRUCTIONS
! IMPORTANT SAFEGUARDS !
BE FOLLOWED, INCLUDING THE FOLLOWING:
SAVE THESE INSTRUCTIONS
1
