Hills DY6 Installation Instructions

*Note - some views not representative of all models.
1
Carefully remove the antenna from its packaging.
2

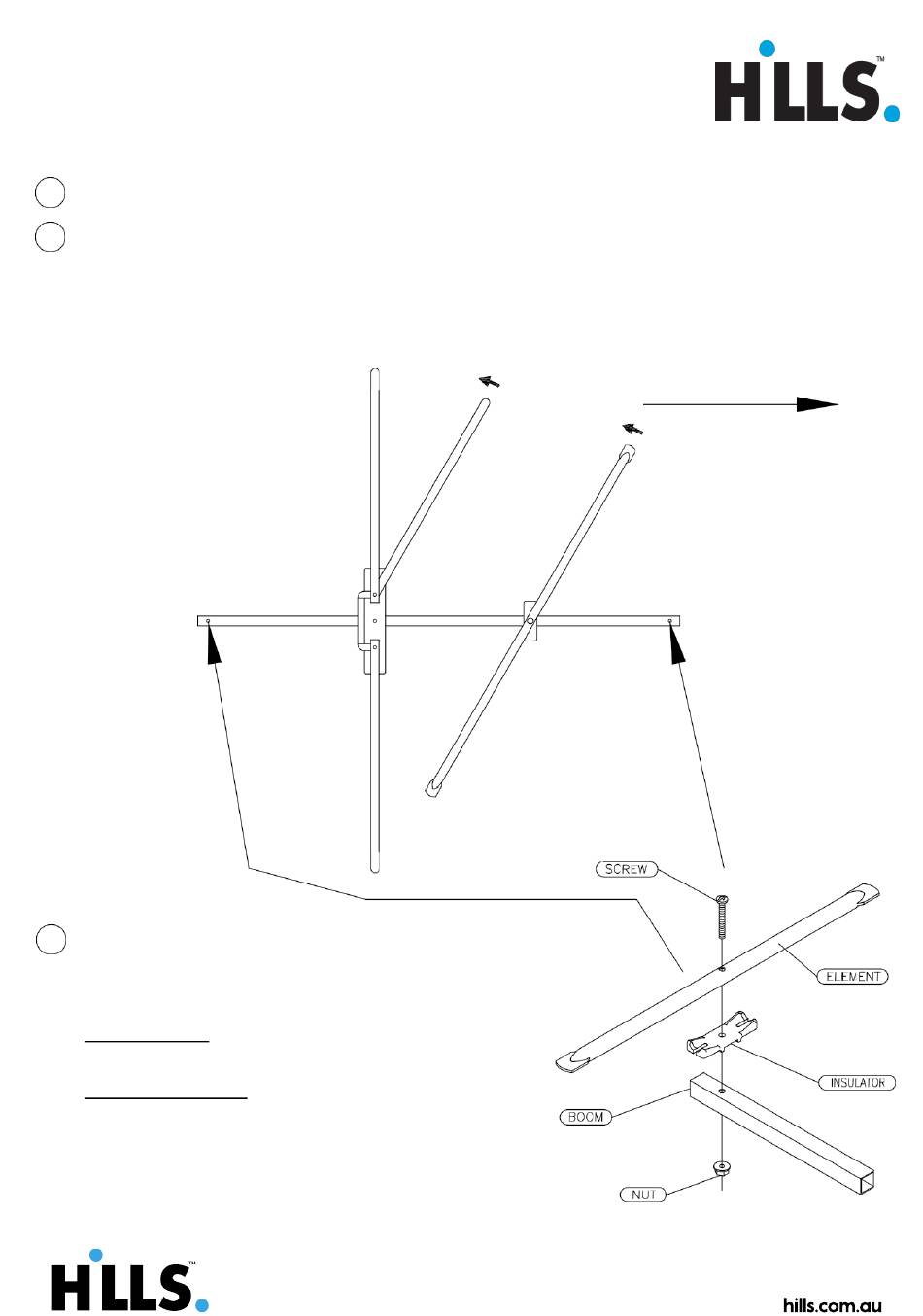

Unfolding the Antenna.

Starting at the back of the antenna and working towards the front... grasp
each element close to the pivot point (within 300mm) and rotate outwards
until it clicks firmly into place. (see Figure 1)
Back
3

Loose Element Assembly.

Remove the loose straight elements from antenna along with
the screws, nuts & insulators from the accessory bag.
For DY models: Position short element at front & long
element at back, (see Figure 1).
For all other models: Position loose element at front
of antenna, (see Figure 1).
Place screw through the element, insulator & boom,
affix and tighten the nut, (see Figure 2).
Digital Antenna
Installation Instructions
Models: DY6, Y3FM
FIGURE 1
*Note: Excludes Y3FM model.
TOWARDS TRANSMITTER
Front
FIGURE 2
