WaterWell Manual Aquatic Treadmill
Parts List
Manual Treadmill Kit (supplied by Endless Pools)
(1)

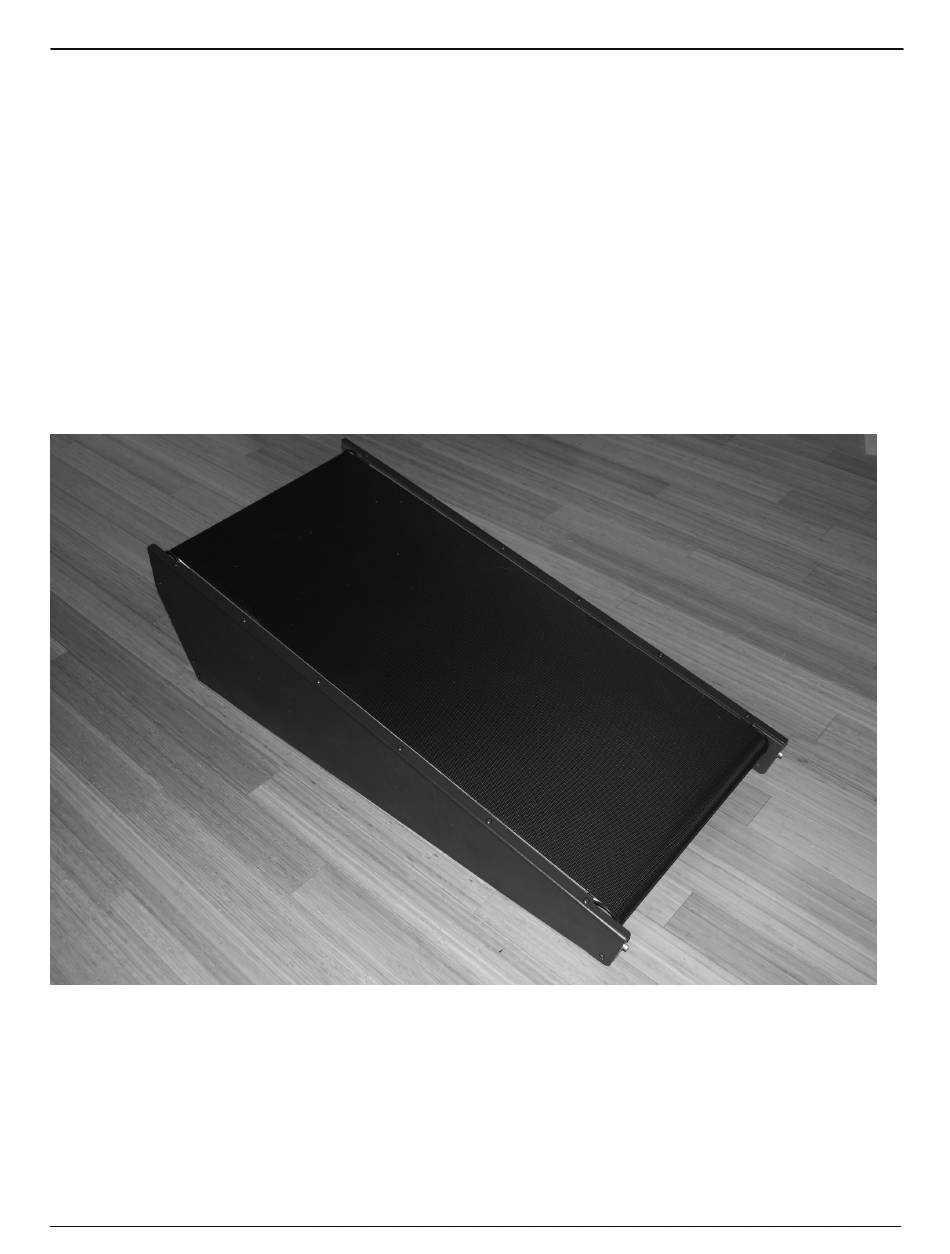

Treadmill Body
(2)
Treadmill Sides
(1)
Lower Front Support Bar
(20)
10/32 Stainless Steel Machine Screws
(6)
Suction Cups
(1)
3/16" Hex Head Wrench
Tools Required (supplied by others)
#2 Phillips Head Screwdriver
Description
The Manual Aquatic Treadmill allows you to enjoy a full walking or running workout without the pounding of
land-based exercise. The Manual Aquatic Treadmill offers a spacious 20" wide belt for walking or running.
You expend as much or as little effort as desired and still achieve a great cardio workout.
Placement Considerations
Our underwater treadmills are typically installed in pools with deeper panels. The front of the treadmill should
be placed immediately next to a pool wall so that the provided grab bar can be utilized.
We recommend that the grab bar assembly be mounted to the pool wall via a stainless steel nut and bolt. Holes
will have to be drilled into the panel for these bolts prior to installing the liner. Access will need to be
maintained to the backside of the panel so that the bolt head can be accessed for the initial installation as well
as for any future maintenance. We have provided self-drilling screws and washers to simplify the grab bar
installation.
Endless Pools Inc.
Supplemental Guide
Page 1 of 5
3/2/2010
Advertisement
Table of Contents
Summary of Contents for Endless Pools WaterWell
-
Page 1: Parts List
WaterWell Manual Aquatic Treadmill Supplemental Guide Page 1 of 5 Parts List Manual Treadmill Kit (supplied by Endless Pools) Treadmill Body Treadmill Sides Lower Front Support Bar (20) 10/32 Stainless Steel Machine Screws Suction Cups 3/16” Hex Head Wrench Tools Required (supplied by others) - Page 2 Align the top of the bracket with that line. Mark the 2 small outer holes of the bracket onto the panel. Drill out these holes with a 3/8” drill bit. Then, continue with the installation of your WaterWell. 2. Once the liner is in place and there is water in your pool, find the 3/8” holes in the panel and puncture the liner at these points.
- Page 3 WaterWell Manual Aquatic Treadmill Supplemental Guide Page 3 of 5 Treadmill Assembly Instructions 1. Begin by opening the box and laying out the components of the treadmill as shown below. Treadmill Body Treadmill Sides Hardware Kit Lower Front Support Bar...
- Page 4 WaterWell Manual Aquatic Treadmill Supplemental Guide Page 4 of 5 3. Place the treadmill side onto the body so that the two holes in vertical face of the sides line up with the two holes in the vertical face of treadmill body. The holes in the top lip of the face should also line up with the top edge of the body.
- Page 5 WaterWell Manual Aquatic Treadmill Supplemental Guide Page 5 of 5 6. Finally, install the suction cups into the holes in the bottom of the lip of the treadmill sides. A minimum of four should be used, two in the front and two in the rear. Insert the suction cup into the larger portion of the opening and push the suction cup into the smaller portion of the opening.
