Summary of Contents for Picogram PnP Plug&Play

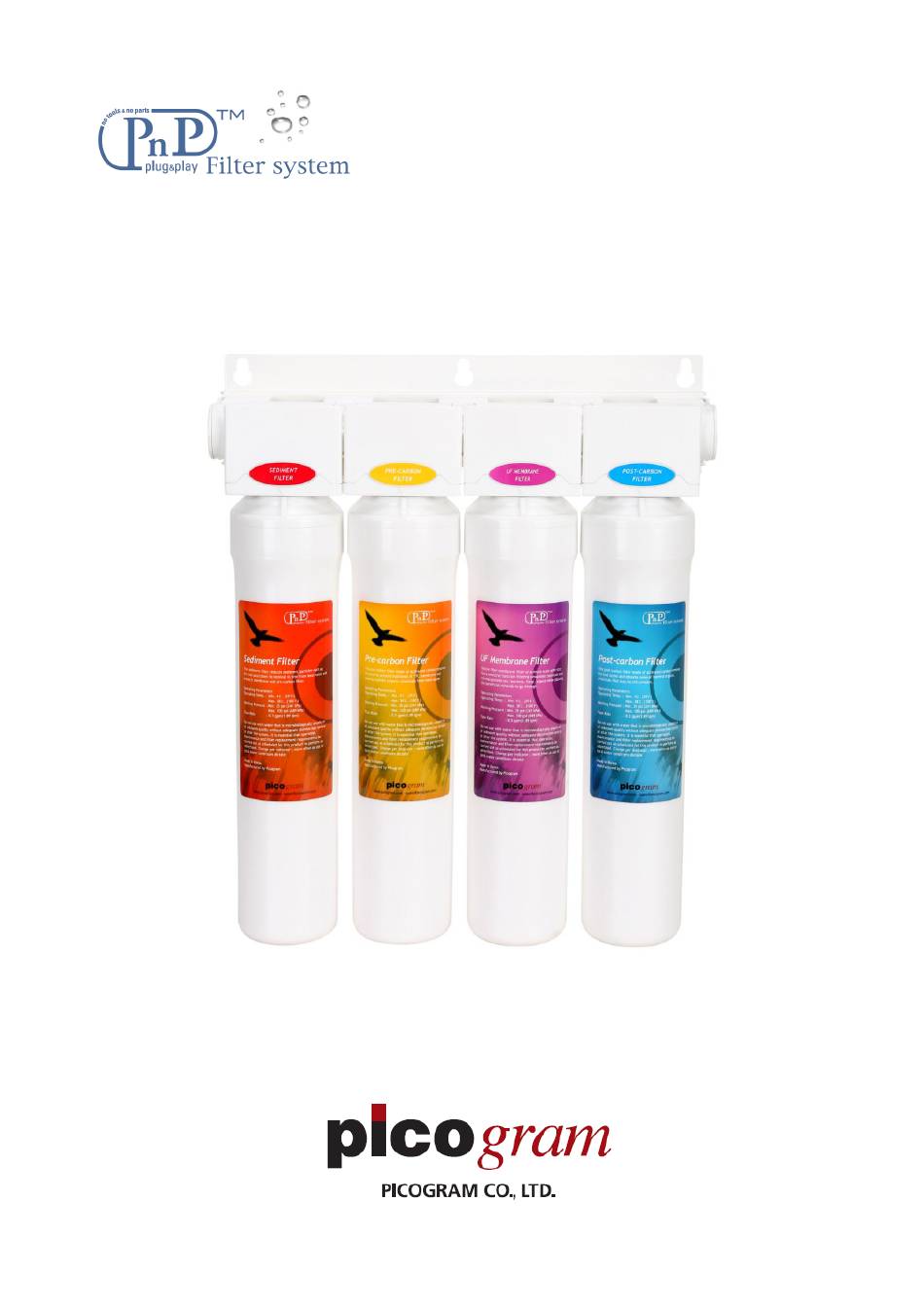

  • Page 1 USER MANUAL...
  • Page 2: Table Of Contents

    Before using Read this User manual for correct installation, use and maintenance of the product. If a problem occurs while using the product, please refer to this user manual to solve the problem. After reading, keep this user manual with the warranty in a place that is easy to reach. Table of Contents 1.
  • Page 3: Notice For The Correct And Safe Use

    1. Notice for the correct and safe use Danger Warning Caution If the instructions are not If the instructions are not If the instructions are not followed, considerable followed, light physical followed, death or severe physical injury or property injury or property damage injury may occur.
  • Page 4: Name Of Each Part (Working Drawing)

    2. Name of Each Part (Working Drawing) hydrant ⑦ faucet fitting sink hose water feed purified cold water water line Water line ⑥ feed water adaptor ① head connector ass'y ② carbon filter If there is a possibility hose may be bent when connecting the hose, use the one touch elbow fittings attached to install.
  • Page 5: Product Specifications

    3. Product Specifications 3.1 Filter size: 8", 10", 11", 13" 3.2 Purification processing Sediment filter → Pre carbon filter → Membrane filter → Post carbon filter 3.3 Use Condition * Feed water pressure: 0.5~4㎏f/㎠ * Feed water temperature: 4~45℃ * pH : 2.0~11.0 * Max.
  • Page 6: Preparation Before Installation

    4. Preparation before installation Caution ▩ Read User Manual before installing the product. ▩ This product is a home purification system using tap water as raw water. ▩ The feed water exceeding the use requirements of this product needs pretreatment. ▩...
  • Page 7: How To Install The Product

    5. How to install the product Caution ▩ Keep to the minimum distance so that the hose connected between components is not bent or twisted. ▩ Do not install in any place that is lit by direct sunlight or exposed in the frozen status.
  • Page 8 5.2 How to install the inlet valve Caution ▩ First, check the screw standard of raw water supply line under a sink. The screw of this valve is PF1/2" standard screw. (If the standard is wrong, never construct it.) ▩ Be sure to install the valve in the cold water side of the raw water line. If installed in the hot water side of raw water line, the purification system shall be damaged or the function can be disabled or broken.
  • Page 9 5.3 Installation of purified water faucet ※ Notices regarding selecting the location Caution: If there are obstacles in the open area under a sink, it is not possible to install a faucet. Be sure to check the lower part of the sink in order to install a faucet. 1.
  • Page 10 5.4 Installation of the head connector assay Install in the convenient area under a sink to be apart more than 30cm (1ft) from the floor. If installed lower, it will not be possible to install the filter. (Refer to Fig. 6) 5.5 Filter installation Caution: Install the filter according to the procedure marked in the connector of the head connector assay.
  • Page 11 5.6 Hose Connection between each part 1. Connect the raw water adaptor assembled in the cold water side and the inlet hole of head connector assay. In this case, make sure that the hose is not bent or twisted. 2. Connect the hose between the outlet hole of head connector assay and one touch fitting connected to a faucet.
  • Page 12: How To Replace The Filter

    6. How to Replace the Filter 6.1 Filter replacement (4 types are all same.) <How to remove the filter> 1. Lock the raw water supply valve. 2. Unlock the faucet to discharge the pressure inside the system. Caution : If the pressure inside the system is not discharged, water could be splashed with a "POP!"...
  • Page 13: Checklist Before Requesting Service

    7. Check list before requesting Service ※ Failure Index and Solutions Phenomena Causes/Checklist Actions The purified water Is the feed water supply valve Unlock the feed water supply valve. does not run. locked? Be sure not to bend the hose. Is the hose bent or twisted? Replace the bent hose.
  • Page 14 Invisible world, Picogram technology! 48-213 Samjeong-dong, Ojeong-gu, Bucheon-si, Korea 421-808 T. 82-32-678-5114 / F. 82-32-672-9222 Web site : www.picogram.com / E -m a i l : sales@picogram.co.kr -14-...
