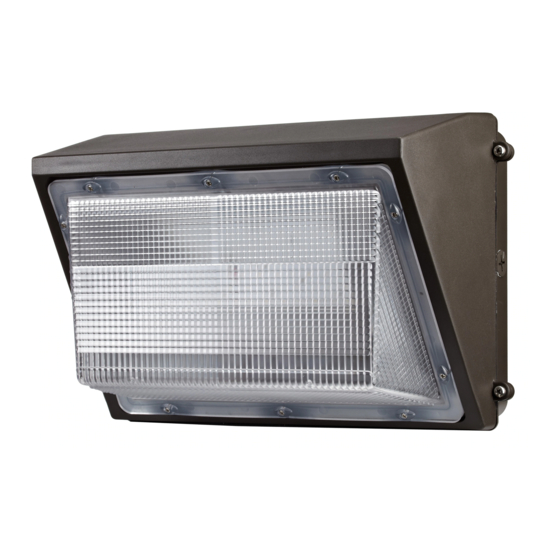

LOUVERS LED Talon Installation Instructions

Led wall pack
Hide thumbs
1
2

Advertisement

Quick Links

Download this manual
WARNINGS: IMPORTANT SAFET Y INSTRUCTIONS
1.
To avoid electric shock, disconnect the power at source prior to installation.
2.
The installation should be performed by a qualified electrician or lighting technician.
3.
Before conducting any installation, maintenance or removal, disable all power to the luminaires and wait for the fixture to cool down.
4.
Do not touch the fixture wile it is in service.
5.
If there is any problem with the fixture, PLEASE turn off the power and DO NOT attempt to repair unless you are a qualified technician or
the customer service member.

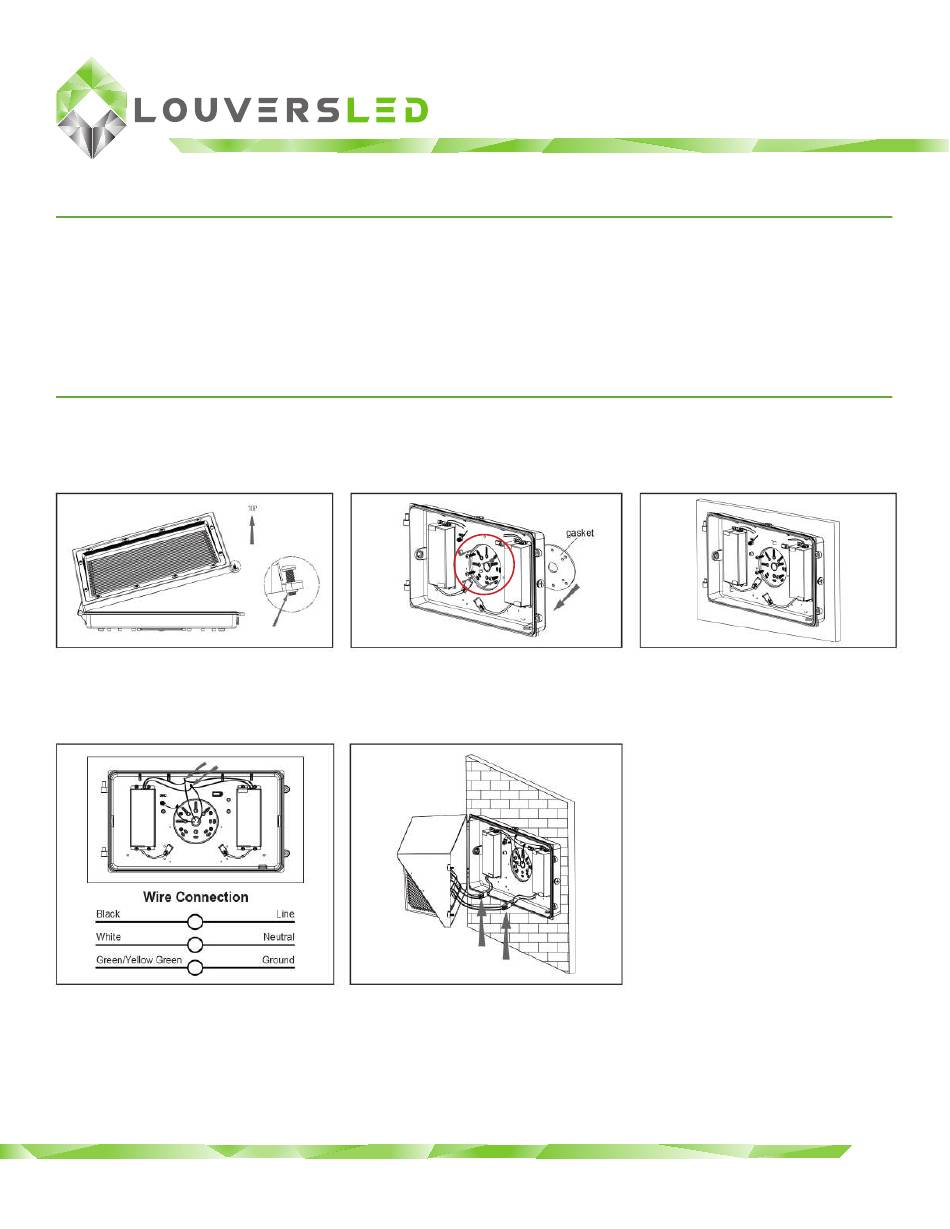

JUNCTION BOX MOUNTING
1.
Loosen screws and remove the lens set
carefully from the backplate.
4.
Finish wiring (BLACK for LINE, WHITE for
NEUTRAL and GREEN/YELLOW GREEN
for GROUND).
Louvers International 851 N. Church Court, Elmhurst, Illinois 60126 │ P: 800.543.3765 │ F: 800.568.8377 www.louversintl.com
All Specifications Subject to Change Without Notice
2.
Drill appropriate knockouts (B) for wiring.
The fixture supports standard 3 ¼" and
4" junction box.
B
5.
Replace the lens on the hinges, make
connections and close the lens set.
Then, tighten the screws.

Installation Instructions

Talon LED Wall Pack
3.
Attach the back plate on the wall.
Use the supplied gaskets for a weather-
tight seal.
2/22/17

Advertisement

loading
Need help?

Need help?

Do you have a question about the Talon and is the answer not in the manual?

Questions and answers

Summary of Contents for LOUVERS LED Talon

  • Page 1: Installation Instructions

    Installation Instructions Talon LED Wall Pack WARNINGS: IMPORTANT SAFET Y INSTRUCTIONS To avoid electric shock, disconnect the power at source prior to installation. The installation should be performed by a qualified electrician or lighting technician. Before conducting any installation, maintenance or removal, disable all power to the luminaires and wait for the fixture to cool down.
  • Page 2 Installation Instructions Talon LED Wall Pack CONDUIT MOUNTING Loosen screws and remove the lens set Drill the holes (C) to secure the fixture Replace the lens set on the hinge and carefully from the backplate. (See step 1 onto the wall, and screw in appropriate finish the connection.
