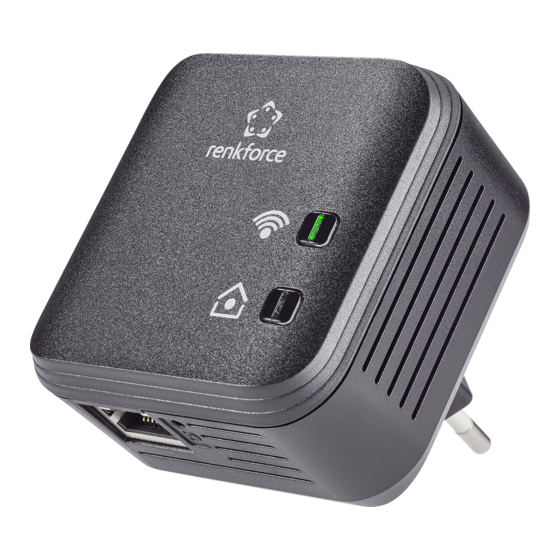

- Page 1 Renkforce PL500D WiFi...
- Page 2 While the information in this manual has been compiled with great care, it may not be deemed an assurance of product characteristics. The manufacturer shall be liable only to the degree specified in the terms of sale and delivery. The reproduction and distribution of the documentation and software supplied with this product and the use of its contents is subject to written authorization from the manufacturer.
-
Page 3: Table Of Contents
The PL500D WiFi ........ - Page 4 Warranty conditions ..........35 Renkforce PL500D WiFi...
-
Page 5: About The Manual
Chapter 4 describes configura- tion options in detail for the built-in configuration interface, including access to the Wi-Fi. How you can manage the PL500D WiFi using the PLC configu- ration software is covered in Chapter 5. Tips for bandwidth optimization, infor- mation of environmental compatibility of the device and our warranty conditions can be found in Chapter 6 and conclude the manual. -
Page 6: Safety Notes
Devices should only be installed at locations that guarantee adequate venti- lation. Slots and openings on the housing are used for ventilation: •Do not cover devices when operating. •Do not place any objects on devices. •Do not insert any objects into the openings of devices. Renkforce PL500D WiFi... - Page 7 About the manual 7 •Devices must not be placed directly next to an open flame (such as fire or candles). •Devices must not be exposed to direct heat radiation (e.g. radiator, direct sunlight). Renkforce PL500D WiFi...
-
Page 8: Introduction
MAC addresses of the network adapt- ers. 2.2.1 Wi-Fi or WLAN? Wi-Fi is an invented brand name of the Wi-Fi Alliance, a consortium that cer- tifies devices with wireless interfaces. In many countries, Wi-Fi is also used Renkforce PL500D WiFi... -
Page 9: The Pl500D Wifi
• As a PLC device, the PL500D WiFi has one LAN jack for directly connecting a network device to the power lines. -
Page 10: Example Applications
Internet access devices, by HomePlug. On the other hand, you include devices such as smartphones, laptops and tablets in your home network via Wi-Fi. Each additional PL500D WiFi (e.g. one on every storey) makes it easy for you to enable full Internet access everywhere in the home via Wi-Fi and/ or HomePlug. -
Page 11: Installation
•1 Network cable •Hard copy of installation guide •CD containing CE conformity, software and online documentation • Network: •Two Renkforce PL500D WiFi •PL500D duo •1 Network cable •Hard copy of installation guide •CD containing CE conformity, software and online documentation The manufacturer reserves the right to change the package contents without prior notice. -
Page 12: Connection And Display Elements
Before the networking procedure, take note of the WiFi key of the PL500D WiFi from which all Wi-Fi configurations are to be transferred to all other PL500D WiFi adapters. You will find the unique key on the label on the back of the housing. -
Page 13: Plc Button
Installation 13 The LED status display can be deactivated on the configuration interface of the PL500D WiFi (see 'LED settings'). 3.3.2 PLC button The PLC button controls the following PLC functions: • Encrypting the PLC network •To encrypt your PLC network individually, press each PLC encryption button on the connected devices for approx. -
Page 14: Reset
WiFi Move is a function for synchronising the Wi-Fi settings of all PL500D WiFi adapters connected to your home network. •Within 2 minutes first press the PLC button of the existing PL500D WiFi (approx. 1 second) and finish by pressing the PLC button of the new PL500D WiFi (approx. -
Page 15: Single-Expanding An Existing Network
3.4.1 Single—Expanding an existing network Plug the PL500D WiFi into a wall socket. As soon as the indicator light of the PLC button lights green (after approx. 45 seconds), the adapter is ready to operate. Note: The power outlet should be in range of the connected network device. -
Page 16: Kit And Network-Setting Up A New Plc Network
Enabling WiFi Clone at the touch of a button First press the PLC encryption button on the front side of the PL500D WiFi and then press the WPS button on the WiFi router with the access data you want to apply. - Page 17 First press the PLC encryption button (for about 1 second) of PL500D duo and then, within 2 minutes, press the PLC encryption button (for about 1 second) of PL500D WiFi. Your PLC network is now set up and protected against unauthorised access.
-
Page 18: Installing The Software
Establish the WiFi connection with your laptop, tablet or smartphone by entering the previously noted WiFi key as the network security key. For the PL500D WiFi to show the same WiFi configuration as your WiFi router, you can apply the WiFi access data at the touch of a button. The... -
Page 19: Excluding The Adapter From Your Network
You can find the installed software applications in the Start -> All Pro- grams -> PLC -> Access Manager. The Access Manager starts the integrated configuration interface of your PL500D WiFi. For more information on the configuration interface, please refer to Chapter 'Network configuration'. Excluding the adapter from your network To exclude an adapter from an existing network, press its PLC encryption button for at least ten seconds. -
Page 20: Network Configuration
20 Network configuration Network configuration The PL500D WiFi has a built-in configuration interface that can be called up using a standard web browser. Most settings for operating the device can be modified here. Calling up the built-in configuration interface Call up the built-in online configuration interface under Start -> All Programs ->... -
Page 21: Plc Status
Fi network security. 4.3.3 Ethernet status The status of the network connection is displayed in this area. Device configuration In the device configuration area, you can modify settings for device security, network, HomePlug (PLC), date and time and LED. Renkforce PL500D WiFi... -
Page 22: Device Security
By default, the built-in configuration interface of the PL500D WiFi is not pro- tected with a password. However, we recommend assigning a password when the installation of the PL500D WiFi is complete to protect it against tam- pering by third parties. -
Page 23: Plc Settings
The option Retrieve date and time automatically is activated by default so that the PL500D WiFi can automatically synchronise the date and time. Select your Time zone and the Time server. If you have enabled the option Adjust to daylight saving time automatically, the PL500D WiFi automati- cally adjusts to daylight saving time. -
Page 24: Access Point
24 Network configuration If you would like, you can completely shut off the Wi-Fi part of your PL500D WiFi, e.g. if you want to operate it exclusively as a simple PLC device via the built-in Ethernet connections. There are three different meth- ods for switching the Wi-Fi function on and off: •... -
Page 25: Guest Account
For operation as an access point, a (transmission) channel must be specified. There are 13 channels available. We recommend keeping the default setting Auto, since in this setting the PL500D WiFi selects the channel regularly and independently. In other words, if the last connected station logs out, a search for a suitable channel is carried out immediately. -
Page 26: Wlan Filters
63 characters. You can simply enter this using the keyboard, without having to convert it into hexadecimal format first. Under Mode, you can limit access to the PL500D WiFi to the method you have selected. -
Page 27: Parental Controls
Keep in mind that you also have to enter the MAC address of your own com- puter if you are connected to the PL500D WiFi not via the Ethernet port, but via WLAN. Otherwise you will block your own access to the device via WLAN by activating the WLAN filter!! 4.5.4... -
Page 28: Wlan Time Control
The daily time quota can be specified in hours and minutes. A time quota can only be used if it matches the time periods defined in the WLAN time control and if the PL500D WiFi is enabled and there is an Internet connection. (see 'WLAN time control'). -
Page 29: Wi-Fi Protected Setup (Wps)
Then the time control automatically switches the wireless network on or off. Keep in mind that, as long as the PL500D WiFi registers connected stations, the wireless network remains enabled. The wireless network is not switched off until the last station has logged off. -
Page 30: Wifi Move
Start setup button. Open the configuration interface of the WLAN client to be added and transmit the PIN selected on the PL500D WiFi. Confirm the encryption process as described there. Now the devices exchange their encryption keys and establish a secure WLAN connection. -
Page 31: Wifi Clone
With the Management -> Reset configuration command, the PL500D WiFi is reset to the original factory defaults. In doing so, you lose your personal settings. The last-assigned PLC password for the PL500D WiFi is also reset to the PLC standard password HomePlugAV. To secure your PLC network individually again, reconfigure it by using either the encryption button (see Chapter 'Configuring the PLC network'). -
Page 32: Saving A Configuration File
32 Network configuration For backup purposes, all active configuration settings can be transmitted to your computer, stored there as a file and reloaded into the PL500D WiFi. In this way, you can for example generate configurations for different network environments, with which you can set up the device quickly and easily. -
Page 33: Encrypting The Plc Network Via The Configuration Software
• Add further adapters To add a new adapter to your network, first connect it directly to your com- puter and launch the wizard again. Then assign the password that will apply to all adapters in your home network. Renkforce PL500D WiFi... -
Page 34: Appendix
Rather, in Germany, they can be given to a municipal collection point free of charge. Contact your municipal government to find out the address and hours of the nearest collection point. Renkforce PL500D WiFi... -
Page 35: Warranty Conditions
Renkforce PL500D WiFi... - Page 36 The law of the Federal Republic of Germany is applicable. The UN commercial law does not apply to dealings between the manufacturer and the purchaser. Renkforce PL500D WiFi...
