Summary of Contents for Art Lighting Production ASTERION
-
Page 1: Operating Instructions
ASTERION Operating instructions ©Art Lighting Production, s.r.o. - Page 2 Dear customer We hope that you will be satisfied with your new powerful LED floodlight ASTERION for many years. The firm Art Lighting Production, s.r.o. puts the customer service on first place. Therefore we have also intensively focused ourselves on quality and the customer service in recent years. The better and higher quality products we sell the fewer problems we will have with the service and vice versa.
-
Page 3: Table Of Contents
Storing of the selected colors ...................... 9 Recalling memory without DMX signal..................9 Distribution of DMX values in the channel No. 7 – DMX table ........... 9 Extended menu scheme ......................11 V. Turnable Asterion frames ......................12 www. artlighting.cz... - Page 4 Description of the product. 2. Protecting light diffusion plate 1. Disc / flange for installing fastening elements 7. Three-segment display 6. DMX Output 4. Output power supply 230V 10. Indicator DMX 5. DMX Input 3. Input power supply 230V 8. UP button 9.
- Page 5 If you want to connect several floodlight battens then you shall use from the optional accessories the item No. 12. Powercon interconnecting cable. The Powercon is designed for a load of 10A. You shall not connect in series more than 8 ASTERION luminaires!!! 5. DMX Input.
-
Page 6: Optional Accessories
Optional accessories 11. Powercon power supply cable. 12. Powercon interconnecting cable 13. Half-yoke for luminaire suspension (pair) 14. Legs for positioning of the luminaire (pair) 15. Barn door 16. Diffuser for bottom lighting (preventing formation of shadows) www. artlighting.cz... -
Page 7: Setting The Dmx Address
DMX table Function description Green Blue White Total intensity of the mixed color Strobo Memory Optional DMX channels. The user can enable or disable the optional channels. I. Setting the DMX Address Set the required DMX address with Up and Down Buttons. The new set address does not need confirmation. -
Page 8: Strobo - Dmx Channel No. 6
LED dimming. However, if you do not want to use the Asterion as the ordinary luminaire but as stroboscopic effect then it is necessary to switch off this function. The whole process of the switched on smoothened dimming (halogen performance), stroboscopic effect and switched off smoothened dimming is controlled just by the DMX channel 6. -
Page 9: Dmx Channel No. 7 - Memory
III. DMX channel No. 7 - MEMORY Enabling and disabling of the DMX channel No. 7. Set the DMX address 506. Wait until the address 506 is confirmed by display flash and hold the up button for approx. 3 seconds. On the display will appear 7.c.1 7.c.0... -
Page 10: Storing Of The Selected Colors
Storing of the selected colors When the DMX address 1 is set then press and hold the down button for approx. 2 seconds until the display shows the item C.01 . Then you can normally scroll through the items (by holding or by individual pressing of the buttons). -
Page 11: Safety Instructions
Do not look at a short distance directly into the light if the equipment is lit. The light output is so intense that it can damage your eyes. The Powercon connector is designed for a load of 10A. Never connect in series more than 8 ASTERION luminaires! www. artlighting.cz... -
Page 12: Extended Menu Scheme
IV. Extended menu scheme www. artlighting.cz... -

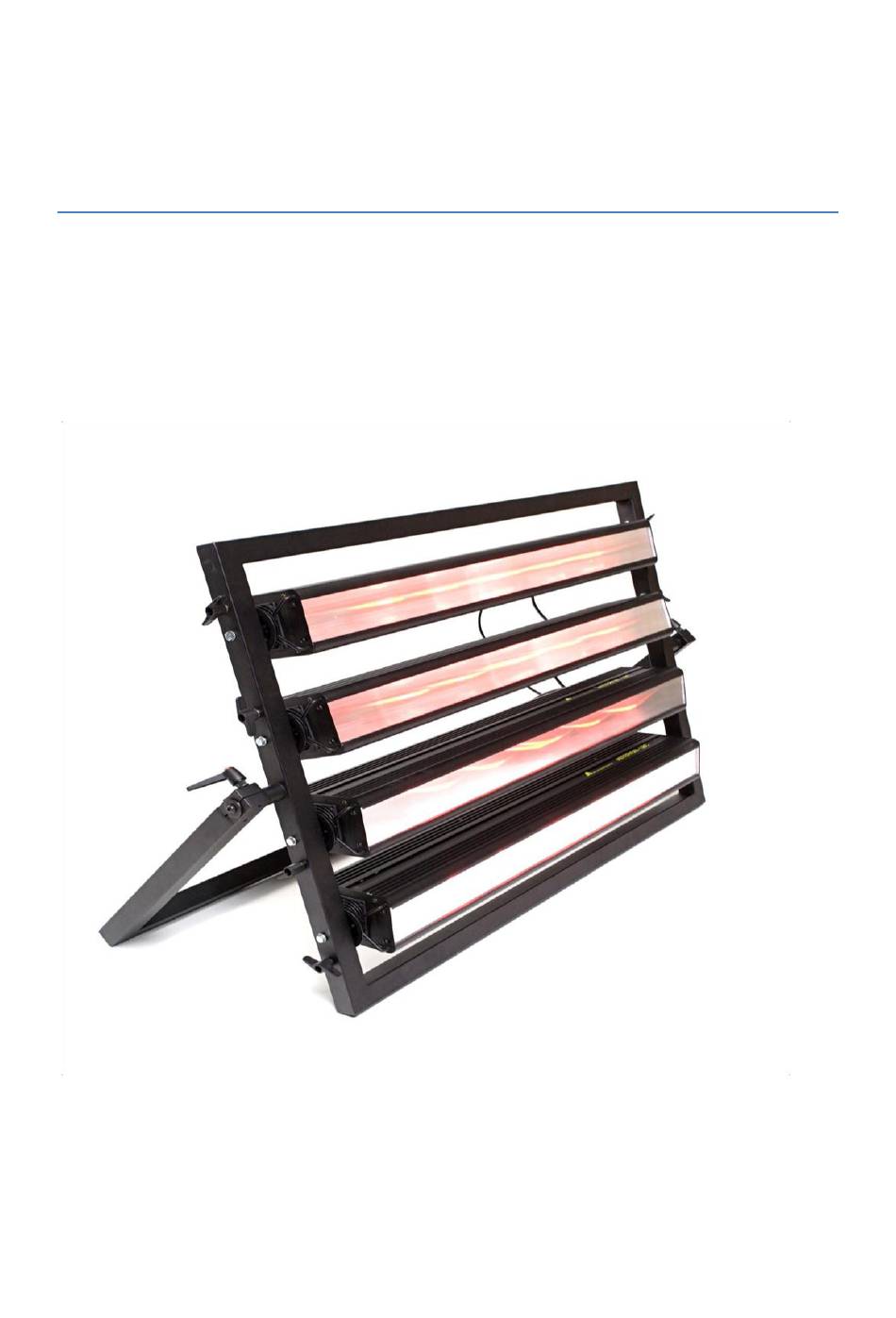

Page 13: Turnable Asterion Frames
The transport cases can be supplied also for 2, 3 and 4 pcs of Asterion luminaires without frame! Art Lighting Production, s.r.o.
