Steelmaster TAP 50 Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®

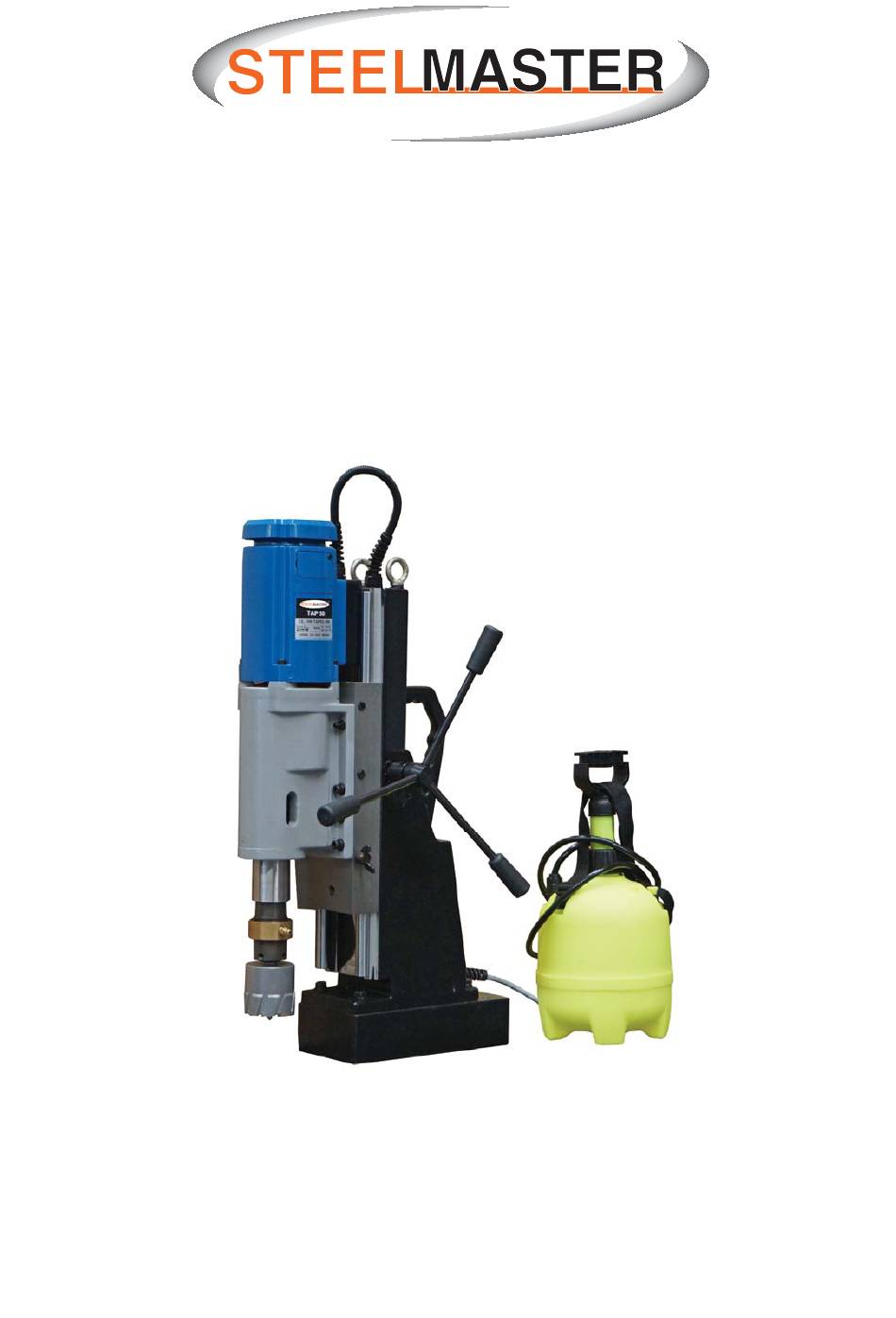

TAP 50
DRILLING MACHINE
OPERATOR'S MANUAL
BEFORE USE, ENSURE EVERYONE USING THIS MACHINE READS AND UNDERSTANDS
ALL SAFETY AND OPERATING INSTRUCTIONS IN THIS MANUAL .
Serial #............................................
Date of Purchase............................

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TAP 50 and is the answer not in the manual?

Questions and answers

Summary of Contents for Steelmaster TAP 50

  • Page 1 ® TAP 50 DRILLING MACHINE OPERATOR’S MANUAL BEFORE USE, ENSURE EVERYONE USING THIS MACHINE READS AND UNDERSTANDS ALL SAFETY AND OPERATING INSTRUCTIONS IN THIS MANUAL . Serial #..........Date of Purchase......
  • Page 2 STEELMASTER TAP 50 DRILLING MACHINE IMPORTED & DISTRIBUTED BY INDUSTRIAL TOOL & MACHINERY SALES 18 BUSINESS ST YATALA QLD 4207 AUSTRALIA 07 3287 1114 07 3287 1115 sales@industrialtool.com.au www.industrialtool.com.au WARRANTY TERMS In addition to any warranties or conditions implied by applicable Statute or Regulations, Industrial Tool &...

  • Page 3: Table Of Contents

    STEELMASTER TAP 50 DRILLING MACHINE TABLE OF CONTENTS Safety Instructions - 4 - 1.1. Read And Save All Instructions For Future Reference - 4 - 1.2. Safety Requirements - 4 - Special Safety Requirements - 6 - Specifications - 7 -...

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS READ OPERATOR’S MANUAL BEFORE YOU START TO WORK WITH THE MACHINE. 1. Safety Instructions The TAP50 Magnetic Base Drilling Machine should be used only to applications stated in the manual. Using in other applications may lead to personal injury and machine damage. 1.1.
  • Page 5 SAFETY INSTRUCTIONS Use clamps or a vice to hold work. It is safer than using your hand and it frees both hands to operate tool. 12. Do Not Overreach Keep proper footing and balance at all times. 13. Maintain Tools with Care Keep tools sharp and clean for better and safer performance.

  • Page 6: Special Safety Requirements

    SAFETY INSTRUCTIONS 1.3. Special Safety Requirements Read and follow operator’s manual thoroughly. If you cannot locate your operator’s manual contact ITM (www.industrialtool.com.au) for an additional FREE copy. DO NOT touch rotating cutter or parts. Always stop machine completely and unplug from power source before changing cutters, cleaning clips, refilling lubrication or performing adjustments.

  • Page 7: Specifications

    SAFETY INSTRUCTIONS 1.4. Specifications Maximum hole cutting capacity Ø 200mm Maximum tapping capacity Spindle bore Morse Taper 5 Speed 2 gear variable: 1st gear: 20 - 40RPM 2nd gear: 45 - 110RPM Motor Single phase 230V - 25-60Hz Total power consumption (motor & magnet) 3000W Width (with handles) 300mm Length...

  • Page 8: Operation

    OPERATION 2. Operation Eyebolt Motor For easy lifting and 3000W handling of the machine Lifting For easy handling and moving of the machine Capstan Arm With large gear ratio. Fast attach connection for both left and right side Control Panel Morse Taper 5 Spindle Powerful Magnet 2300kg deadlift.

  • Page 9: Stopping And Starting The Machine

    OPERATION 2.1. Stopping & Starting The Machine Before starting the motor, always make sure to turn on the magnetic switch first. When the magnet is activated, the motor can be started with red start button. Stopping the motor must always be done with the blue stop switch.

  • Page 10: Use Of Cutting Fluid

    OPERATION 2.3. Use Of Cutting Fluid The use of cutting fluids is absolutely necessary when drilling with steel cutters. Always use the correct cutting oil intended for use. Other oils may provide insufficient lubrication under different temperatures. When cutting with hard and difficult materials and a deep hole, it may be advantageous to provide cutting oil under pressure.

  • Page 11: Adjustment Of The Slide

    OPERATION 2.5. Adjustment Of The Slide For the machine to work well, it is essential that the slide that controls the core feeding movements, can be moved in an easy and controlled way without lateral movement or vibration. Periodic adjustment of the slide is performed as follows: •...
  • Page 12 OPERATION Visually check the machine for damage. Machine must be checked before operation for any signs of damage that will affect the operation of the machine. Particular notice must be taken of the mains cable, if the machine appears to be damaged it should not be used failure to do so may cause injury or death. Check operation of the machine.
  • Page 13 OPERATION With regular use, the armature should be checked at least once per month. Look for visible damage or wear to the armature body and the commutator (commutator are brass plates which the brushes are touching). The brushes will naturally wear on the commutator. This is normal.

  • Page 14: Solutions For Drilling Problems

    SOLUTIONS FOR DRILLING PROBLEMS...

  • Page 15: Trouble Shooting

    TROUBLE SHOOTING Neither Magnet or Motor is • The magnetic switch is not powered working • Damaged or defective wiring • Damaged or defective fuse • Faulty magnetic switch • Defective control box • Faulty power supply Magnet is active, but motor •...
  • Page 16 PARTS BREAKDOWN...
  • Page 17 PARTS BREAKDOWN...
  • Page 18 PARTS BREAKDOWN...
  • Page 19 PARTS BREAKDOWN...
