PI200

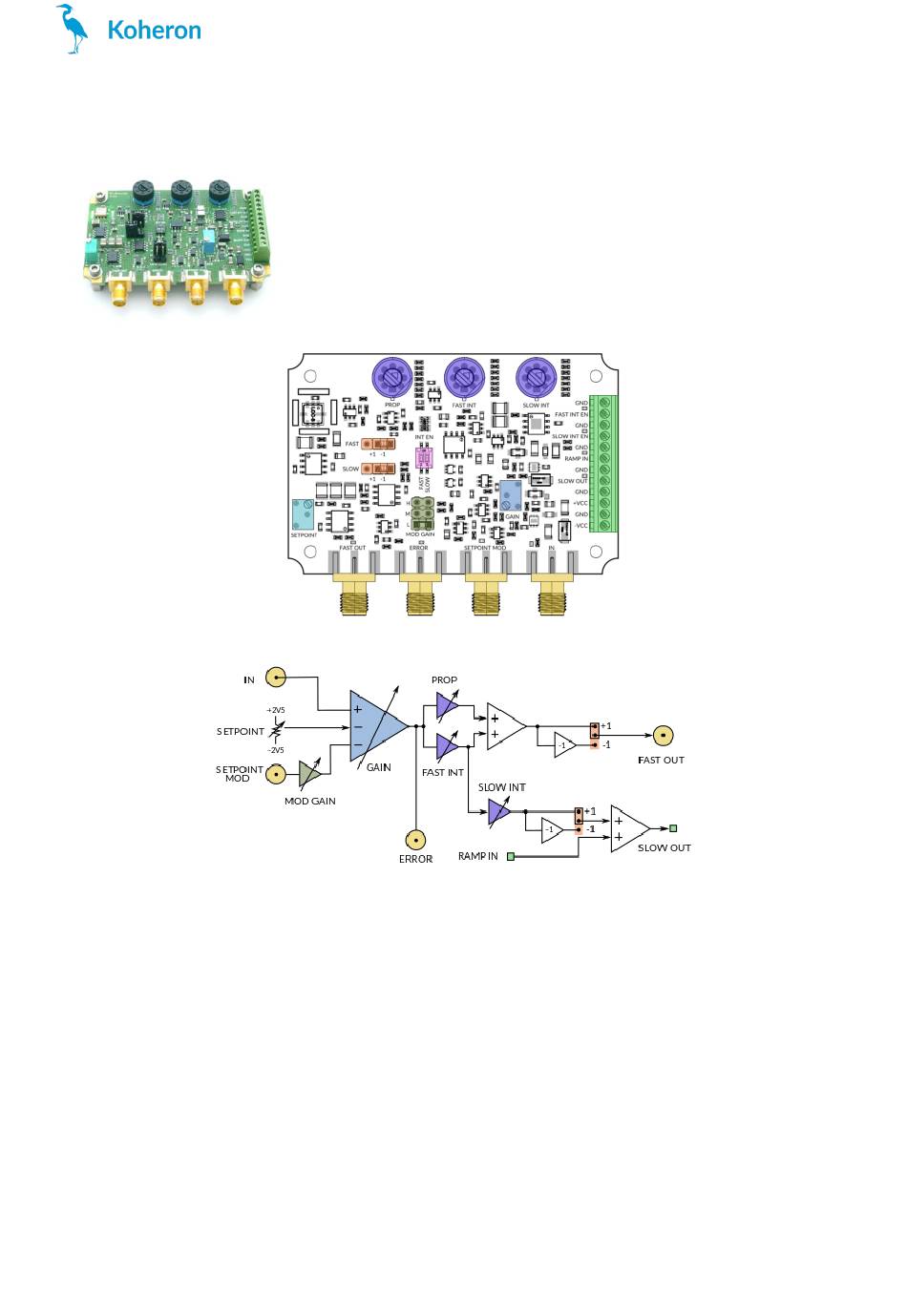

PI200 User Guide
Power supply
You need to supply +5 V on the +Vcc pin and -5 V on the -Vcc pin. Do not apply any voltage outside this range on
the board.
Setpoint
Setpoint can be adjusted between -2.5 V and +2.5 V with the SETPOINT trimmer. The setpoint can be modulated
with the SETPOINT MOD input. Modulation input is DC coupled, gain is 1 V/V, 0.1 V/V or 0.01 V/V, depending
on the MOD GAIN jumper.
Feedback sign
The sign of the feedback for FAST OUT and SLOW OUT can be chosen with the FAST and SLOW jumpers (+1 or -
www.koheron.com
1 / 2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Koheron PI200
Summary of Contents for Koheron PI200
- Page 1 PI200 PI200 User Guide Power supply You need to supply +5 V on the +Vcc pin and -5 V on the -Vcc pin. Do not apply any voltage outside this range on the board. Setpoint Setpoint can be adjusted between -2.5 V and +2.5 V with the SETPOINT trimmer. The setpoint can be modulated with the SETPOINT MOD input.
- Page 2 SLOW INT (PI200 version): 800 mHz / 2.4 Hz / 8 Hz / 24 Hz / 80 Hz / 240 Hz / 800 Hz. SLOW INT (PI200-T version) : 8 mHz / 24 mHz / 80 mHz / 240 mHz / 800 mHz / 2.40 Hz / 8 Hz.
