Summary of Contents for Doosan LIN-Q DTM-01

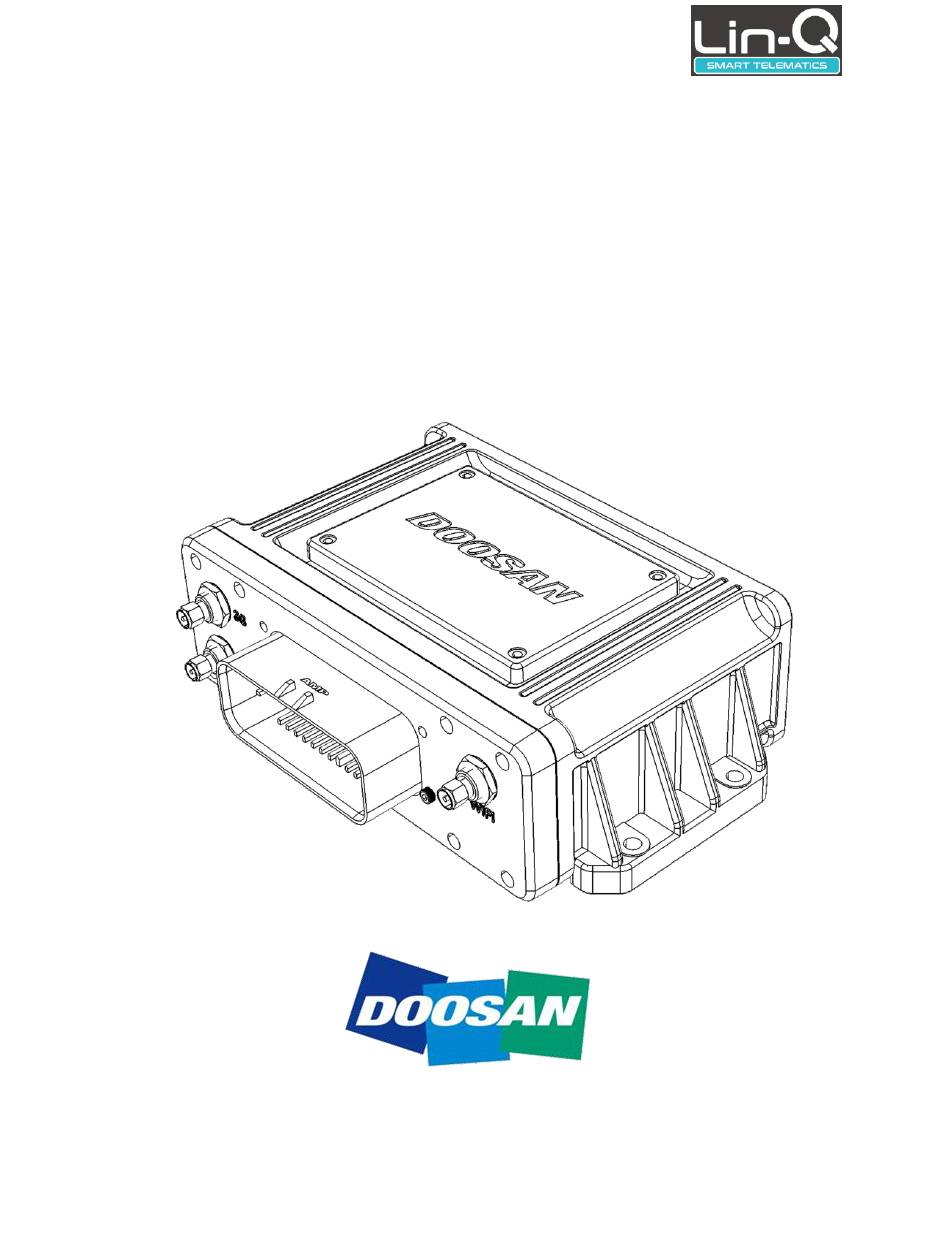

- Page 1 DTM-01 USER’S GUIDE ©All Rights Reserved...
-
Page 2: Revision History
DTM-01 User’s Guide Rev.: 1.0 Revision History Revision Issue Date Author Scope 2018/11/16 Ahn.H.W Initial Release +Update: 26/11/18 Rev. 1.0 Page 2 of 29 This page contains confidential information, which is protected by copyright and is proprietary to DIV No part of this document may be used, copied, disclosed or conveyed to another party without prior written consent of DIV... -
Page 3: Table Of Contents
DTM-01 User’s Guide Rev.: 1.0 Contents WARNINGS FOR SAFETY OPERATION ..............5 INTRODUCTION ...................... 6 OVERVIEW ......................7 Components ..............................7 Connection Diagram ............................8 Features ................................9 HARDWARE DESCRIPTIONS ................10 DTM-01................................10 4.1.1 Status LED ............................12 4.1.2 DIP Switch ............................ - Page 4 DTM-01 User’s Guide Rev.: 1.0 Figure FIGURE １ LIN-Q SYSTEM ..........................6 FIGURE ２ PACKAGE COMPONENT ......................... 7 FIGURE ３ CONNECTION DIAGRAM ........................ 8 FIGURE ４ DTM-01 TERMINAL ........................10 FIGURE ５ STATUS LED ........................... 12 FIGURE ６ DIP SWITCH ............................. 13 FIGURE ７...
-
Page 5: Warnings For Safety Operation
DTM-01 User’s Guide Rev.: 1.0 1 Warnings for safety operation This is to protect your safety and property. Please read this manual carefully before using. Operational Environment The operating voltage of this products is between 9Vdc and 34Vdc. Please use the specified operating volgage. -
Page 6: Introduction
DTM-01 User’s Guide Rev.: 1.0 2 Introduction The DTM-01 is a product to the Doosan Lin-Q system. This product is an IoT(Internet of Things) terminal that can be used anywhere in the world by using 3G communication networks or WIFI communication networks. -
Page 7: Overview
DTM-01 User’s Guide Rev.: 1.0 3 Overview 3.1 Components DTM-01 is composed of the following components. It is required that separate harness cable assembly for the connection with the vehicle. DTM-01 Shock Sensor Module Internal Battery GPS Antenna WIFI Antenna 3G Antenna Figure ２... -
Page 8: Connection Diagram
DTM-01 User’s Guide Rev.: 1.0 3.2 Connection Diagram Below figure shows the terminal connection diagram. ① DTM-01 ② WIFI antenna ③ 3G antenna ④ GPS antenna ⑤ Shock sensor module Figure ３ Connection Diagram +Update: 26/11/18 Rev. 1.0 Page 8 of 29 This page contains confidential information, which is protected by copyright and is proprietary to DIV No part of this document may be used, copied, disclosed or conveyed to another party without prior written consent of DIV... -
Page 9: Features
DTM-01 User’s Guide Rev.: 1.0 3.3 Features Dual communication mode WIFI mode 3G mode Optimized functions for industrial vehicles CAN data collection function Vairous sensor data collection function of vehicle Periodic transmission function for collected data ... -
Page 10: Hardware Descriptions
DTM-01 User’s Guide Rev.: 1.0 4 Hardware Descriptions 4.1 DTM-01 The name of each part of the terminal is as follows. Cover DIP Switch SIM Socket Reset Button Internal Battery 3G Ext. Antenna WIFI Registration Button GPS Antenna I/O Connector port Status LED WIFI Ext. -
Page 11: Table 1 Descriptions For Each Parts Of Dtm-01
DTM-01 User’s Guide Rev.: 1.0 Status LED Represent the terminal status 4 LEDs Cover Terminal upper cover Reset Button Terminal is re-bootting when the button is pressed DIP Switch It’s for developer. No allowded to general user. Frequency Range 2412 MHz~2462 MHz WIFI WCDMA B5 826.4 MHz ~ 846.6 MHz... -
Page 12: Status Led
DTM-01 User’s Guide Rev.: 1.0 4.1.1 Status LED DTM-01 displays the status of the terminal with LED. The LED is composed of four, and the status of the terminal according to the color is shown in the following table. Figure ５ Status LED Item Color Status... -
Page 13: Dip Switch
DTM-01 User’s Guide Rev.: 1.0 4.1.2 DIP Switch There are 6 DIP switches. All switches are in off state by default. This switch is for developer. Figure ６ DIP Switch 4.1.3 SIM Socket The micro SIM is adopted. When inserting the SIM card, be careful the direction of the SIM card. -
Page 14: Wifi Registration Button
DTM-01 User’s Guide Rev.: 1.0 4.1.4 WIFI Registration Button It is a button used for registering with a wireless access point (AP) when the terminal is used in the WIFI mode. For details on how to use it, refer to "WIFI Mode Operation" in the next chapter. 4.1.5 Reset Button Terminal will be rebooted when this button is pressed. -
Page 15: Antenna
DTM-01 User’s Guide Rev.: 1.0 Tighten the external antenna to the WIFI port of the terminal so that it does not come loose. The specifications of the WIFI external antenna are as follows. Item Specification Unit Frequency 2400 ~ 2500 VSWR <... -
Page 16: Figure １１ Connecting 3G External Antenna
DTM-01 User’s Guide Rev.: 1.0 Tighten the antenna to the 3G port of the terminal so that it does not come loose. Figure １１ Connecting 3G External Antenna The specifications are as follows. Specification Item Unit 824 ~ 960 Frequency 1500 ~ 2170 2300 ~ 2700 <... -
Page 17: Gps Antenna
DTM-01 User’s Guide Rev.: 1.0 4.4 GPS Antenna It is an antenna for GPS signal reception. The GPS antenna should be installed in a clear view of the sky. Below is the shape of the GPS antenna. Figure １２ GPS Antenna Tighten the antenna to the GPS port of the terminal so that it does not come loose. -
Page 18: Shock Sensor Module
DTM-01 User’s Guide Rev.: 1.0 4.5 Shock Sensor Module The shock sensor module is installed on the vehicle via harness cable ass’y from the I/O port of the DTM-01. The shock sensor module must be installed in accordance with the prescribed regulations. -
Page 19: Internal Battery
DTM-01 User’s Guide Rev.: 1.0 4.6 Internal Battery The terminal has a built-in battery and the main specifications are as follows. Li-Ion , 3000 mAh 18mm(D) x 65mm(L) Discharging Temperature: -20℃ ~ +70℃ The below figure shows how to connect the battery terminals. Plug the battery terminal into the housing of DTM- Figure １５... -
Page 20: How To Use
5.1 User Registration User registration is required to use this product. In order to registration, please contact to your sales office or visit the “https:// lin-q.doosan- iv.com”. For more detailed information, please reefer to the Lin-Q user’s guide. 5.2 3G Mode Operation In order to operate the terminal in 3G mode, it must be subscribed to 3G communication service and have a USIM card. -
Page 21: How To Connect
DTM-01 User’s Guide Rev.: 1.0 5.3.1 How to connect In order to connect WIFI access point, Please follow the steps below. ① Remove the DTM-01 terminal top cover. ② Apply power to the terminal ③ Press the WIFI registration button for more than 3 seconds. WIFI registration button - Press and hold for more than 3 seconds - Figure １６... -
Page 22: Figure １８ Wifi Searching
DTM-01 User’s Guide Rev.: 1.0 ⑤ Search for WIFI using smartphone or PC. ⑥ Please check if “ZentriOS”is found in the list. . Figure １８ WIFI Searching +Update: 26/11/18 Rev. 1.0 Page 22 of 29 This page contains confidential information, which is protected by copyright and is proprietary to DIV No part of this document may be used, copied, disclosed or conveyed to another party without prior written consent of DIV... -
Page 23: Figure １９Insert Wifi Password
DTM-01 User’s Guide Rev.: 1.0 Figure １９Insert WIFI Password ⑦ Click on “ZentriOS” and enter your password. The password is "password".. +Update: 26/11/18 Rev. 1.0 Page 23 of 29 This page contains confidential information, which is protected by copyright and is proprietary to DIV No part of this document may be used, copied, disclosed or conveyed to another party without prior written consent of DIV... -
Page 24: Figure ２０ Wifi Activation
DTM-01 User’s Guide Rev.: 1.0 Figure ２０ WIFI Activation ⑧ When the connection is completed, ZentriOS is activated as shown below. ⑨ Open a web browser on your smartphone or PC and enter "setup.com" in the address bar. Then, the available WIFI list is automatically searched as below Figure ２１... -
Page 25: Figure ２２ Connecting Access Point
DTM-01 User’s Guide Rev.: 1.0 ⑩ Click on the ID (SSID) of the WiFi you want to connect to, and type the WIFI password and then press the “Connect” button. Figure ２２ Connecting Access Point ⑪ If the connection is successful, "Setup is complete" message is displayed as shown below. -
Page 26: Wifi Manual Registration
DTM-01 User’s Guide Rev.: 1.0 WIFI Registration Button - Pressing during 1 second - Figure ２４ WIFI Set up Complete Button ⑬ The terminal is ready to transmit data in WIFI mode. 5.3.2 WIFI Manual Registration ① Open a web browser, type “setup.com” in the address bar, and press the “Other” Figure ２５... -
Page 27: Figure ２６ Manual Registration 2
DTM-01 User’s Guide Rev.: 1.0 Figure ２６ Manual Registration 2 ② After pressing the “Other” button, below screen will be shown. ③ Select one security type among the WPA2 / WPA, Open, and WEP. Please put the SSID directly and type the password. If you select “Open”, enter only SSID and do not enter the password. - Page 28 DTM-01 User’s Guide Rev.: 1.0 bellows. ⑤ Press the WIFI registration button again for 1 second. The blinking yellow LED will be turned off and the terminal will reboots automatically after saving the setting. ⑥ The terminal is ready to transmit data in WIFI mode. +Update: 26/11/18 Rev.
-
Page 29: Limited Warranty
DTM-01 User’s Guide Rev.: 1.0 6 Limited Warranty This product is manufactured through strict quality control and inspection process. In the event of a malfunction in normal use by the customer, the Service Center will repair it free of charge during the warranty period (one year from the date of purchase). - Page 30 Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
