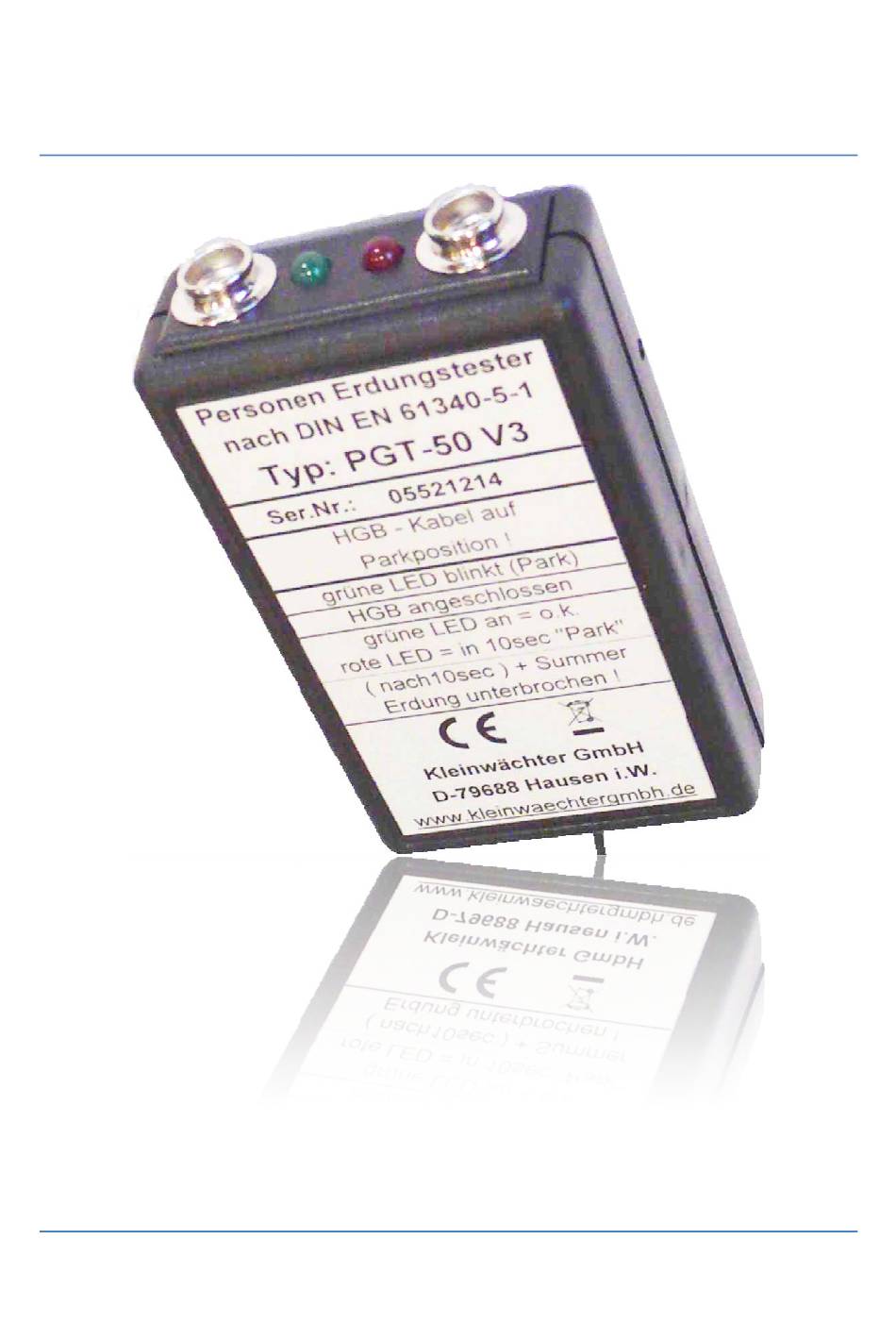

- Page 1 MANUAL MANUAL Personal Grounding Grounding Tester PGT 5 51 (52) Permanent Personal Grounding Tester Permanent Personal Grounding Tester (PGT 52 includes Relay Output)
-
Page 2: Table Of Contents
Manual PGT 51 (PGT 52) Contents Description ..................................2 JUMPER ....................................2 Legend ....................................3 Function ....................................3 Relay Output (only PGT-52) ............................. 4 Specifications ..................................4 Operating Instruction ............................... 5 Measure Operating ................................6 short instruction ................................6 Limits (JUM1 OFF) ................................. 6 Delivery parts .................................. -
Page 3: Legend
Legend Legend Popper 10mm to connect the wrist strap Popper 10mm (3,5mm) to park the wrist strap cable Grounding cable LED “Alarm” (red) LED „o.k.“ (green) Power connector Switch „H“ Relay Output (only PGT 52) Function ABS Plastic housing with connector for one wrist strap (WST) with 10mm popper Permanent grounding monitoring, which means the unit recognizes whether the wrist strap is applied. -
Page 4: Manual Pgt 51 (Pgt
Manual PGT 51 (PGT 52) Relay Output (only PGT-52) The Relay function can be select by jumper JUM2 :: JUM2 OFF (open) Alarm relay Relay switchs on together with the buzzer (JUM3=ON) Otherwise (JUM3=OFF) the relay switchs on 10seconds delayed after the buzzer. -
Page 5: Operating Instruction
Operating Instruction Operating Instruction WST – Cable in „PARK" Position WST – Cable connected to the wrist strap Mount the unit with the power strips at the working place. Connect the grounding cable to the reference grounding point at the table or table mat. Connect a wrist strap cable to the „PARK“... -
Page 6: Measure Operating
Manual PGT 51 (PGT 52) Measure Operating Disconnect the wrist strap cable from Park position Disconnect the wrist strap cable from Park position Connect it to the popper on your wrist strap Connect it to the popper on your wrist strap... -
Page 7: Limits Adjust
Limits Adjust Limits Adjust Switch H ⇓ You need : Pin or small screw driver, by JUM1 OFF: Reference resistor box RRP-50 for lower (UGW) and upper (OGW) Limit. Measure cord with 4mm Plug by JUM1 ON: New Reference wrist strap same as you will use later Procedure •... -
Page 8: Calibration
The guarantee expires if the device was opened. Different Versions: PGT 51 – PGT 52 with 10mm Popper for the Park position PGT 51/3 – PGT 52/3 3,5mm Popper for the Park position If you need other poppers or special contacts for your wrist strap be not hesitate to contact us ! c/o Kleinwächter GmbH 2016...
