Powerbx LITE Installation Instructions

POWERBX, Inc.
COVER

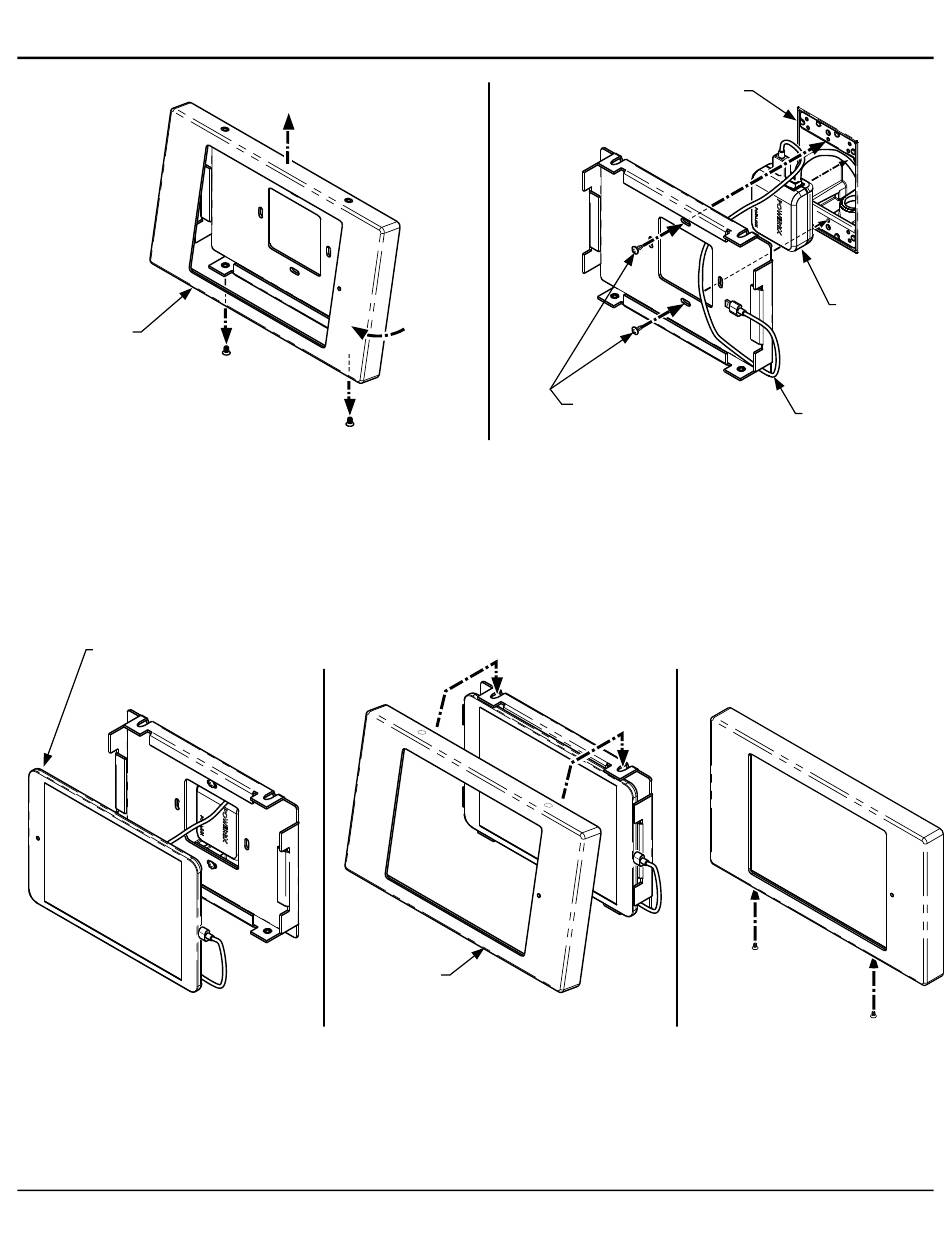

Step 1: Remove two Cover Screws. Rotate
bottom of Cover away from Base and then pull
Cover up.
iPad
(Customer supplied)
Step 3: Attach Power Output cable
from POE-Link to iPad (customer
supplied). Position iPad on Base
and hold in place while installing
Cover.
POWERBX, Inc.
www.POWERBX.com P.O. Box 2833, Citrus Heights, CA 95611 1-888-500-9242
COVER
Step 4: Replace the Cover by
positioning studs on inside of Cover
into the slots on the top of the Base.
Then rotate the Cover into place as
shown.
iPad Wall Mount Installation Instructions
Outlet Box
(Part of finished wall)
MOUNT SCREWS
Step 2: Attach Power Input (Ethernet) and
Power Output (USB/iPad) cables to POE-Link
adaptor (purchased separately). Place POE-
Link inside outlet box, and then attach Base to
outlet box using supplied #6 self-tapping
screws. See page two for alternate mounting
Step 5: Replace Cover Screws
to hold Cover in place. Do not
over tighten.
POE-Link
(Purchased
Separately)
POWER OUTPUT
CABLE
Ver 1.4
1
