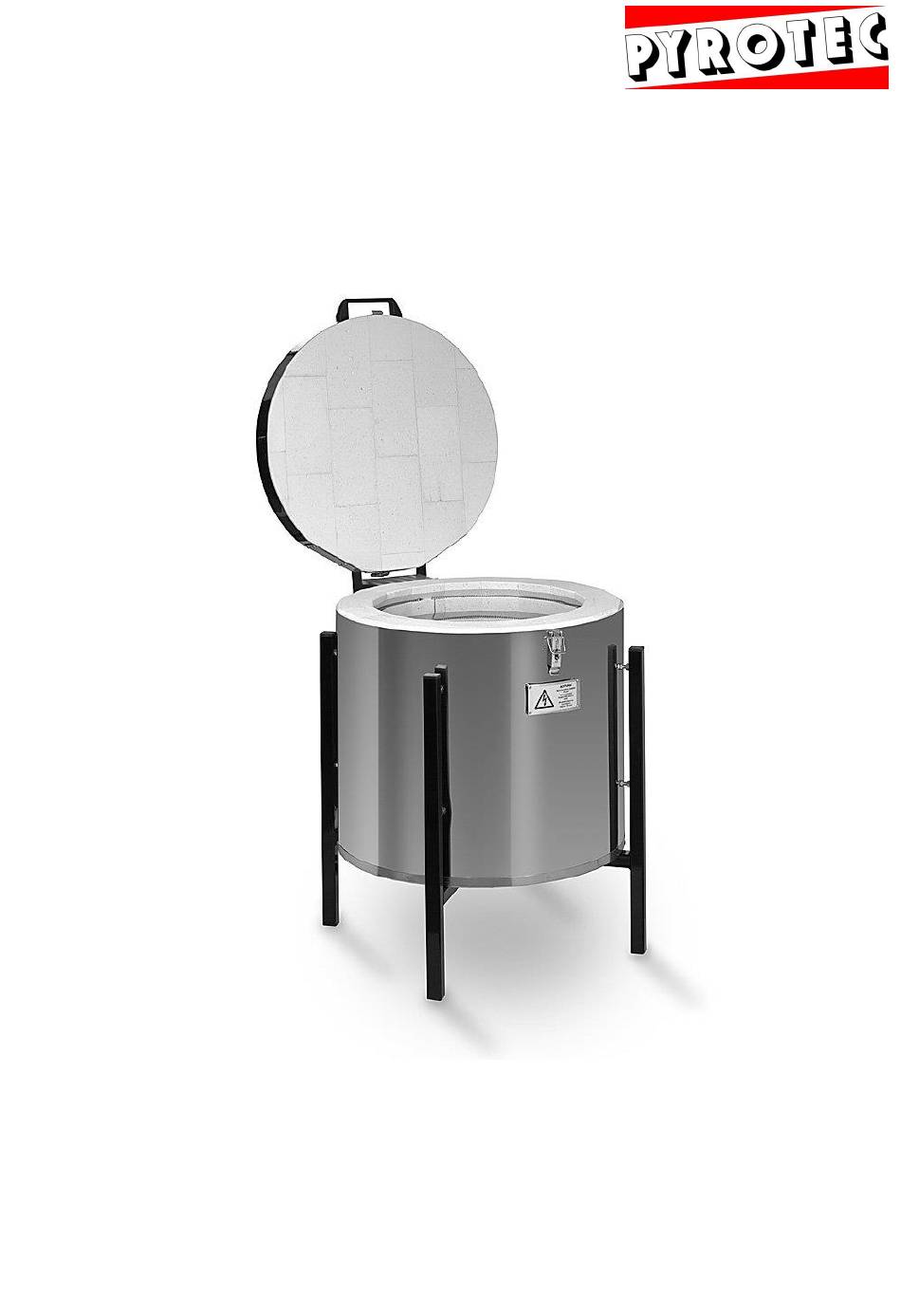

- Page 1 Instruction Manual – Kilns up to 1320°C PY 12 H – PY 290 HS ST 35 H – ST 250 HD...
- Page 2 Angewandte nationale Normen: The following norms were consulted to assess conformity: VDE 0100 VDE 0700 Teile 1 und 244 VDE 0700 Teil 500 (EN 50106) Hersteller: PYROTEC Brennofenbau GmbH Manufacturer D-49074 Osnabrück, Ziegelstraße 32b www.pyrotec-gmbh.de Osnabrück, 04.07.2019 Peer Lichtenberg, Geschäftsführer...
-
Page 3: Table Of Contents
Instruction Manual For all models of the series STUDIO 1260°C and PROFITHERM 1320°C Table of Contents page: General Information Safety Precautions Installation of the kiln Controller Electrical Connection First Firing Operation of the Kiln Maintenance Repairs Warranty conditions Faults and their likely causes Test report Please follow the instructions for the installation and observe the safety information for the operation of the kiln! -
Page 4: General Information
General Information This instruction manual introduces you to your PYROTEC-kiln. Please take the time to read the instructions carefully before commissioning the device. Please also pay attention to the separate controller instructions. Safety Information When operating an electrically heated kiln for temperatures up to 1320°C (2408°F), it is absolutely necessary to observe the following safety instructions: •... -
Page 5: Controller
Electrical Connection According to the VDE (German electrotechnology association), PYROTEC-kilns belong to the protection class I. Electrical safety is provided primarily by the protective earth connection. Therefore, the mains supply must be checked or installed by a qualified electrician before commissioning the kiln. -
Page 6: Operation Of The Kiln
Operation of the Kiln PYROTEC-kilns have a maximal application temperature between 1100°C and 1320°C, depending on the model. In most cases, the maximal firing temperature will depend on the characteristics of the ware and be limited to lower values. When in doubt, always use the lower limit temperature. -
Page 7: Repairs
The insulation material of this kiln shows a significant shrinkage after several firings. It is recommended to tighten the kiln shell with a screwdriver or a spanner from time to time (see picture). Repairs CAUTION: Repairs shall only performed authorized specialists (electrician/electrical engineer)! 1) Checking the heating elements (kiln temperature must be below 50°C) -
Page 8: Warranty Conditions
We provide a guarantee of 3 years from date of purchase on flawless manufacture and function of every PYROTEC-kiln. Heating elements and thermocouple are parts subject to wear and therefore not included in the guarantee. Additionally, the manufacturer is not liable for damages resulting from improper handling of the kiln and ware. -
Page 9: Test Report
PRÜFPROTOKOLL / TESTREPORT Serien-Nr /Serial-No: ________________ Ofenmodell/Kiln Model : ________________ Stromaufnahme/Current Intensity : Schutzleiterwiderstand /PE-resistance m Isolationswiderstand /Insulation Resistance > M Ersatzableitstrom /PE - Current Thermoelement korrekter Sitz /Thermocouple OK : Deckelschalterfunktion /Function of Safetyswitch : Osnabrück, ....................... Datum /Date Unterschrift/Signature _eng_betrieb_ofen.doc 19.11.19...
