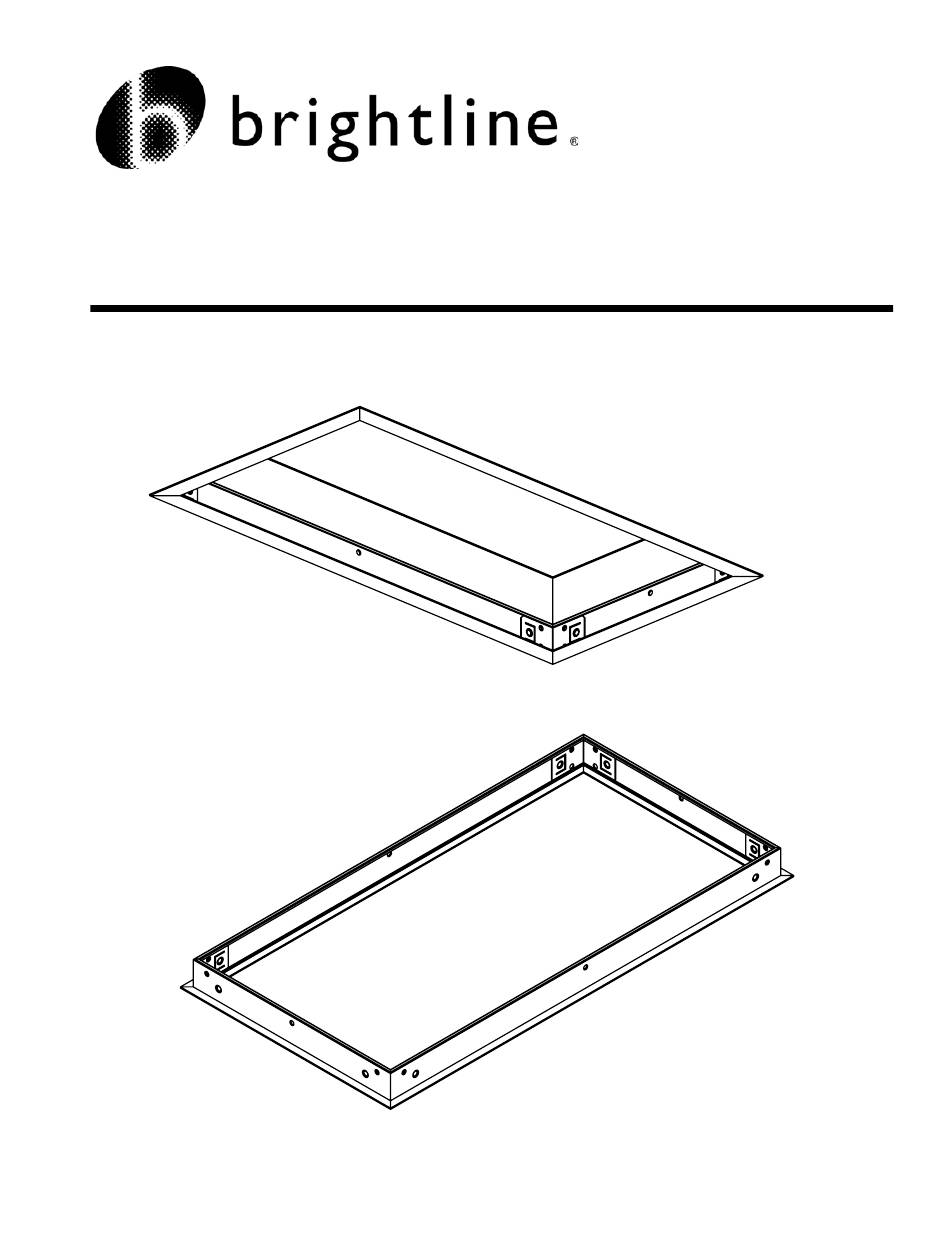

Page 1: Operating Instructions
Drywall Frame Kit Operating Instructions 580 Mayer Street, Building #7, Bridgeville, PA 15017 USA • phone 1.412.206.0106 • fax 1.412.206.0146 www.brightlines.com © 2013 Brightline, L.P... - Page 2 Installation 1. Frame out ceiling opening. +1/8" (3mm) "A" -0" 2. Opening Size: See chart. +1/8" (3mm) "B" -0" Overall Cutout "A" Cutout "B" Description Part Number Frame Dimensions 016-229 1'x2' Imperial Panel 13.06 inches x 25.06 inches 12.25 inches 24.25 inches 24.25 inches 24.25 inches...
- Page 3 Installation 3. Assemble the Drywall Frame Kit with corner brackets. SHIMS (BY OTHERS) IN THE CORNER WILL CLOSE UP SEAMS IN DRYWALL FRAME 4. Place in the ceiling opening. The flange should overlap the drywall.
- Page 4 NOTE: SHIM CORNERS TO CREATE A HAIRLINE SEAM 6. Install * fixture into Drywall Frame Kit from below by angling the fixture through installed frame, and lowering the fixture into position. Note: Electrical power connections must be made prior to installing the fixture unless the top is accessable.
- Page 5 Drywall Frame Kit Sizes 6"x4' (150mm X 1200mm) 6"x2' (150mm X 600mm) 2'x2' (600mm X 600mm) 1'x2' (300mm X 600mm)
- Page 6 WARRANTY Brightline guarantees all its products to be free from defects in materials and workmanship for a period of one (1) year from the date of shipment. PROCEDURES If any product is found to be unsatisfactory under this warranty, the buyer must notify Brightline immediately.
- Page 7 Notes...
- Page 8 Notes...
