Before You Start
The BLOTKSTSC Blower Kit is designed to be installed with the Signature Command System with
the SCSACM A/C control module and is controlled only with the RFSC remote control.
NOTE: This instruction sheet is ONLY for models listed below. Carefully inspect the contents for
shipping damage. If any parts are missing or damaged, immediately inform the dealer from whom
you purchased the part.
Models: KSTDV/DVKST
NOTE: This kit contains only one blower, however, two (2) blowers may be installed if desired as
shown in Figure 2. An additional BLOTKSTSC blower kit must be purchased.
Kit Contents:
1, Blower
1, Wire Harness
4, #8 Sheet Metal Screws
Tools Required:
Short handle Phillips screwdriver
Before installing the blower, turn off the fireplace
and allow to cool. Only a qualified service person
should service and repair the fireplace. A qualified
service person should connect and disconnect the
fireplace to gas supply. Follow all local codes.
Electrical Grounding Instructions:
This appliance is equipped with a three-prong
(grounding) plug for your protection against shock
hazard and should be plugged directly into a prop-
erly grounded three prong receptacle.
Installation Instructions
Wiring
1. Before installing the blower, wire the receptacle into an electrical
circuit. This should be done before framing the fireplace. Wire with
minimum 60° C wire in accordance with prevailing codes.
2. Remove the external junction box cover by removing the screw
from the left side of the outside firebox wall. Junction box was
installed at the factory.
3. The junction box cover has a factory installed "romex" style strain
relief connector. After connecting the wires, route the wire leads
through this connector. Refer to the wiring diagram in Figure 5.
Blower
Installation Instructions
Model: BLOTKSTSC
For Signature Command Systems
1, Louvered Access Panel, Right
1, Louvered Access Panel, Left
IMPORTANT: Always check local building codes. This
installation must comply with local regulations as well
as the National Electric Code.
Electrical connections should only be performed
by a qualified licensed electrician. Main power
supply must be turned off before connecting fans
to the main electrical power supply or performing
service.

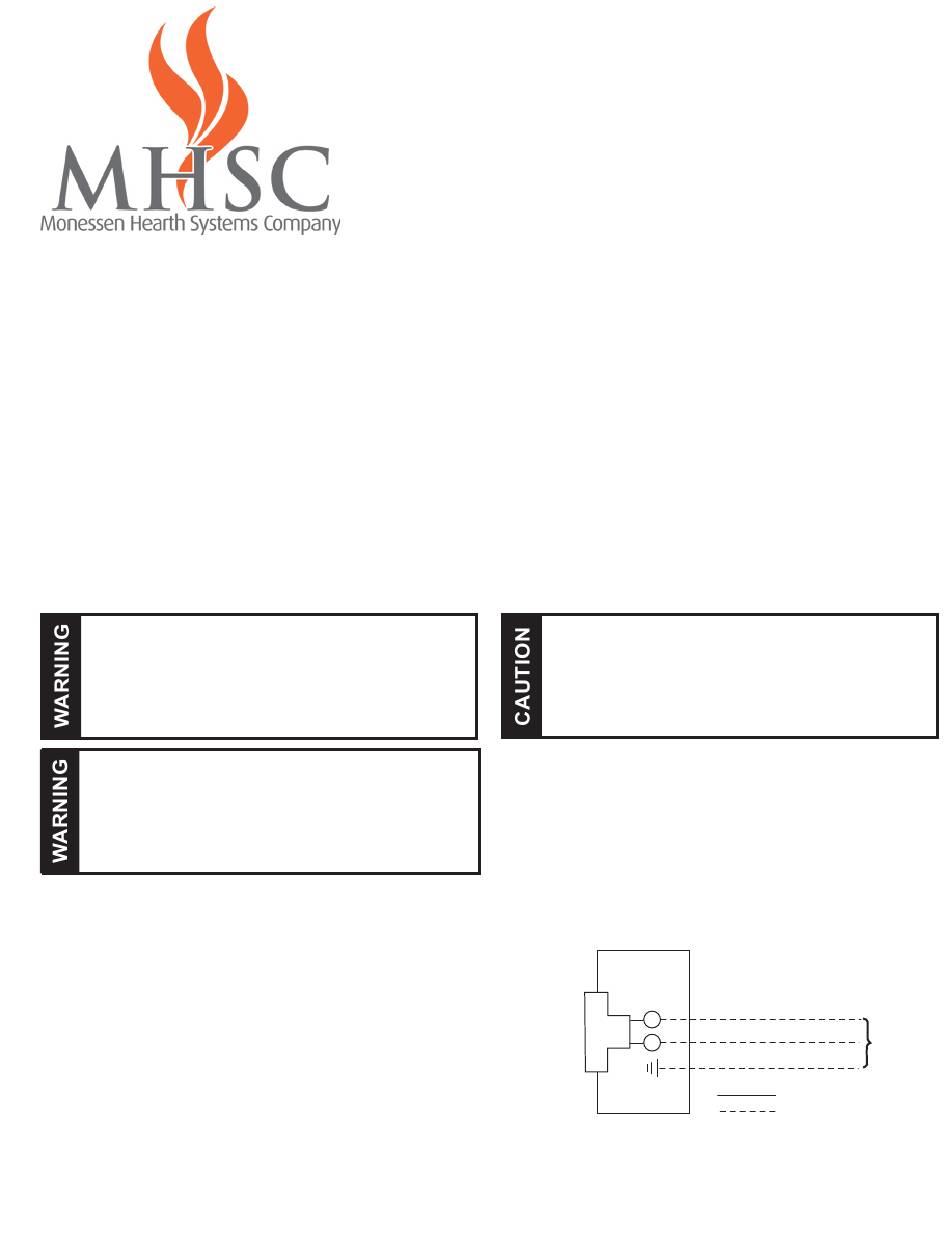

Figure 1
Junction Box Wiring Diagram
Junction Box
FP1912
Junction box wiring
8/08
120V AC
60Hz
Factory Supplied
Not Supplied
73D4166 11/09 Rev. 1
Advertisement
Summary of Contents for MHSC BLOTKSTSC
- Page 1 For Signature Command Systems Before You Start The BLOTKSTSC Blower Kit is designed to be installed with the Signature Command System with the SCSACM A/C control module and is controlled only with the RFSC remote control. NOTE: This instruction sheet is ONLY for models listed below. Carefully inspect the contents for shipping damage.
- Page 2 Installing the Blower 1. Remove the plate located in front of the glass at the bot- tom. 2. Remove rod provided for screen assembly located beneath the cover plate. 3. Rotate the access doors on the right and left side of the glass toward the glass.
- Page 3 Blower Access Plate Figure 4 Access Plate KT1194 Access Plate Gasket Blower KT1194 blower access plate To Blower To A/C Box KT1195 Figure 5 Blowers To A/C Module KT1195 install blower Blower KT1201 Figure 6 - Wiring for One Blower KT1201 73D4166 wiring one blower...
- Page 4 To Junction Box In Fireplace Blower Right Light White Black White Black Black Rear White Burner Solenoid Green Blower Left Connector Pin To Control Box Control Box Figure 8 - Blower Wiring Diagram FP1915 FP1915 AC box wiring 8/08 MHSC 149 Cleveland Drive • Paris, Kentucky 40361 www.mhsc.com 73D4166...
