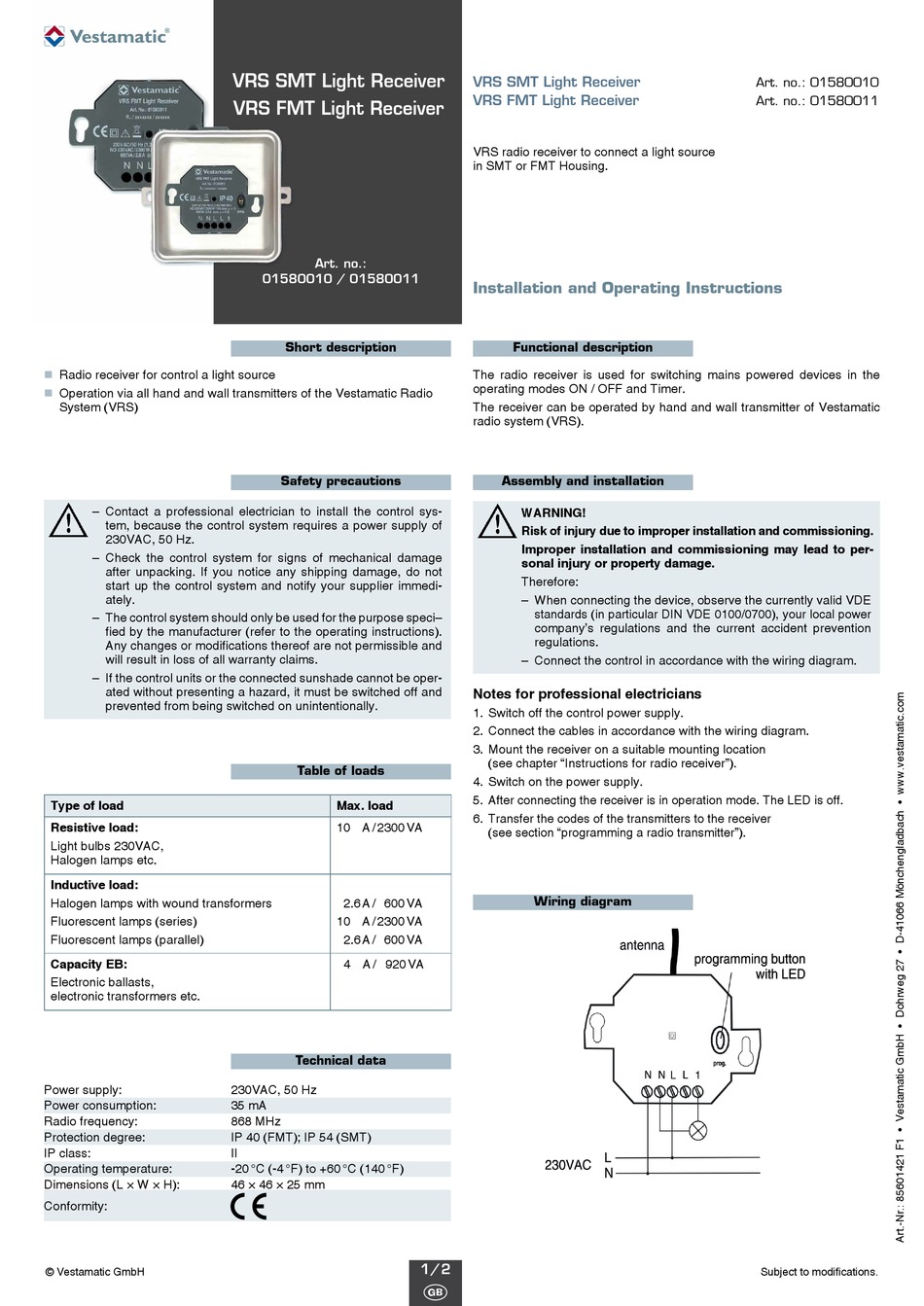

Vestamatic VRS SMT 01580011 Installation And Operating Instructions

„ Radio receiver for control a light source
Operation via all hand and wall transmitters of the Vestamatic Radio
„
System (VRS)
– Contact a professional electrician to install the control sys-
tem, because the control system requires a power supply of
230VAC, 50 Hz.
– Check the control system for signs of mechanical damage
after unpacking. If you notice any shipping damage, do not
start up the control system and notify your supplier immedi-
ately.
– The control system should only be used for the purpose speci–
fied by the manufacturer (refer to the operating instructions).
Any changes or modifications thereof are not permissible and
will result in loss of all warranty claims.
– If the control units or the connected sunshade cannot be oper-
ated without presenting a hazard, it must be switched off and
prevented from being switched on unintentionally.
Type of load
Resistive load:
Light bulbs 230VAC,
Halogen lamps etc.
Inductive load:
Halogen lamps with wound transformers
Fluorescent lamps (series)
Fluorescent lamps (parallel)
Capacity EB:
Electronic ballasts,
electronic transformers etc.
Power supply:
Power consumption:
Radio frequency:
Protection degree:
IP class:
Operating temperature:
Dimensions (L × W × H):
Conformity:
© Vestamatic GmbH
VRS SMT Light Receiver
VRS FMT Light Receiver
Art. no.:
01580010 / 01580011

Short description

Safety precautions

Table of loads

Max. load
10 A / 2300 VA
2.6 A / 600 VA
10 A / 2300 VA
2.6 A / 600 VA
4 A / 920 VA

Technical data

230VAC, 50 Hz
35 mA
868 MHz
IP 40 (FMT); IP 54 (SMT)
II
-20 °C (-4 °F) to +60 °C (140 °F)
46 × 46 × 25 mm p
VRS SMT Light Receiver
VRS FMT Light Receiver
VRS radio receiver to connect a light source
in SMT or FMT Housing.

Installation and Operating Instructions

Functional description

The radio receiver is used for switching mains powered devices in the
operating modes ON / OFF and Timer.
The receiver can be operated by hand and wall transmitter of Vestamatic
radio system (VRS).

Assembly and installation

WARNING!
Risk of injury due to improper installation and commissioning.
Improper installation and commissioning may lead to per-
sonal injury or property damage.
Therefore:
– When connecting the device, observe the currently valid VDE
standards (in particular DIN VDE 0100/0700), your local power
company's regulations and the current accident prevention
regulations.
– Connect the control in accordance with the wiring diagram.

Notes for professional electricians

1. Switch off the control power supply.
2. Connect the cables in accordance with the wiring diagram.
3. Mount the receiver on a suitable mounting location
(see chapter "Instructions for radio receiver").
4. Switch on the power supply.
5. After connecting the receiver is in operation mode. The LED is off.
6. Transfer the codes of the transmitters to the receiver
(see section "programming a radio transmitter").

Wiring diagram

1/2
G
Art. no.: 01580010
Art. no.: 01580011
Subject to modifications.
