Summary of Contents for ring 5W21S8

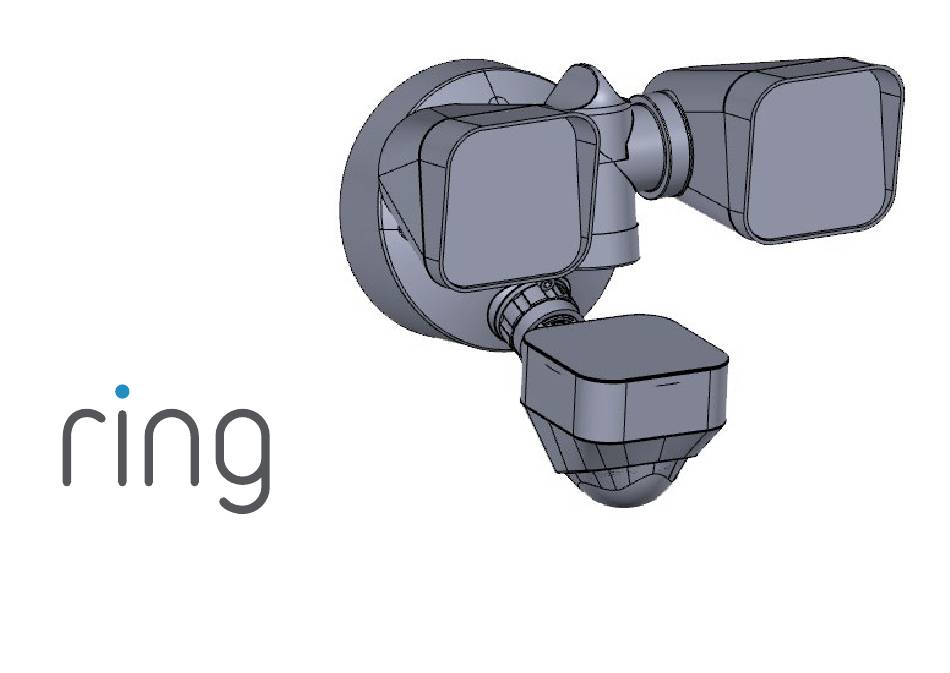

- Page 1 Beams Wired Floodlight...
- Page 2 1. Install your Floodlight. With power turned Center the mounting off at the breaker, plate over the bracket screw the mounting and secure it with a bracket into your screw. electrical box. Be sure to pull the wires through the hole in the mounting plate before screwing it in.
-
Page 3: Connect The Ground Wire
Connect the power Connect the ground wire. wires. Connect the copper wire Use a wire nut to connect from your Floodlight to the the white wire from your green ground screw on Floodlight to the white the plate and the existing (neutral) wire coming ground wire from your from your electrical box. -
Page 4: Mounting Plate
Your Floodlight Slide your Floodlight over the posts on the mounting plate. is versatile. Loosen the large knob Then, secure it with two at the top to adjust the of the long screws. angle of the lights. Once your Floodlight Tighten it again when is mounted, feel free to you find just the right... - Page 5 The app walks you through setting Windows Store To set up your Bridge, up and managing your Floodlight. follow the instructions Download from Search for “Ring” in one of these in the Ring app or Windows Store Bridge user manual. app stores, or visit: ring.com/app...
- Page 6 Got a Spotlight Cam Wired? Set up your Floodlight in the Upgrade it! Ring app. First, turn power off at the breaker. In the app, tap Twist the sensor on your Floodlight Set Up a Device. to the left, then remove it. Do the...
- Page 7 For a list of all our customer support numbers, visit: ring.com/callus To review your warranty coverage, please visit www.ring.com/warranty. Patents: www.ring.com/patents © 2018 Ring LLC or its affiliates. RING, ALWAYS HOME, and all related logos are trademarks of Ring LLC or its affiliates. Last updated: 09/13/18...
- Page 8 Warnings This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reason- able protection against harmful interference in a residential This device complies with part 15 of the FCC Rules and installation.
- Page 9 from that to which the receiver is connected. de moin de 20 cm. Installer les antennes de facon à ce que • Consult the dealer or an experienced radio/TV technician le personnel ne puisse approcher à 20 cm ou moins de la for help.
