ASSEMBLY INSTRUCTIONS

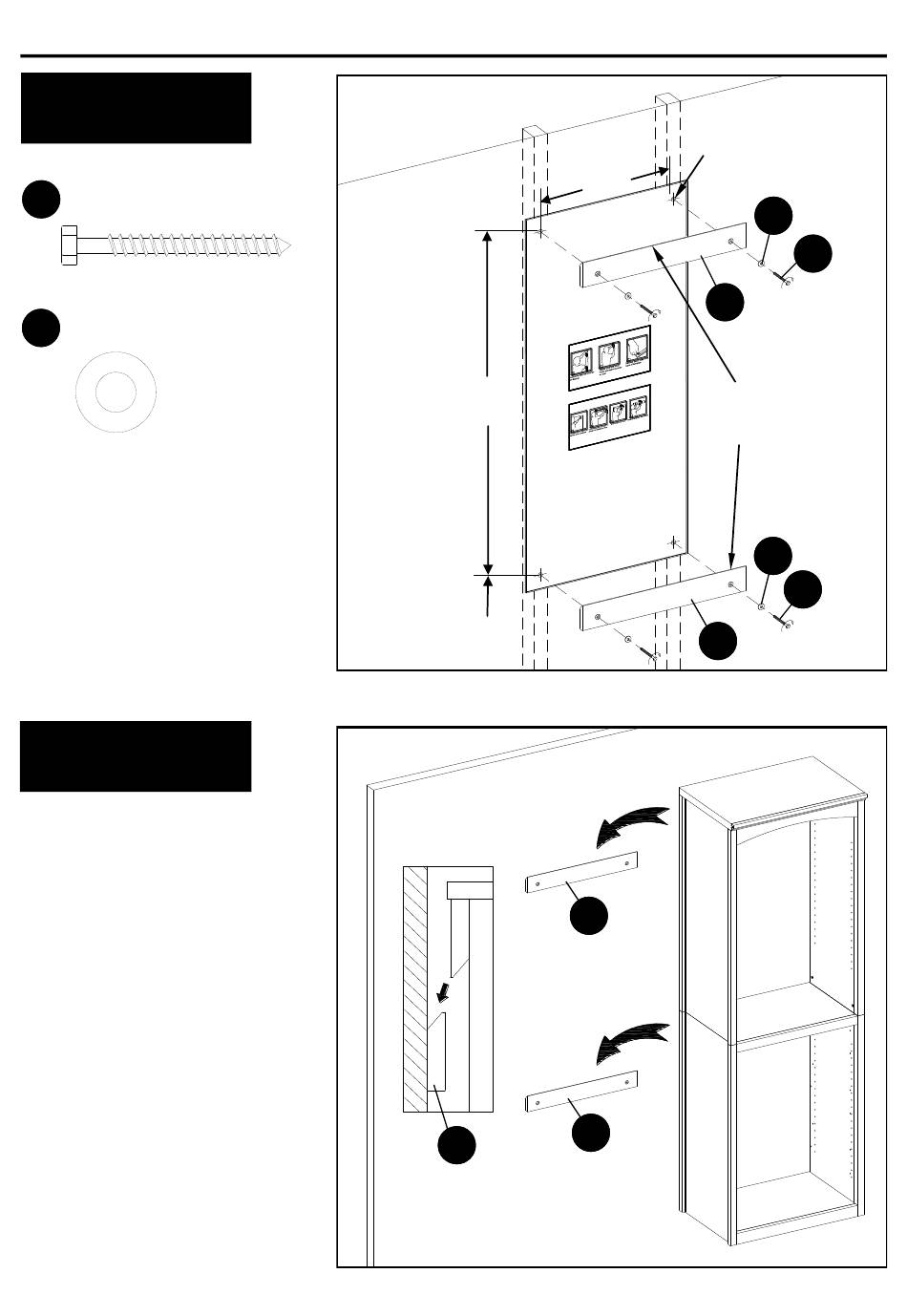

Step 1
Wall Hanging installation
HH M8 x 2-1/2 in. Lag Bolt
x 4
Large Flat Washer
I I
x 4
Position the provided installation
template (N) on desired location
and carefully follow the directions
on template to mark the installing
holes. Make sure the bottom two
installing holes location are more
than 31-1/2 in. from the floor. Drill
holes 2-1/2 in. deep with a 3/16 in.
drill bit at the marked location.
Step 2
Wall Hanging installation
NOTE: TWO OR MORE
PERSONS MUST WORK
TOGETHER TO INSTALL
THE UNIT ONTO THE
WALL.
Wooden Stud
39-1/2 in.
Minimum 31-1/2 in.
M
12
Installing Hole
16 in.
M
Beveled edge
facing up
Installation
Template
M
M
M
I I
HH
II
HH
