VariQuest® Design Center 2300C Unpacking and Setup Instructions

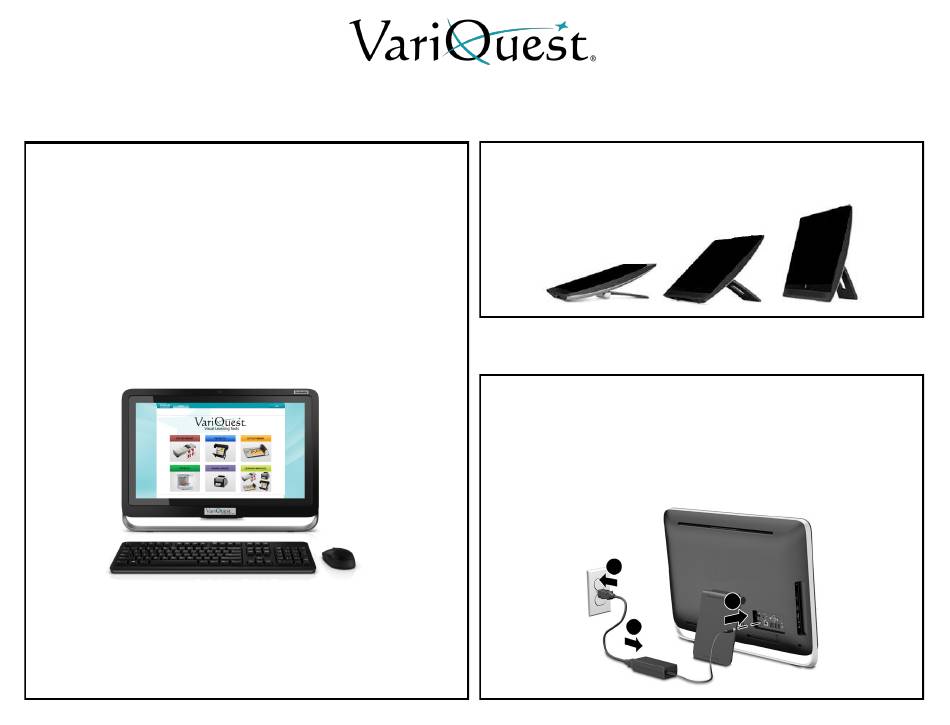

Step 1: Unpack the box and check the contents

The VariQuest Design Center 2300C (DC2300C) and its accessories

are packed in a cardboard carton with foam padding for

protection during shipment. Carefully unpack the system and

keep the packing materials for future use.

Verify the items in the box. If an item is missing or appears to be

damaged, contact your authorized VariQuest Dealer immediately.

Included in the box:

- All-in-one Touch PC

- Power Cord

*The DC2300C is equipped with a touch-enabled screen. It is not

necessary to connect the optional keyboard and mouse in order

to use the VariQuest Design Center Software.

The stand allows you to tilt the Design Center 2300C to your

personal preference.

- Keyboard & Mouse

(optional*)

A. Connect the female end of the power cord into the power

B. Connect the other end of the power cord to an outlet (2).

C. Connect the round end of the power cord to the power supply

(continued on reverse)

supply brick (1).

connector on the back of the DC2300C (3).
