Summary of Contents for JOSAM 60210A Series

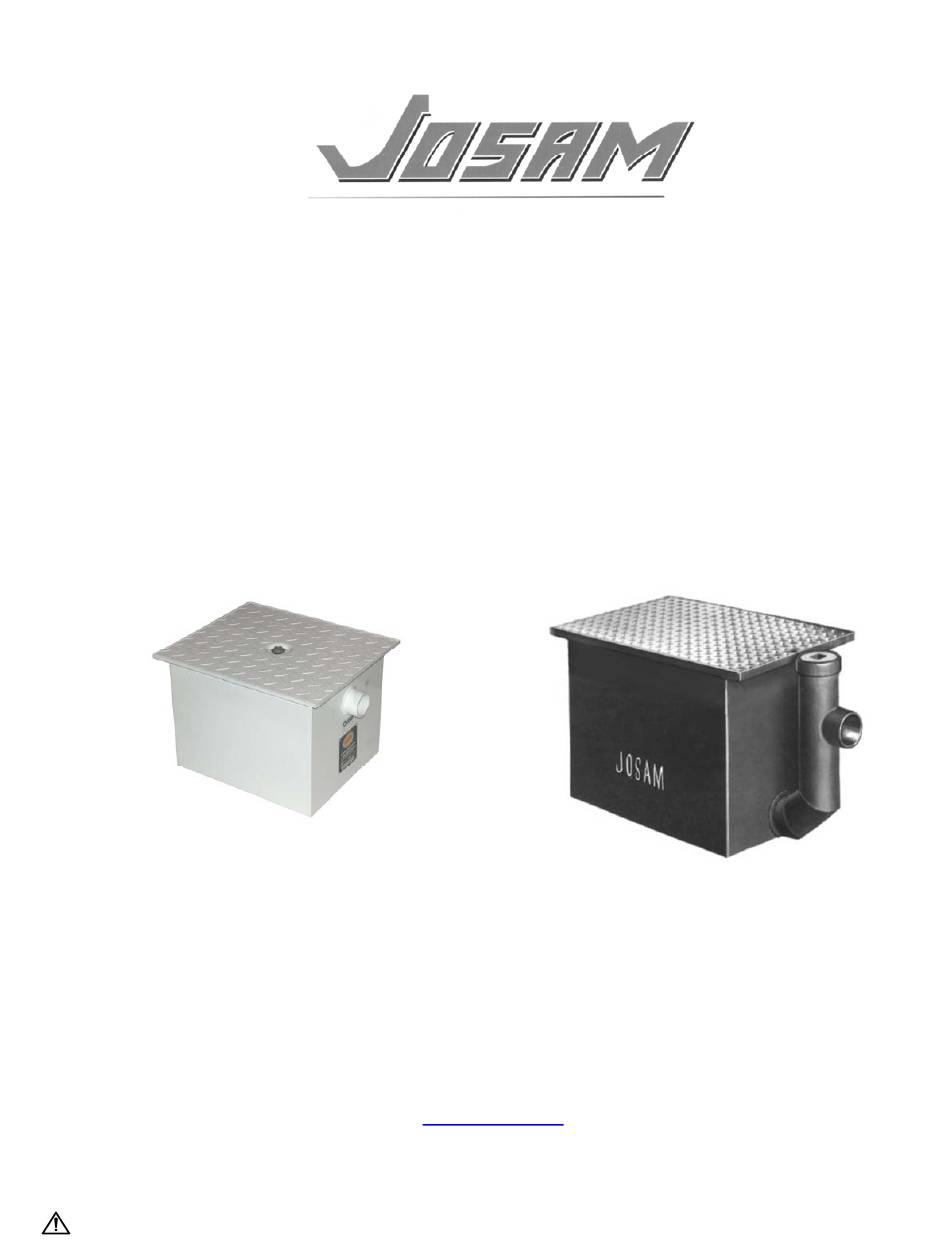

- Page 1 Installation and Operating Procedures Manual Grease Interceptors 60100H SERIES 60210A SERIES Josam Company 525 W.U.S. Hwy 20 Michigan City, IN 46360 1-800-365-6726 www.JOSAM.com REV A 04/15/11 WARNING Cancer and Reproductive Harm - www.p65warnings.ca.gov...
-
Page 2: Table Of Contents
MANUAL INTERCEPTOR Installation and Operating Instructions Table of Contents General Description ....................3 Installation ........................3 Flow Control and Venting ..................4 Grease Removal Maintenance .................5 Periodic Unit Cleaning ....................5 Troubleshooting ......................6 Typical Installations ....................7 Warranty ........................8 Page 2... -
Page 3: General Description
This engineered approach allows for a smaller capacity unit than a gravity-type unit for the same application. Josam interceptors are hydro-mechanical types designed to meet or exceed industry standards PDI-G101 and ASME A112.4.3. -
Page 4: Flow Control And Venting
MANUAL INTERCEPTOR Installation and Operating Instructions Provide cleanouts as necessary in the piping from the fixtures to the interceptor as this area is subject to grease-laden wastewater which can congeal and cause blockages. It is recommended to use a separate grease interceptor for each commercial dishwasher. -
Page 5: Grease Removal Maintenance
MANUAL INTERCEPTOR Installation and Operating Instructions 4.0 Grease Removal Maintenance Regular maintenance is critical to the proper function of a manual grease interceptor. If grease is not removed, separation performance can deteriorate resulting in unacceptable levels of grease being passed downstream. Failure to maintain a grease interceptor has resulted in penalties and fines to the responsible establishment. -
Page 6: Troubleshooting
MANUAL INTERCEPTOR Installation and Operating Instructions 6.0 Troubleshooting Problem Water is backing up into the fixtures Recommended Solution(s) Remove grease build-up from interceptor Remove sludge or solids that may be blocking interceptor outlet Check cleanout and pipes for blockages Problem There is a bad odor coming from the interceptor Recommended Solution(s) Perform a periodic unit cleaning to remove decaying solids... -
Page 7: Typical Installations
MANUAL INTERCEPTOR Installation and Operating Instructions 7.0 Typical Installations ON-FLOOR FLUSH WITH FLOOR RECESSED Page 7... -
Page 8: Warranty
(1) year following the date of shipment. Josam shall not be responsible for any labor charges or any loss, injury or damages whatsoever, including incidental or consequential damages. The sole and exclusive remedy shall be limited to the replacement or repair of the defective goods at the Seller’s discretion.
